AnteSavilt
Member 2
Joined: 13 Feb 2018
Posts: 264
Location: Croatia
|
 Posted: 29/06/2021 18:25 Post subject: WinCC client-server communication |
 |
|
How do you manage to maintain the WinCC client-server communication when a firewall is switched on?
https://support.industry.siemens.com /cs/document/109798700/
By default, the firewall blocks the client and server from communicating with each other across subnet boundaries for security reasons.
Problem
The WinCC client-server communication between two PCs in Windows 7 or Windows 10 always works only as long as the firewall is switched off. Running through the Security Controller does not change the behavior.
If you open "Windows Firewall > Advanced Settings" in the Windows Control Panel and select one of the groups whose name starts with "SIMATIC..." ("SIMATIC Communication Services", for example) under " Inbound Rules", the entry "These IP addresses" is selected in the "Remote IP address" category in the "Scope" tab of the properties dialog for this group, and "Local subnet" is specified in the input field.
Fig. 01
Solution
Starting with Windows 7, Windows Firewall is also equipped with rules for incoming connections. For security reasons, the firewalls are configured by default to require that the communication partner be on the same local subnet for SIMATIC connections.
To bypass this restriction, enter the IP addresses of the respective enabled communication partners for all PCs involved in the communication in the above dialog using "Add...".
Note
It is possible to export the IP address unlocked in this way and import it on another computer. This saves you having to make manual entries.
For a detailed description of the procedure, refer to the manual "WinCC V7.5 SP1: Configurations and Communication" in the section entitled
https://support.industry.siemens.com/cs/mdm/109773067
https://support.industry.siemens.com/cs/attachments/109773067/WinCC_Communication_en-US_en-US.pdf |
|
| Back to top |
|
 |
renzi
Junior
Joined: 14 Nov 2017
Posts: 12
|
| Posted: 07/07/2021 09:56 Post subject: |
|
|
Updates for WinCC V7.5 SP2 and WinCC V7.5 SP2 ASIA
https://support.industry.siemens.com/cs/document/109793460/updates-for-wincc-v7-5-sp2-and-wincc-v7-5-sp2-asia |
|
| Back to top |
|
|
AnteSavilt
Member 2
Joined: 13 Feb 2018
Posts: 264
Location: Croatia
|
| Posted: 08/07/2021 16:28 Post subject: Update 1 for WinCC/Audit V7.5 SP2: |
|
|
Update 1 for WinCC/Audit V7.5 SP2:
https://support.industry.siemens.com/cs/document/109800024/updates-for-simatic-wincc-audit-v7-5-sp2
Installation Prerequisite:
SIMATIC WinCC V7.5 SP2 minimum Update 4 and SIMATIC WinCC/Audit V7.5 SP2.
Check first what WinCC components are installed on the computer. This information can be found in the Windows "Control Panel" under "Add or Remove Programs".
The updates are cumulative and contain all previous updates.
Update 1 for WinCC/Audit V7.5 SP2:
https://support.industry.siemens.com/cs/attachments/109800024/SIMATIC_Audit_V75_SP2_Upd1.exe
https://support.industry.siemens.com/cs/attachments/109800024/SIMATIC_Audit_V75_SP2_Upd1.001 |
|
| Back to top |
|
|
AnteSavilt
Member 2
Joined: 13 Feb 2018
Posts: 264
Location: Croatia
|
| Posted: 19/07/2021 18:30 Post subject: How can you configure multilingual texts in process screens? |
|
|
How can you configure multilingual texts in process screens?
https://support.industry.siemens.com/cs/document/29419870/ |
|
| Back to top |
|
|
valz
Member 3
Joined: 26 Jul 2015
Posts: 771
|
| Posted: 12/08/2021 14:19 Post subject: How do you delete the DCF file of your WinCC project? |
|
|
How do you delete the DCF file of your WinCC project?
https://support.industry.siemens.com/cs/document/109763043/how-do-you-delete-the-dcf-file-of-your-wincc-project-?dti=0&lc=en-NL
The DCF file contains among other things server/client and redundancy information. You can delete this file to clear any possible inconsistencies in the file. As soon as you open the WinCC Explorer again the DCF is created anew.
Problem description
An inconsistent DCF file can have various different undesired effects on your project (for example: WinCC editors are no longer displayed or data connection to the server is not possible).
Solution
Proceed as follows to delete the DCF file:
Multi-user projects:
Close WinCC and save your project.
Open the WinCC Explorer.
Delete the generated/loaded server packages from the WinCC editor "Serverdata".
If you are using redundancy, open the Redundancy editor and disable the setting "Enable redundancy". Confirm with "OK".
Close the project and close the WinCC Explorer.
Then delete all the files with the file name extension "dcf" in your WinCC project directory. Also delete the older copies of the DCF file with the file name extension "dc*".
Open the WinCC Explorer again. The deleted files are created anew.
If you are using redundancy, open the Redundancy editor and enable the setting "Enable redundancy". Confirm with "OK".
Generate/load the server packages anew in the WinCC editor "Serverdata".
Configure the preferred server and standard server anew in the WinCC Explorer.
Close the project and close the WinCC Explorer.
Open the WinCC Explorer again and start the WinCC Runtime.
Single-station projects:
With single-station projects you omit Steps 3 / 9 and 10.
Integrated projects:
With integrated projects you make the changes on the Engineering Station. You have to execute Step 9 in the SIMATIC Manager. After making the changes you have to reload the server/clients.
Create the DCF file anew
How to confecționate a DCF file is described in the WinCC system manual in the chapter entitled "General Information about WinCC and Configuration" under the block title "Create a DCF File".
https://support.industry.siemens.com/cs/ww/en/view/109760740/115424384907 |
|
| Back to top |
|
|
valz
Member 3
Joined: 26 Jul 2015
Posts: 771
|
| Posted: 18/11/2021 12:51 Post subject: Update 6 WinCC V7.5 SP2 and WinCC V7.5 SP2 ASIA |
|
|
Updates for WinCC V7.5 SP2 and WinCC V7.5 SP2 ASIA
https://support.industry.siemens.com/cs/document/109793460/
Update 6 (11/2021)
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Update6_Readme.pdf
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd6.exe
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd6.001 |
|
| Back to top |
|
|
valz
Member 3
Joined: 26 Jul 2015
Posts: 771
|
| Posted: 15/12/2021 17:13 Post subject: SIMATIC Energy Suite visualization for WinCC V7 |
|
|
SIMATIC Energy Suite visualization for WinCC V7
https://support.industry.siemens.com/cs/document/109739775/
The Energy Suite product contains visualizations for:
Comfort Panels
WinCC Runtime Advanced
WinCC Runtime Professional
This application example provides you with an example visualization for WinCC V7.
WinCC V7.5 SP2 communicates directly with the S7 controller running the load management function.
The WinCC V7.5 SP2 example project contains control screens, scripts and all relevant data that you need for your visualization.
Download
https://support.industry.siemens.com/cs/attachments/109739775/109739775_EnS-LMGT_WinCCV7.5SP2_Visu_en.pdf
https://support.industry.siemens.com/cs/attachments/109739775/109739775_EnS-LMGT_WinCCV7.5SP2_Visu_TemplateProject_V1.zip
https://support.industry.siemens.com/cs/attachments/109739775/109739775_EnS-LMGT_WinCCV7.5SP2_Visu_Relevant_Import_Data_V1.zip
https://support.industry.siemens.com/cs/attachments/109739775/109739775_EnS-LMGT_WinCCV7.5SP2_Demo-Visu_V1.zip
https://ulozto.net/tamhle/zjnxCTtkTlGS/
[URL=https://www.file-upload.net/download-14781300/109739775_EnS-LMGT_WinCCV7.5SP2_Visu_en.pdf.html]109739775_EnS-LMGT_WinCCV7.5SP2_Visu_en.pdf[/URL]
[URL=https://www.file-upload.net/download-14781301/109739775_EnS-LMGT_WinCCV7.5SP2_Visu_TemplateProject_V1.zip.html]109739775_EnS-LMGT_WinCCV7.5SP2_Visu_TemplateProject_V1.zip[/URL]
[URL=https://www.file-upload.net/download-14781299/109739775_EnS-LMGT_WinCCV7.5SP2_Visu_Relevant_Import_Data_V1.zip.html]109739775_EnS-LMGT_WinCCV7.5SP2_Visu_Relevant_Import_Data_V1.zip[/URL]
[URL=https://www.file-upload.net/download-14781305/109739775_EnS-LMGT_WinCCV7.5SP2_Demo-Visu_V1.zip.html]109739775_EnS-LMGT_WinCCV7.5SP2_Demo-Visu_V1.zip[/URL] |
|
| Back to top |
|
|
valz
Member 3
Joined: 26 Jul 2015
Posts: 771
|
| Posted: 12/07/2022 12:47 Post subject: Update 9 WinCC V7.5 SP2 and WinCC V7.5 SP2 ASIA |
|
|
Update 9 WinCC V7.5 SP2 and WinCC V7.5 SP2 ASIA
https://support.industry.siemens.com/cs/document/109793460/
Download
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd9.exe
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd9.001
https://ulozto.net/tamhle/42izXpMe4vwX/
https://anonfiles.com/p634a9x3ya/WinCC_V75_SP2_Upd9_exe
https://anonfiles.com/dcOda0x0y3/WinCC_V75_SP2_Upd9_001 |
|
| Back to top |
|
|
chianta
Junior
Joined: 13 Dec 2019
Posts: 1
|
| Posted: 08/08/2022 14:01 Post subject: WinCC Audit 7.5 SP2 |
|
|
Hello,
where I can find WinCC Audit 7.5 SP2?
Thanks |
|
| Back to top |
|
|
AnnSeng
Junior
Joined: 08 Aug 2022
Posts: 2
|
| Posted: 08/08/2022 16:16 Post subject: Re: WinCC Audit 7.5 SP2 |
|
|
| chianta wrote: | Hello,
where I can find WinCC Audit 7.5 SP2?
Thanks |
Find in pcs7 9.0 sp3 9.1 0r 9.1 sp1
http://plc.myforum.ro/pcs7-v80-81-82-90-91-vt1192.html?start=405
then you can install update if you want
Update 1 for WinCC/Audit V7.5 SP2:
https://support.industry.siemens.com/cs/document/109800024/updates-for-simatic-wincc-audit-v7-5-sp2 |
|
| Back to top |
|
|
valz
Member 3
Joined: 26 Jul 2015
Posts: 771
|
| Posted: 07/11/2022 16:28 Post subject: Update 10 (11/2022) WinCC V7.5 SP2 and WinCC V7.5 SP2 ASIA |
|
|
Update 10 (11/2022) WinCC V7.5 SP2 and WinCC V7.5 SP2 ASIA
https://support.industry.siemens.com/cs/document/109793460/
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd10.exe
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd10.001 |
|
| Back to top |
|
|
picasso2489
Junior
Joined: 01 Sep 2018
Posts: 1
|
| Posted: 01/01/2023 00:03 Post subject: |
|
|
Update 11 für/for:
Updates für/for WinCC V7.5 SP2 und/and WinCC V7.5 SP2 ASIA
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Update11_Readme.pdf
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd11.exe
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd11.001 |
|
| Back to top |
|
|
valz
Member 3
Joined: 26 Jul 2015
Posts: 771
|
| Posted: 06/02/2023 12:48 Post subject: OMAC Food & Beverage Industry - Application Example |
|
|

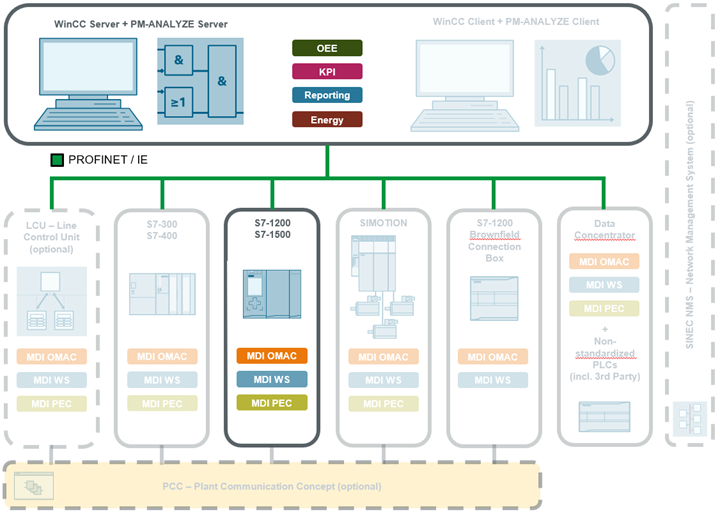

Line Integration Concept for the Food & Beverage Industry - Application Example
https://support.industry.siemens.com/cs/document/100744248/
To provide data for the application example, a TIA V16 project is included that simulates machine data for a plenar of 15 machines which are separated into two filling lines. The following illustration highlights the architectures of the application example:
Required software/hardware
WinCC V7.5 SP2 Update 10 or later
PM-ANALYZE V10 or later
SIMATIC S7-1516 or SIMATIC S7-PLCSIM Advanced V3.0 or later
Note
You will only need the file "100744248_LineIntegrationFunctionBlocks_Assembly_2.0.0.1_SourceCode.zip " if you change the status tip in PM-SERVER and if you want to change the implementation in the LineIntegrationFunctionBlocks.dll inside PM-SERVER (Both files are contained in the Line Integration Application Example download file).
For changing the implementation, a C#-compatible editor like Microsoft Visual Studio and the according programming knowledge is recommended!
Download
https://support.industry.siemens.com/cs/attachments/100744248/100744248_Line_Integration_WCCV75_en.pdf
https://support.industry.siemens.com/cs/attachments/100744248/100744248_LineIntegrationConceptV4_ApplicationExample.zip
https://ulozto.net/tamhle/I1dPPrPSuoHq/
[URL=https://www.file-upload.net/download-15090569/100744248_LineIntegrationConceptV4_ApplicationExample.zip.html]100744248_LineIntegrationConceptV4_ApplicationExample.zip[/URL]
[URL=https://www.file-upload.net/download-15090568/100744248_Line_Integration_WCCV75_en.pdf.html]100744248_Line_Integration_WCCV75_en.pdf[/URL]
Line Integration Concept for the Food & Beverage Industry (Overview)
https://support.industry.siemens.com/cs/document/109483779/ |
|
| Back to top |
|
|
mamiko
Member 2
Joined: 25 Dec 2017
Posts: 420
|
| Posted: 20/02/2023 19:02 Post subject: Update 12 (02/2023) WinCC V7.5 SP2 und/and WinCC V7.5 SP2 AS |
|
|
Update 12 (02/2023) WinCC V7.5 SP2 und/and WinCC V7.5 SP2 ASIA
https://support.industry.siemens.com/cs/document/109793460/
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd12.exe
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd12.001 |
|
| Back to top |
|
|
mamiko
Member 2
Joined: 25 Dec 2017
Posts: 420
|
| Posted: 02/05/2023 19:51 Post subject: Update 13 (05/2023) WinCC V7.5 SP2 und/and WinCC V7.5 SP2 AS |
|
|
Update 13 (05/2023) WinCC V7.5 SP2 und/and WinCC V7.5 SP2 ASIA
Update 13 also includes optimizations for the package WinCC/Audit and WinCC/Calendar Options.
https://support.industry.siemens.com/cs/document/109793460/
Download
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Update13_Readme.pdf
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd13.exe
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd13.001 |
|
| Back to top |
|
|
mamiko
Member 2
Joined: 25 Dec 2017
Posts: 420
|
| Posted: 28/06/2023 19:59 Post subject: WinCC/Audit V7.5 SP2 |
|
|
Update1 for SIMATIC WinCC/Audit V7.5 SP2
https://support.industry.siemens.com/cs/document/109800024/
Installation Prerequisite:
SIMATIC WinCC V7.5 SP2 minimum Update 4 and SIMATIC WinCC/Audit V7.5 SP2.
Check first what WinCC components are installed on the computer. This information can be found in the Windows "Control Panel" under "Add or Remove Programs".
The updates are cumulative and contain all previous updates.
Download Update 1 for WinCC/Audit V7.5 SP2:
https://support.industry.siemens.com/cs/attachments/109800024/SIMATIC_Audit_V75_SP2_Upd1.exe
https://support.industry.siemens.com/cs/attachments/109800024/SIMATIC_Audit_V75_SP2_Upd1.001
https://ulozto.net/tamhle/6TiUeBBsfcvf/
[URL=https://www.file-upload.net/download-15162591/SIMATIC_Audit_V75_SP2_Upd1.001.html]SIMATIC_Audit_V75_SP2_Upd1.001[/URL]
[URL=https://www.file-upload.net/download-15162590/SIMATIC_Audit_V75_SP2_Upd1.exe.html]SIMATIC_Audit_V75_SP2_Upd1.exe[/URL] |
|
| Back to top |
|
|
mamiko
Member 2
Joined: 25 Dec 2017
Posts: 420
|
| Posted: 07/08/2023 16:50 Post subject: Update 14 for WinCC V7.5 SP2: |
|
|
Update 14 (08/2023)
https://support.industry.siemens.com/cs/document/109793460/
Update 14 for WinCC V7.5 SP2:
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd14.exe
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd14.001
Updates for SIMATIC WinCC/Industrial Data Bridge
https://support.industry.siemens.com/cs/document/109793460/
Update 1 for WinCC/Industrail Data Bridge V7.5 SP2:
https://support.industry.siemens.com/cs/attachments/109793460/SIMATIC_IndustrialDataBridge_V75_SP2_Upd1.exe
https://support.industry.siemens.com/cs/attachments/109793460/SIMATIC_IndustrialDataBridge_V75_SP2_Upd1.001 |
|
| Back to top |
|
|
Blackpearl
Junior
Joined: 26 May 2023
Posts: 9
|

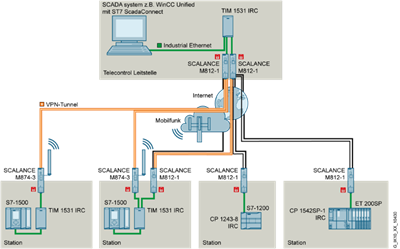

| Posted: 16/10/2023 23:16 Post subject: SIMATIC Telecontrol |
|
|
| Could someone share the SIMATIC Telecontrol installer for WinCC V7.5 SP2? |
|
| Back to top |
|
|
mamiko
Member 2
Joined: 25 Dec 2017
Posts: 420
|
| Posted: 17/10/2023 18:18 Post subject: Software ST7 ScadaConnect V1.0 |
|
|
Software ST7 ScadaConnect V1.0
https://support.industry.siemens.com/cs/document/109817769/
The ST7 ScadaConnect control center software enables the connection of remote terminal units (RTUs) with ST7 protocol on SCADA systems that function as an OPC UA client.
Telecontrol stations based on all common SIMATIC controllers are supported:
S7-1200 with CP 1243-8 IRC
ET 200SP with CP 1542SP-1 IRC
S7-1500 with TIM 1531 IRC
S7-300 with TIM 1531 IRC, TIM 3V-IE, TIM 3V-IE Advanced
S7-400 with TIM 1531 IRC, TIM 4R-IE
RTU3000C via TIM 1531 IRC
Download ST7 ScadaConnect V1.0
https://support.industry.siemens.com/cs/attachments/109817769/OSS_ST7scadaConn_99.pdf
https://support.industry.siemens.com/cs/attachments/109817769/ST7_ScadaConnect_V1_0_0.exe
https://ulozto.net/file/nHitmlCgqr9Y/st7-scadaconnect-v1-0-0-exe
[URL=https://www.file-upload.net/download-15205063/ST7_ScadaConnect_V1_0_0.exe.html]ST7_ScadaConnect_V1_0_0.exe[/URL] |
|
| Back to top |
|
|
Blackpearl
Junior
Joined: 26 May 2023
Posts: 9
|
| Posted: 17/10/2023 21:10 Post subject: |
|
|
The software I require is the following: https://support.industry.siemens.com/cs/document/109814522/delivery-release-simatic-telecontrol-for-wincc-v7-5-and-wincc-v8-0?dti=0&lc=en-PE
Someone will have it? |
|
| Back to top |
|
|
Faisal Ahmed
Junior
Joined: 27 Oct 2023
Posts: 5
|
| Posted: 24/11/2023 21:49 Post subject: |
|
|
I need also this.
Thank you  |
|
| Back to top |
|
|
mamiko
Member 2
Joined: 25 Dec 2017
Posts: 420
|
| Posted: 16/02/2024 19:18 Post subject: Update 16 for WinCC V7.5 SP2 |
|
|
Update 16 for WinCC V7.5 SP2
https://support.industry.siemens.com/cs/document/109793460/
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd16.exe
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd16.001 |
|
| Back to top |
|
|
mamiko
Member 2
Joined: 25 Dec 2017
Posts: 420
|
| Posted: 07/08/2024 19:02 Post subject: Update 18 for WinCC V7.5 SP2: |
|
|
Update 18 for WinCC V7.5 SP2:
https://support.industry.siemens.com/cs/document/109793460/
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd18.exe
https://support.industry.siemens.com/cs/attachments/109793460/WinCC_V75_SP2_Upd18.001 |
|
| Back to top |
|
|
luxiiito
Junior
Joined: 11 Dec 2018
Posts: 4
|
| Posted: 03/10/2024 19:25 Post subject: Re: WINCC 7.5 SP1 |
|
|
| jokfem2016 wrote: | Download the EXE. WINCC 7.5 SP1
| Code: | | https://mega.nz/#!E7RHkILQ!8xZ9_X94X5QMuEw8zObKoql5upjqPwnme9czCxCHtwM |
|
hello, you can reupload the .exe of wincc v7.5 SP1 (only the service pack 1)
Best regards |
|
| Back to top |
|
|
mamiko
Member 2
Joined: 25 Dec 2017
Posts: 420
|
| Posted: 04/10/2024 23:21 Post subject: Re: WINCC 7.5 SP1 |
|
|
| luxiiito wrote: | | jokfem2016 wrote: | Download the EXE. WINCC 7.5 SP1
| Code: | | https://mega.nz/#!E7RHkILQ!8xZ9_X94X5QMuEw8zObKoql5upjqPwnme9czCxCHtwM |
|
hello, you can reupload the .exe of wincc v7.5 SP1 (only the service pack 1)
Best regards |
Download Url File name
https://dfiles.com/files/du25mt1lt SIMATIC_IndustrialDataBridge_V7.5_SP1.iso
https://dfiles.com/files/uila9zsxb WinCC_V751_Upd5.001
https://dfiles.com/files/52275ks2j WinCC_V751_Upd5.exe
https://dfiles.com/files/io9rp6iq9 WinCC_V7_5_SP1.part01.rar
https://dfiles.com/files/rlkf9yijk WinCC_V7_5_SP1.part02.rar
https://dfiles.com/files/p4nrlpx7l WinCC_V7_5_SP1.part03.rar
https://dfiles.com/files/yi8l935l7 WinCC_V7_5_SP1.part04.rar
https://dfiles.com/files/f1e4xar5z WinCC_V7_5_SP1.part05.rar
https://dfiles.com/files/qcm4ot1en WinCC_V7_5_SP1.part06.rar
https://dfiles.com/files/bh3fzybej WinCC_V7_5_SP1.part07.rar
https://dfiles.com/files/3gm8aq27g WinCC_V7_5_SP1.part08.rar
https://dfiles.com/files/3soeqqaso WinCC_V7_5_SP1.part09.rar
https://dfiles.com/files/la7ann7lx WinCC_V7_5_SP1.part10.rar |
|
| Back to top |
|
|
vitaly
Junior
Joined: 07 Oct 2024
Posts: 1
|
| Posted: 07/10/2024 09:31 Post subject: WINCC 7.5 SP2 - reupload |
|
|
Hello, can someone reupload WINCC 7.5 SP2 .exe? All available links are inactive.... :(
Best regards :-) |
|
| Back to top |
|
|
sekvdbai
Junior
Joined: 15 Mar 2024
Posts: 2
|
| Posted: 07/10/2024 18:52 Post subject: Re: WINCC 7.5 SP2 - reupload |
|
|
| vitaly wrote: | Hello, can someone reupload WINCC 7.5 SP2 .exe? All available links are inactive.... :(
Best regards |
try this
Download Url File name
https://dfiles.com/files/oyr8iebei WinCC_V7_5_SP2.part01.rar
https://dfiles.com/files/qbbufm5ip WinCC_V7_5_SP2.part02.rar
https://dfiles.com/files/i44a09xy4 WinCC_V7_5_SP2.part03.rar
https://dfiles.com/files/q3dz8jg07 WinCC_V7_5_SP2.part04.rar
https://dfiles.com/files/inn0yy05q WinCC_V7_5_SP2.part05.rar
https://dfiles.com/files/2ewsekhw3 WinCC_V7_5_SP2.part06.rar
https://dfiles.com/files/q2ksva4vr WinCC_V7_5_SP2.part07.rar |
|
| Back to top |
|
|
xeyicav671
Junior
Joined: 13 Oct 2024
Posts: 3
|
| Posted: 13/10/2024 21:11 Post subject: Re: WINCC 7.5 SP2 - reupload |
|
|
Hi! Do you have active link for WinCC Audit v7.5 SP2?
PS: I have tried downloading the PCS7 V9.0 and 9.1 but there isn't a WinCC Audit installation file. |
|
| Back to top |
|
|
frieesdifflge
Junior
Joined: 11 Jun 2024
Posts: 1
|
| Posted: 14/10/2024 19:44 Post subject: Re: WINCC 7.5 SP2 - reupload |
|
|
| xeyicav671 wrote: | Hi! Do you have active link for WinCC Audit v7.5 SP2?
PS: I have tried downloading the PCS7 V9.0 and 9.1 but there isn't a WinCC Audit installation file. |
Download Url File name
https://dfiles.com/files/dv6mcledy SIMATIC_Audit_V75_SP2_Upd1.rar |
|
| Back to top |
|
|
xeyicav671
Junior
Joined: 13 Oct 2024
Posts: 3
|
| Posted: 14/10/2024 21:25 Post subject: Re: WINCC 7.5 SP2 - reupload |
|
|
| frieesdifflge wrote: | | xeyicav671 wrote: | Hi! Do you have active link for WinCC Audit v7.5 SP2?
PS: I have tried downloading the PCS7 V9.0 and 9.1 but there isn't a WinCC Audit installation file. |
Download Url File name
https://dfiles.com/files/dv6mcledy SIMATIC_Audit_V75_SP2_Upd1.rar |
Thank you, but is it going to work, considering that this is an update file?
Isn't there a main file, e.g. SIMATIC_Audit_V75_SP2, that needs to be installed? |
|
| Back to top |
|
|
|
FAQ
Search
Memberlist
Usergroups
Register
Profile
Log in to check your private messages
Log in
