 Posted: 05/02/2020 13:28 Post subject: User calibration of SIMATIC analog modules |
 |
|
User calibration of SIMATIC analog modules
https://support.industry.siemens.com/cs/document/109768094/user-calibration-of-simatic-analog-modules
The application example describes the steps for calibration of analog modules via SIMATIC HMI devices.
The user calibration is controlled by the data sets (DS). The example describes the method to use data sets. The library provides a function block for S7-CPUs and a template for SIMATIC HMI devices to implement the function in the user program.

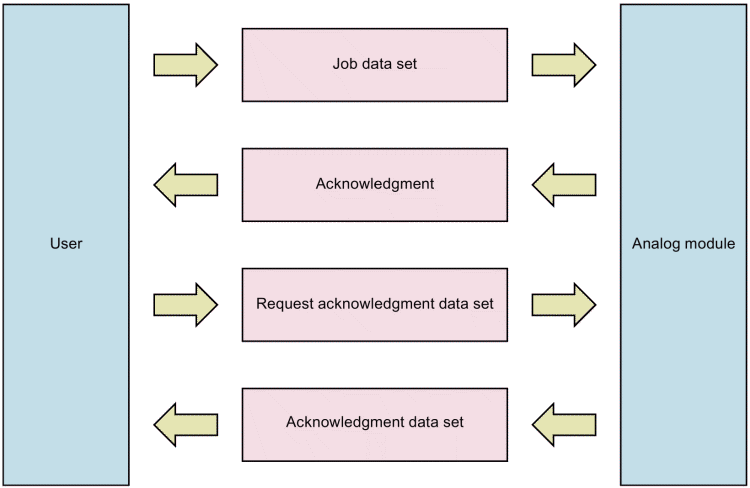

Figure 1 shows the steps required for the user calibration of an instruction to the analog module.
Documentation and Project
https://support.industry.siemens.com/cs/attachments/109768094/109768094_AIAQcalibration_DOC_V20_en.pdf
https://support.industry.siemens.com/cs/attachments/109768094/109768094_AIAQcalibration_LIB_V20.zip
https://support.industry.siemens.com/cs/attachments/109768094/109768094_AIAQcalibration_PROJ_V20.zip
https://ulozto.net/tam/_h9MoMjPb1Kkm |
|
