 Posted: 24/02/2020 12:51 Post subject: upload program from AllenBradlly motion controller 1394 |
 |
|
Hi
I have problem with 1394 motion controller.
1394 Digital AC Multi-Axis
according to manual I have to re-download program to controller. I don't have autentic program but we have two same machine. I want to upload program from correct machine and download it to faulted machine.
Is it possible to upload hole program from controller?
I can online with controller but I couldn't upload program from controller.
how I can upload hole program from controller? |
|
| Back to top |
|
 |
rsofronici
Junior
Joined: 29 Jan 2015
Posts: 6
|
| Posted: 25/03/2020 09:42 Post subject: Re: upload program from AllenBradlly motion controller 1394 |
|
|
| akbar_torkashwand wrote: | Hi
I have problem with 1394 motion controller.
1394 Digital AC Multi-Axis
according to manual I have to re-download program to controller. I don't have autentic program but we have two same machine. I want to upload program from correct machine and download it to faulted machine.
Is it possible to upload hole program from controller?
I can online with controller but I couldn't upload program from controller.
how I can upload hole program from controller? |
What is your controller? SLC500? Logix5000?
Connect to the PLC and once online Upload from PLC to PC. Once you have the program uploaded to the PC save it and make any necessary changes to fit the configuration of the PLC and 1394 system then Download to the new PLC and run. |
|
| Back to top |
|
|
akbar_torkashwand
Member
Joined: 09 Nov 2018
Posts: 228
|
| Posted: 25/03/2020 10:00 Post subject: Re: upload program from AllenBradlly motion controller 1394 |
|
|
| rsofronici wrote: | | akbar_torkashwand wrote: | Hi
I have problem with 1394 motion controller.
1394 Digital AC Multi-Axis
according to manual I have to re-download program to controller. I don't have original program but we have two same machine. I want to upload program from correct machine and download it to faulted machine.
Is it possible to upload hole program from controller?
I can online with controller but I couldn't upload program from controller.
how I can upload hole program from controller? |
What is your controller? SLC500? Logix5000?
Connect to the PLC and once online Upload from PLC to PC. Once you have the program uploaded to the PC save it and make any necessary changes to fit the configuration of the PLC and 1394 system then Download to the new PLC and run. |
Thanks . but it isn't PLC. it's motion controller. it is very difficultly more than PLC. do you have any experience about AllenBradlly motion controller 1394? if yes, please help me. |
|
| Back to top |
|
|
rsofronici
Junior
Joined: 29 Jan 2015
Posts: 6
|
| Posted: 25/03/2020 10:17 Post subject: |
|
|
What is your systems configuration? You should have a 1394-SJTxx (power supply and axis controller/IMC), 1394-AMxx ( servo drive(s).
Are you connecting to the IMC via serial or SERCOS?
What program are you using to connect to the IMC? |
|
| Back to top |
|
|
akbar_torkashwand
Member
Joined: 09 Nov 2018
Posts: 228
|
| Posted: 25/03/2020 10:50 Post subject: |
|
|
| rsofronici wrote: | What is your systems configuration? You should have a 1394-SJTxx (power supply and axis controller/IMC), 1394-AMxx ( servo drive(s).
Are you connecting to the IMC via serial or SERCOS?
What program are you using to connect to the IMC? |
thanks so much.

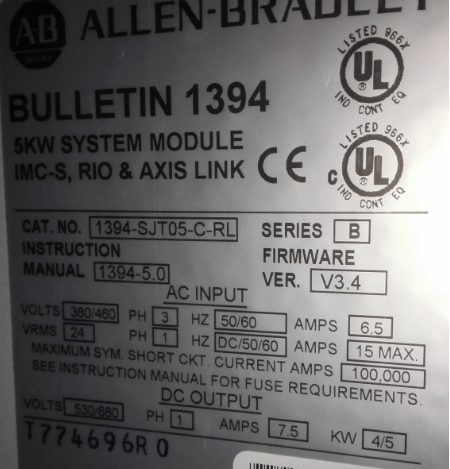

I have a 1394-SJT05 (power supply and axis controller/IMC)
I connect via serial port also I use " GML Commander 4.03" software for connecting. |
|
| Back to top |
|
|
rsofronici
Junior
Joined: 29 Jan 2015
Posts: 6
|
| Posted: 26/03/2020 18:05 Post subject: |
|
|
I have not forgotten about you but I did get a bit too busy at work.
I hope to have some time tomorrow or early next week to connect to the 1394 system and see if I can help you. |
|
| Back to top |
|
|
akbar_torkashwand
Member
Joined: 09 Nov 2018
Posts: 228
|
| Posted: 26/03/2020 20:42 Post subject: |
|
|
| Thanks a lot. I really need to upload program from 1394 system after that I want to download to other one. |
|
| Back to top |
|
|
rsofronici
Junior
Joined: 29 Jan 2015
Posts: 6
|
| Posted: 27/03/2020 11:08 Post subject: |
|
|
| akbar_torkashwand wrote: | | Thanks a lot. I really need to upload program from 1394 system after that I want to download to other one. |
I just looked at the 1394 system I have and unfortunately it is the Series C and it uses the IMC with SERCOS interface and no Serial interface.
I will look at the GML Commander program to see what's different between the Serial interface system and SERCOS interface system.
On the 1394 Series C with SERCOS interface I remember using AB SoftLogix software and a SERCOS card in the PC to control and run the system. |
|
| Back to top |
|
|
akbar_torkashwand
Member
Joined: 09 Nov 2018
Posts: 228
|
| Posted: 27/03/2020 19:34 Post subject: |
|
|

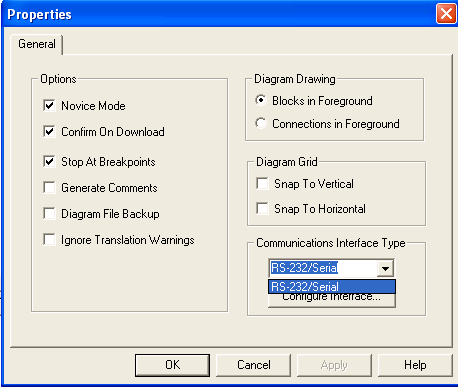

In GML commander software there is only RS232 interface. I think you have to connect to controller with this interface. It's not different between B series and C .
my controller is B series |
|
| Back to top |
|
|
|
