 Posted: 11/12/2019 22:54 Post subject: Upgrade software ME6.5 to 9.5 |
 |
|
Hello everyone,

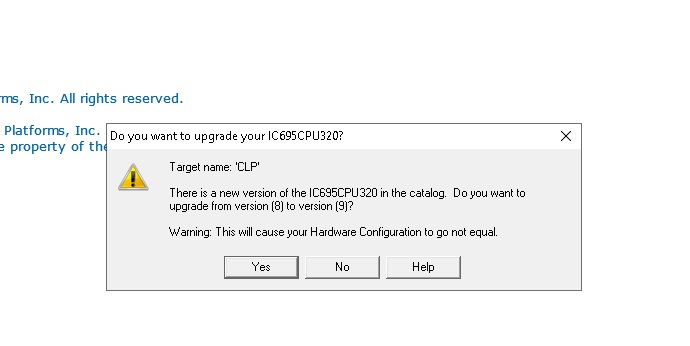

Someone could help me in a question? I wanna upgrade my Proficy Machine Edition version from 6.5 to 9.5 because compatibily with my HMI, but on every program bootup show me that had a cpu upgrade version. I should do it?
 |
|
| Back to top |
|
 |
mawawhawk
Junior
Joined: 11 Aug 2019
Posts: 3
|
| Posted: 12/12/2019 10:45 Post subject: |
|
|
| maybe you should update |
|
| Back to top |
|
|
davivica
Junior
Joined: 09 Dec 2019
Posts: 5
|
| Posted: 12/12/2019 12:29 Post subject: |
|
|
| mawawhawk wrote: | | maybe you should update |
Tanks for your support. When I click in yes cause config not equal, if I send download to PLC I afraid to cause CPU break up. You already did that? |
|
| Back to top |
|
|
qylqxa
Junior
Joined: 05 Jul 2019
Posts: 2
|
| Posted: 13/12/2019 22:04 Post subject: |
|
|
Some hints:
Restrictions and Open Issues in this Release PACSystems* RX3i IC695CPU320
1. Hardware configuration Not Equal after changing target name.
If you store a hardware configuration to flash that sets “Logic/Config Power up Source” to “Always Flash” or “Conditional Flash” and then subsequently changes the name of the target in the programming software, the hardware configuration will go Not Equal and will not Verify as equal.
2. Don’t use multiple targets
In a system in which the hardware configuration is stored from one target and logic is stored from a different target, powering-up from flash will not work. The observed behavior is that, following a power up from flash,
Machine Edition reports hardware configuration and logic "not equal".
3. Logic and HWC not equal after power cycle,
If the Hardware Configuration from Target 1, with Logic/Configuration Power-up Source and Data Source both set to “Always from Flash,” is stored in Flash, then Logic and Hardware Config from Target 2, with Logic/Configuration Power-up Source both set to “Always from RAM,” is stored to RAM and there is a good battery, then when power is cycled the programmer may show that Logic and Hardware Config are not equal.
The remedy is to clear Flash and then store the Logic and Hardware Config from Target 2.
This is your case
4. IC695CPU320-EG 5.70 Hardware-only upgrade to enhance manufacturability. This change does not affect product features or functional compatibility.
5. IC695CPU320 can be field upgraded to firmware version 6.70 using the Winloader firmware upgrade utility and upgrade kit 82A1145-MS10-000-B8, which can be downloaded from 0H1H2H
http://www.ge-ip.com/support.
Read on
https://www.cesco.com/resources/pdf_522/23502-AttachmentURL.pdf
https://anonfile.com/haYdubFfn2/5798095_pdf
Hope this will help you! |
|
