 Posted: 07/11/2018 12:51 Post subject: Traffic Shaper |
 |
|
Traffic Shaper
https://support.industry.siemens.com/cs/document/109750661/traffic-shaper
To prevent peak loads and data loss, the Traffic Shaper is a helpful tool. Through the Traffic Shaper, data packets originating from a network card can be limited according to predetermined maximum values
This application example shows you how to use the Traffic Shaper.

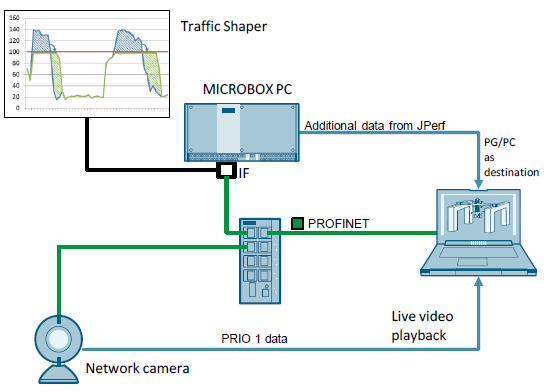

To demonstrate the functionality, a SIMATIC MICROBOX PC and a PG/PC are used. These two devices communicate with each other. The data originating from the MICROBOX PC with the PG/PC as destination is generated by a load generator. In this application example, the tool "JPerf" is used. In parallel, a camera permanently transmits a live video stream to the PG/PC. The PG/PC displays the video stream in a picture playback application. The Traffic Shaper is used so that the live video playback is not disturbed by the communication between MICROBOX PC and PG/PC.
The Traffic Shaper is installed on the MICROBOX PC and controls the interface to the network. This interface routes traffic to the network.
https://support.industry.siemens.com/cs/attachments/109750661/109750661_TrafficShaper_DOC_V10_en.pdf
https://support.industry.siemens.com/cs/attachments/109750661/ReadMe.zip
https://support.industry.siemens.com/cs/attachments/109750661/SIMATIC_TRAFFICSHAPER_V1.zip |
|
