Time-controlled lighting with LOGO! 8 and LOGO! CMR (Set 1)
https://support.industry.siemens.com/cs/document/109063024/time-controlled-lighting-with-logo !-8-and-logo!-cmr-(set-1)
The lighting is controlled by LOGO! 8. This is connected to a LOGO! CMR. By selecting different operating modes, you decide whether the lighting is switched on or off at sunset or sunrise. In addition, it is possible to manually enter a switch-on or switch-off time for the lighting via SMS or locally onsite.
In the automation of lighting systems, factors such as remote control, networking and potential energy savings are playing an increasingly important role. All aspects were taken into account in this solution.

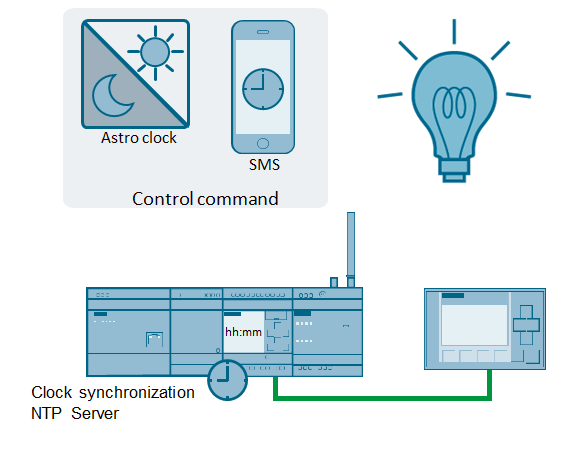

The figure below shows an overview of the most important components:
Time-controlled lighting with LOGO! 8 Time-controlled lighting with LOGO! 8

Selection of the various operating modes results in numerous applications such as park and path lighting, architectural lighting, shop window lighting, stable lighting, plant lighting in greenhouses or illuminated advertising.

Downloads
https://support.industry.siemens.com/cs/attachments/109063024/109063024_Time_controlled_lighting_DOKU_V21_en.pdf
https://support.industry.siemens.com/cs/attachments/109063024/109063024_Time_controlled_lighting_PROJ_V20.zip
Further Information
https://support.industry.siemens.com/cs/ww/en/view/109062859
https://support.industry.siemens.com/cs/document/109741041/logo !
https://support.industry.siemens.com/cs/document/109477418/simatic-net%3a-logo !-industrial-ethernet-logo!-cmr2020-logo!-cmr2040
https://support.industry.siemens.com/cs/document/109756594/firmware-update-v2.1.5-for-logo !-cmr2020-(6gk7142-7bx00-0ax0)-and-logo!-cmr2040-(6gk7142-7ex00-0ax0)
