TIA Portal Test Suite Advanced V16 trial download
https://support.industry.siemens.com/cs/document/109775719/
Styleguide Checker
Functions:
With the help of the following rules, programming guidelines can be created for PLC tags, blocks, block interface and UDTs.
Name length: Minimum / maximum number of characters for an object name
Name contains: (Not) Permissible characters in the object name
Prefix/suffix: (Not) Allowed characters at the beginning/end of an object name
Casing: Selection between pascal, camel and upper casing
Block/tag properties (check as to whether a block comment exists, for example)
Within a TIA project, the check for observance of the rules can be started by the user.
The results of this check are output in the TIA Portal. Using the GoTo function, the location with the rule violation is opened.
Customer benefits:
Simple definition of programming guidelines in the TIA Portal
Quick tracing and fixing of violations against the programming guidelines
Consistent program code is ensured
Application test
Functions:
Textual editor for creating test cases of an S7 application
In each test case, local aliases can be optionally defined for PLC tags and numeroase test steps for checking the application can be created. A single test step consists of:
Value assignment for one/multiple global PLC tags (DB/PLC tags)
RUN statement: Number of CPU cycles/runtime
Asset: After the time has elapsed, the current value of a tag is compared with a defined value.
The following steps are automatically performed by the user after the test has been started
Creation of a PLCSIM Adv. Instance
Download of the CPU selected in the project to the PLCSIM Adv.
Test execution and subsequent deletion of the PLCSIM instance
Output of test results in the TIA Portal
Customer benefits:
Support of a test-driven development for S7 programs
Only tested code is deployed on a real machine
Continuous regression tests guarantee permanently reliable code quality

Important installation instructions:
The installation and operation of TIA Portal Test Suite Advanced V16 requires an installed version of SIMATIC STEP 7 Professional V16 including Update 1. You can find the updates for TIA Portal V16 in Industry Online Support at
https://support.industry.siemens.com/cs/document/109775861/updates-for-step-7-v16-s7-plcsim-v16-and-wincc-v16
Download
https://support.industry.siemens.com/cs/attachments/109775719/TIA_Portal_TestSuiteAdvanced_V16.exe
https://anonfiles.com/VfV6cfV9o3/TIA_Portal_TestSuiteAdvanced_V16_exe
Manual
https://support.industry.siemens.com/cs/attachments/109775719/TIAPortal_TestSuiteAdvanced_enUS.pdf
https://support.industry.siemens.com/cs/attachments/109779356/134011394315.zip

https://anonfiles.com/PbcedcVfo5/134011394315_zip

AnteSavilt · Member 2 Joined: 13 Feb 2018 Posts: 264 Location: Croatia

Test Suite Advanced: Example for checking TIA Portal projects for compliance with a programming style
https://support.industry.siemens.com/cs/document/109779806/

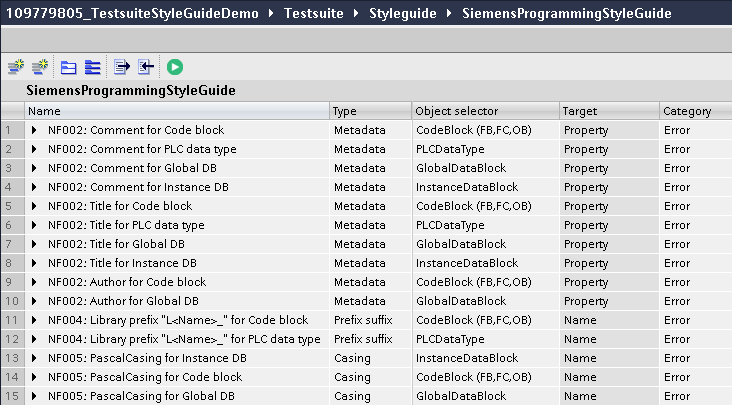

The application example provides you with a rule set for checking the Styleguide with TIA Portal Test Suite Advanced. A demo project shows you how the Styleguide check works.
For some rules and recommendations listed in the "Programming Styleguide" (Programming Guidelines and Programming Styleguide for SIMATIC S7-1200 and S7-1500), a rule set was created and exported as an XML file. You will find the XML file as a download in the entry. You can import the rules defined in the rule set into your TIA Portal project and check your project for violations of the "Programming Styleguide".

The Test Suite supports the following rule types:
