rumcywy byte · Junior Joined: 09 Aug 2022 Posts: 3

TIA Portal Add-Ins
https://support.industry.siemens.com/cs/document/109773999/tia-portal-add-ins
Add-ins give you the opportunity to expand the functionality of the TIA Portal. With the installation of "TIA Portal Openness" you have the possibility to use add-ins.
Summary
Add-ins offer a convenient way to expand the functionality of the TIA Portal via the Openness API.
Add-ins are written as .NET programs.
Add-ins can be conveniently passed on in a company and even distributed to third-party providers.
Installation
Install add-ins by copying the ".addin" file into the "AddIns" folder in the installation directory of the TIA Portal.

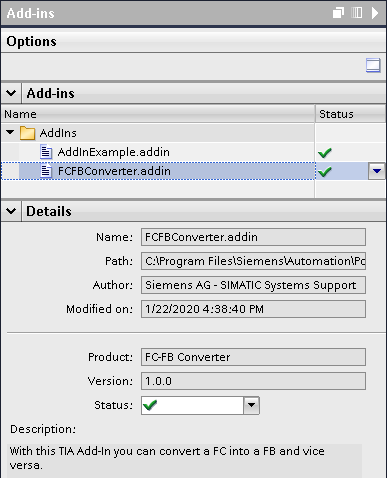

Activate or deactivate add-ins in the "Add-ins" task card (add-ins are deactivated by default).
Further information on the add-in such as the author, description or the required authorizations are also displayed in the "Add-ins" task card.

TIA Portal Add-Ins TIA Portal Add-Ins

Advantages
Add-ins integrate seamlessly into the TIA Portal environment.
Add-ins can be run without knowledge of higher programming languages.
Add-ins are context sensitive. This means that they only appear for the selected objects in a TIA Portal project.
Add-ins can also perform Windows system functions, file or network operations, and interact with other applications.
Usage
Add-ins can be used in the following areas in the TIA Portal:
Project navigation
Library view
Version control interface
Device and network view
Examples
In the following is an add-in template. You can use the template to develop your own add-ins.

https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_Template_1.0.0_CODE.zip
https://support.industry.siemens.com/cs/attachments/109779415/109779415_TIA_Add-In_Getting_Started_DOC_V1_3_EN.pdf
https://support.industry.siemens.com/cs/attachments/109779415/109779415_TIA_Add-In_Getting_Started_Software_V1_3.zip
https://support.industry.siemens.com/cs/attachments/109779415/109779415_TIA_Add-In_Getting_Started_FUNC_V_1_0_EN.pdf
https://support.industry.siemens.com/cs/attachments/109779415/109779415_TIA_Add-In_Getting_Started_Startdrive_Helper_V1_0.zip
TIA Add-In Build Package
https://support.industry.siemens.com/cs/document/109805030/tia-add-in-build-package
https://support.industry.siemens.com/cs/attachments/109805030/109805030_TiaAddInBuildPackage_DOC_V10_en.pdf
https://www.nuget.org/packages/Siemens.Collaboration.Net.TiaPortal.AddIn.Build#readme-body-tab

TIA Add-In Tester
https://support.industry.siemens.com/cs/document/109783096/tia-add-in-tester
https://support.industry.siemens.com/cs/attachments/109783096/109783096_TiaAddInTester_DOC_V11_en.pdf
https://support.industry.siemens.com/cs/attachments/109783096/109783096_TiaAddInTester_APP_V1.1.6557.1192.zip

How do you debug a TIA Add-In?
https://support.industry.siemens.com/cs/document/109790393/how-do-you-debug-a-tia-add-in

The following add-ins are already created. You can use the add-ins and customize as needed.
CopyPLC: Copy software and hardware configurations between PLCs inside the same project
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_CopyPLC_V17_1.0.0_APPL.zip
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_CopyPLC_V17_1.0.0_CODE.zip
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_CopyPLC_V16_1.0.0_APPL.zip
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_CopyPLC_V16_1.0.0_CODE.zip

FC-FB-Converter: Change program blocks from FC to FB and vice-versa
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_FC-FB_Converter_V17_1.0.3_APPL.zip
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_FC-FB_Converter_V17_1.0.3_CODE.zip
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_FC-FB_Converter_V16_1.0.2_APPL.zip
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_FC-FB_Converter_V16_1.0.2_CODE.zip

VCI Git Connector: Connects VCI workspace to a Git repository
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_VCI_Git_Connector_1.0.0_APPL.zip
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_VCI_Git_Connector_1.0.0_CODE.zip

VariableCleaner: Deleting unused variables in a TIA Portal project
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_VariableCleaner_V17_1.0.0_APPL.zip

Log-Converter for TIA Portal Test Suite: Converts Test Suite logs to a more readable compus (.csv or .xml)
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_Test_Suite_Log_Converter_APPL_v100.zip
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_Test_Suite_Log_Converter_CODE_v100.zip

Edit Know How Protection of blocks for complete folders in TIA Portal
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_KnowHowProtection_V16_1.0.1_APPL.zip

More TIA Portal Add-In examples

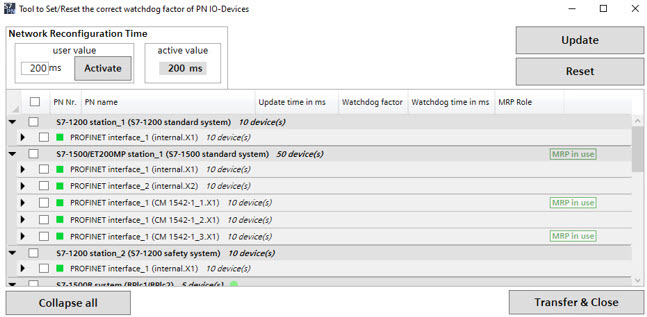

S7-1500R/H AddIn: Calculates and adapts the update time for devices in a R/H-System
https://support.industry.siemens.com/cs/document/109769093/s7-1500r-h-addin

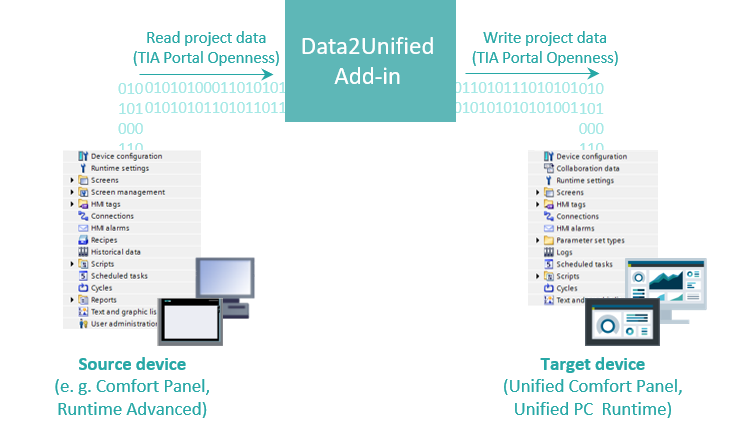

Data2Unified Add-in: Converts WinCC configuration contents into a WinCC Unified configuration
https://support.industry.siemens.com/cs/document/109770510/data2unified-add-in

Simulation tip generator
https://support.industry.siemens.com/cs/document/109780391/simulation-model-generator

Code2Docu for generating documentation
https://support.industry.siemens.com/cs/document/109809007/tia-portal-add-in-code2docu-for-generating-documentation

Automated creation of SINAMICS democases
https://support.industry.siemens.com/cs/document/109799613/tia-add-in-automated-creation-of-sinamics-democases

Download
https://ulozto.net/tamhle/Ks72HjYVFpZC/

[URL=https://dfiles.eu/files/jt7g153gk]109779415_TIA_Add-In_Getting_Started_Software_V1_3.zip[/URL]
[URL=https://dfiles.eu/files/umxqlhsi3]109809007_TIA_AddIn_Code2Docu_PROJ_V1_1_0.zip[/URL]
[URL=https://dfiles.eu/files/hfo0y3g82]109779415_TIA_Add-In_Getting_Started_DOC_V1_3_EN.pdf[/URL]
[URL=https://dfiles.eu/files/euc1ugbm2]109779415_TIA_Add-In_Getting_Started_FUNC_V_1_0_EN.pdf[/URL]
[URL=https://dfiles.eu/files/rc1byfek5]109779415_TIA_Add-In_Getting_Started_Startdrive_Helper_V1_0.zip[/URL]
[URL=https://dfiles.eu/files/1v2bvbd7q]109799613_SINAMICS.DEMOCASE.addin_V2.1.6597.8912.zip[/URL]
[URL=https://dfiles.eu/files/fxi3uyqi8]109783096_TiaAddInTester_APP_V1.1.6557.1192.zip[/URL]
[URL=https://dfiles.eu/files/q625fiq7g]109783096_TiaAddInTester_DOC_V11_en.pdf[/URL]
[URL=https://dfiles.eu/files/74icqigv2]109805030_TiaAddInBuildPackage_DOC_V10_en.pdf[/URL]
[URL=https://dfiles.eu/files/51rfx3yl6]109769093_S7_1500RH_AddIn_DOC_V1_2_en.pdf[/URL]
[URL=https://dfiles.eu/files/981q3g39c]109770510_Data2Unified_Add-in_V2_1_0_0.zip[/URL]
[URL=https://dfiles.eu/files/8e5gqlj4p]109769093_S7_1500RH_AddIn_CODE_V1_2_TIAP_V17.zip[/URL]
[URL=https://dfiles.eu/files/1ry934aw2]109769093_S7_1500RH_AddIn_CODE_V1_2_TIAP_V16.zip[/URL]
[URL=https://dfiles.eu/files/k9ebyef7a]109770510_Data2Unified_Manual_DOC_V21_en.pdf[/URL]
[URL=https://dfiles.eu/files/96pnov1pt]109780391_SimulationModelgenerator_DEMO_v2_0.zip[/URL]
[URL=https://dfiles.eu/files/xa8lnm9hr]109770510_Data2Unified_Manual_DOC_V13_en.pdf[/URL]
[URL=https://dfiles.eu/files/zmpajc7q1]109770510_Data2Unified_Add-in_V1_3_0_0.zip[/URL]
[URL=https://dfiles.eu/files/tny1qxo8x]109780391_SimulationModelGenerator_DOC_v2_0_en.pdf[/URL]
[URL=https://dfiles.eu/files/2crz1nz0k]109809007_TIA_AddIn_Code2Docu_DOC_V1_1_0_en.pdf[/URL]
[URL=https://dfiles.eu/files/c7567xmof]109780391_SimulationModelgenerator_PROJ_v2_3.zip[/URL]
[URL=https://dfiles.eu/files/exjv7olyq]109799613_TIA_Add-In_Automated_creation_of_SINAMICS_democases_DOC_EN.pdf[/URL]
[URL=https://dfiles.eu/files/dyyr7o2yn]109773999_TIA_Add-In_CopyPLC_V17_1.0.0_APPL.zip[/URL]
[URL=https://dfiles.eu/files/3wkrcyn9d]109773999_TIA_Add-In_CopyPLC_V16_1.0.0_APPL.zip[/URL]
[URL=https://dfiles.eu/files/0se6cu9na]109773999_TIA_Add-In_CopyPLC_V17_1.0.0_CODE.zip[/URL]
[URL=https://dfiles.eu/files/e5rfrdu0t]109773999_TIA_Add-In_VariableCleaner_V17_1.0.0_APPL.zip[/URL]
[URL=https://dfiles.eu/files/rt8jupofz]109773999_TIA_Add-In_Test_Suite_Log_Converter_APPL_v100.zip[/URL]
[URL=https://dfiles.eu/files/fofxsz6hb]109773999_TIA_Add-In_CopyPLC_V16_1.0.0_CODE.zip[/URL]
[URL=https://dfiles.eu/files/cg1ccg2yb]109773999_TIA_Add-In_FC-FB_Converter_V16_1.0.2_APPL.zip[/URL]
[URL=https://dfiles.eu/files/5tesx3wiy]109773999_TIA_Add-In_FC-FB_Converter_V17_1.0.3_APPL.zip[/URL]
[URL=https://dfiles.eu/files/4gplxzjg0]109773999_TIA_Add-In_KnowHowProtection_V16_1.0.1_APPL.zip[/URL]
[URL=https://dfiles.eu/files/fokr3b452]109773999_TIA_Add-In_FC-FB_Converter_V17_1.0.3_CODE.zip[/URL]
[URL=https://dfiles.eu/files/izri8ciel]109773999_TIA_Add-In_VCI_Git_Connector_1.0.0_APPL.zip[/URL]
[URL=https://dfiles.eu/files/gtu45wdbr]109773999_TIA_Add-In_FC-FB_Converter_V16_1.0.2_CODE.zip[/URL]
[URL=https://dfiles.eu/files/bgm6395cj]109773999_TIA_Add-In_VCI_Git_Connector_1.0.0_CODE.zip[/URL]
[URL=https://dfiles.eu/files/31p2c38yo]109773999_TIA_Add-In_Test_Suite_Log_Converter_CODE_v100.zip[/URL]

valz · Member 3 Joined: 26 Jul 2015 Posts: 771

TIA Portal Add-In Vorlage
https://support.industry.siemens.com/cs/attachments/109773999/109773999_TIA_Add-In_Template_1.0.0_CODE.zip
TIA Add-Ins Getting Started
https://support.industry.siemens.com/cs/document/109779415/
TIA Add-In Build Package
The TIA Add-In Build Package creates and manages all necessary files to develop and debug a TIA Add-In. After installing the build package, the project is ready for development and no further setup is required.
https://support.industry.siemens.com/cs/document/109805030/
TIA Add-In Tester
https://support.industry.siemens.com/cs/document/109783096/
How do you debug a TIA Add-In?
https://support.industry.siemens.com/cs/document/109790393/
Attach to the TIA Add-In Process
Repeat the following steps each time you want to debug a TIA Add-In:
Preparation
Create the TIA Add-In (*.addin).
Copy the TIA Add-In into the "AddIns" folder of the TIA Portal installation (for example: C:\Program Files\Siemens\Automation\Portal V16\AddIns).
Enable the TIA Add-In in the "Add-ins” task card.
Start the TIA Add-In
In the TIA Portal:
Open the context menu for the element for which the TIA Add-In was created (1).
Move the mouse over the context menu item you created (2). In this way the TIA Add-In is loaded in a separate process.
TIA Portal Add-Ins TIA Portal Add-Ins

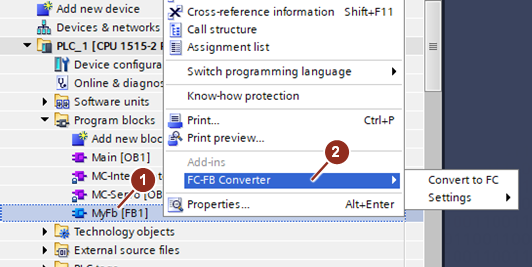

Fig. 1: Loading the TIA Add-In

Attach to the TIA Add-In process
In Microsoft Visual Studio:
Set a breakpoint in the code of the TIA Add-In (1).
In the menu select "Debug" → "Attach to Process" (2).
Find the "Siemens.Engineering.AddIn.Loader.x64.exe" process (3) and click "Attach" (4).
In TIA Portal:
Run the context menu entry to be tested.
The program sequence is paused at the defined breakpoint in Microsoft Visual Studio.
Note
Multiple TIA Add-In processes might be active. Disable all the other TIA Add-Ins, because there is no way to find out which process belongs to your TIA Add-In.
TIA Portal Add-Ins TIA Portal Add-Ins

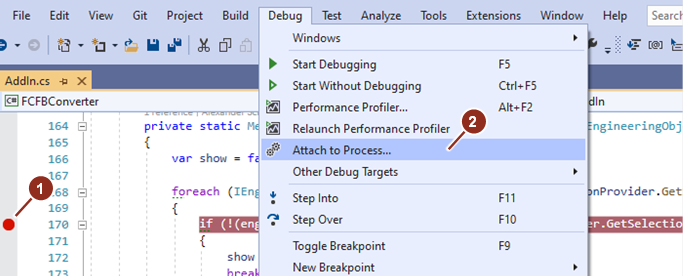

Fig. 2: Start debugging

TIA Portal Add-Ins TIA Portal Add-Ins

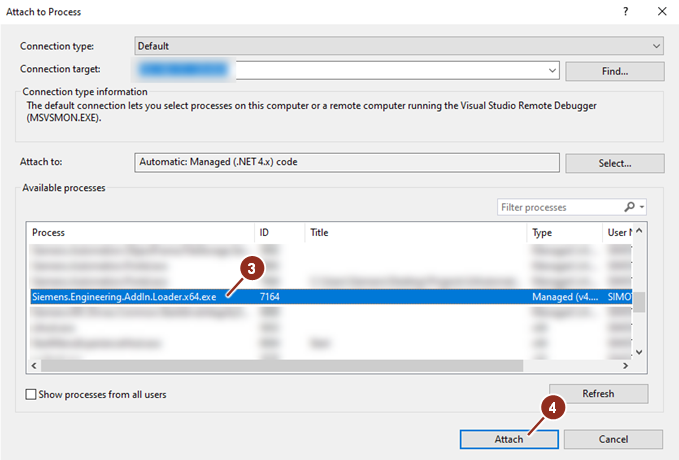

Fig. 3: Attach to process

The following add-ins are already created. You can use the add-ins and customize as needed.
CopyPLC: Copy software and hardware configurations between PLCs inside the same project
FC-FB-Converter: Change program blocks from FC to FB and vice-versa
VCI Git Connector: Connects VCI workspace to a Git repository
VariableCleaner: Deleting unused variables in a TIA Portal project
Log-Converter for TIA Portal Test Suite: Converts Test Suite logs to a more readable format (.csv or .xml)
Edit Know How Protection of blocks for complete folders in TIA Portal
Test Creation: Creates test call environment for TIA Portal TestSuite
VCI SVN Connector: Manages files in a Workspace of the Version Control Interface (VCI) with SVN.
Export / Import: Export and import TIA Portal PLC and HMI objects

More TIA Portal Add-In Examples
S7-1500R/H AddIn: Calculates and adapts the update time for devices in a R/H-System
https://support.industry.siemens.com/cs/document/109769093/
Data2Unified Add-in: Converts WinCC configuration contents into a WinCC Unified configuration
https://support.industry.siemens.com/cs/document/109770510/
Simulation model generator
https://support.industry.siemens.com/cs/document/109780391/
Code2Docu for generating documentation
https://support.industry.siemens.com/cs/document/109809007/
Automated creation of SINAMICS democases
https://support.industry.siemens.com/cs/document/109799613/

Further Information
https://support.industry.siemens.com/cs/ww/en/view/109773506/128474251915
https://support.industry.siemens.com/cs/attachments/109773506/STEP_7_WinCC_V16_enUS_en-US.pdf

Download
https://ulozto.net/tamhle/9euBcSte5x2I/

[URL=https://www.file-upload.net/download-15074191/109773999_TIAV18_Add-In_Export_Import_v100_App.zip.html]109773999_TIAV18_Add-In_Export_Import_v100_App.zip[/URL]
[URL=https://www.file-upload.net/download-15074193/109773999_TIAV17_Add-In_Export_Import_v100_App.zip.html]109773999_TIAV17_Add-In_Export_Import_v100_App.zip[/URL]
[URL=https://www.file-upload.net/download-15074192/109773999_TIAV16_Add-In_Export_Import_v100_App.zip.html]109773999_TIAV16_Add-In_Export_Import_v100_App.zip[/URL]
[URL=https://www.file-upload.net/download-15074194/109773999_TIA_Add-In_VCI_SVN_Connector_V16_V17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_VCI_SVN_Connector_V16_V17_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15074196/109773999_TIA_Add-In_TestCreation_V17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_TestCreation_V17_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15074195/109773999_TIA_Add-In_KnowHowProtection_V16_1.0.1_APPL.zip.html]109773999_TIA_Add-In_KnowHowProtection_V16_1.0.1_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15074198/109773999_TIA_Add-In_Test_Suite_Log_Converter_APPL_v100.zip.html]109773999_TIA_Add-In_Test_Suite_Log_Converter_APPL_v100.zip[/URL]
[URL=https://www.file-upload.net/download-15074199/109773999_TIA_Add-In_VariableCleaner_V17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_VariableCleaner_V17_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15074197/109773999_TIA_Add-In_VCI_Git_Connector_1.0.0_CODE.zip.html]109773999_TIA_Add-In_VCI_Git_Connector_1.0.0_CODE.zip[/URL]
[URL=https://www.file-upload.net/download-15074200/109773999_TIA_Add-In_VCI_Git_Connector_1.0.0_APPL.zip.html]109773999_TIA_Add-In_VCI_Git_Connector_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15074201/109773999_TIA_Add-In_FC-FB_Converter_V16_1.0.2_CODE.zip.html]109773999_TIA_Add-In_FC-FB_Converter_V16_1.0.2_CODE.zip[/URL]
[URL=https://www.file-upload.net/download-15074203/109773999_TIA_Add-In_FC-FB_Converter_V16_1.0.2_APPL.zip.html]109773999_TIA_Add-In_FC-FB_Converter_V16_1.0.2_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15074202/109773999_TIA_Add-In_FC-FB_Converter_V17_1.0.3_CODE.zip.html]109773999_TIA_Add-In_FC-FB_Converter_V17_1.0.3_CODE.zip[/URL]
[URL=https://www.file-upload.net/download-15074205/109773999_TIA_Add-In_FC-FB_Converter_V17_1.0.3_APPL.zip.html]109773999_TIA_Add-In_FC-FB_Converter_V17_1.0.3_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15074204/109773999_TIA_Add-In_CopyPLC_V16_1.0.0_CODE.zip.html]109773999_TIA_Add-In_CopyPLC_V16_1.0.0_CODE.zip[/URL]
[URL=https://www.file-upload.net/download-15074206/109773999_TIA_Add-In_CopyPLC_V16_1.0.0_APPL.zip.html]109773999_TIA_Add-In_CopyPLC_V16_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15074207/109773999_TIA_Add-In_CopyPLC_V17_1.0.0_CODE.zip.html]109773999_TIA_Add-In_CopyPLC_V17_1.0.0_CODE.zip[/URL]
[URL=https://www.file-upload.net/download-15074208/109773999_TIA_Add-In_CopyPLC_V17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_CopyPLC_V17_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15074209/109783096_TiaAddInTester_APP_V1.1.6557.1192.zip.html]109783096_TiaAddInTester_APP_V1.1.6557.1192.zip[/URL]
[URL=https://www.file-upload.net/download-15074210/109779415_TIA_Add-In_Getting_Started_Startdrive_Helper_V1_0.zip.html]109779415_TIA_Add-In_Getting_Started_Startdrive_Helper_V1_0.zip[/URL]
[URL=https://www.file-upload.net/download-15074212/109779415_TIA_Add-In_Getting_Started_Software_V1_3.zip.html]109779415_TIA_Add-In_Getting_Started_Software_V1_3.zip[/URL]
[URL=https://www.file-upload.net/download-15074211/109773999_TIA_Add-In_Template_1.0.0_CODE.zip.html]109773999_TIA_Add-In_Template_1.0.0_CODE.zip[/URL]

valz · Member 3 Joined: 26 Jul 2015 Posts: 771

TIA Add-In: PN Watchdog
https://support.industry.siemens.com/cs/document/109769093/
When connecting PROFINET IO devices to IO controllers, the monitoring times of the devices must be adjusted if necessary. The PN Watchdog Add-In allows a central management of the PN IO devices and their monitoring factors. The devices are listed clearly, grouped according to the systems and interfaces and allow an adjustment of hundreds of devices with only a few steps.
The add-in extends the context menu of the project tree and the network view in the TIA Portal and enables the central configuration of the monitoring factor of PN IO-devices of the selected IO systems.

TIA Portal Add-Ins TIA Portal Add-Ins

Documentation and Addin file
https://support.industry.siemens.com/cs/attachments/109769093/109769093_S7_1500RH_AddIn_DOC_V1_3_en.pdf
https://support.industry.siemens.com/cs/attachments/109769093/109769093_S7_1500RH_AddIn_CODE_V1_3_TIAP_V18.zip
https://support.industry.siemens.com/cs/attachments/109769093/109769093_S7_1500RH_AddIn_CODE_V1_2_TIAP_V17.zip
https://support.industry.siemens.com/cs/attachments/109769093/109769093_S7_1500RH_AddIn_CODE_V1_2_TIAP_V16.zip

https://ulozto.net/tamhle/ejy3T6OsUEtD/

[URL=https://www.file-upload.net/download-15099928/109769093_S7_1500RH_AddIn_CODE_V1_2_TIAP_V16.zip.html]109769093_S7_1500RH_AddIn_CODE_V1_2_TIAP_V16.zip[/URL]
[URL=https://www.file-upload.net/download-15099927/109769093_S7_1500RH_AddIn_CODE_V1_2_TIAP_V17.zip.html]109769093_S7_1500RH_AddIn_CODE_V1_2_TIAP_V17.zip[/URL]
[URL=https://www.file-upload.net/download-15099929/109769093_S7_1500RH_AddIn_CODE_V1_3_TIAP_V18.zip.html]109769093_S7_1500RH_AddIn_CODE_V1_3_TIAP_V18.zip[/URL]
[URL=https://www.file-upload.net/download-15099930/109769093_S7_1500RH_AddIn_DOC_V1_3_en.pdf.html]109769093_S7_1500RH_AddIn_DOC_V1_3_en.pdf[/URL]

valz · Member 3 Joined: 26 Jul 2015 Posts: 771

TIA Add-Ins
https://support.industry.siemens.com/cs/document/109773999/

https://ulozto.net/tamhle/jmtlrZsrzx0P/

[URL=https://www.file-upload.net/download-15169563/109773999_TIA_Add-In_Export_dataset_to_Excel_1.0.0_APPL.zip.html]109773999_TIA_Add-In_Export_dataset_to_Excel_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15169562/109773999_TIA_Add-In_Start_PLCSIM_Advanced_1.0.0_APPL.zip.html]109773999_TIA_Add-In_Start_PLCSIM_Advanced_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15169564/109773999_TIA_Add-In_CAx_PCT-Exchange_v1.0.0_APPL.zip.html]109773999_TIA_Add-In_CAx_PCT-Exchange_v1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15169566/109773999_TIAV16_Add-In_Export_Import_v100_App.zip.html]109773999_TIAV16_Add-In_Export_Import_v100_App.zip[/URL]
[URL=https://www.file-upload.net/download-15169565/109773999_TIAV17_Add-In_Export_Import_v100_App.zip.html]109773999_TIAV17_Add-In_Export_Import_v100_App.zip[/URL]
[URL=https://www.file-upload.net/download-15169567/109773999_TIA_Add-In_TestCreation_V17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_TestCreation_V17_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15169568/109773999_TIAV18_Add-In_Export_Import_v100_App.zip.html]109773999_TIAV18_Add-In_Export_Import_v100_App.zip[/URL]
[URL=https://www.file-upload.net/download-15169570/109773999_TIA_Add-In_TestCreation_V18_1.5.0_APPL.zip.html]109773999_TIA_Add-In_TestCreation_V18_1.5.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15169569/109773999_TIA_Add-In_KnowHowProtection_V16_1.0.1_APPL.zip.html]109773999_TIA_Add-In_KnowHowProtection_V16_1.0.1_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15169571/109773999_TIA_Add-In_Test_Suite_Log_Converter_APPL_v100.zip.html]109773999_TIA_Add-In_Test_Suite_Log_Converter_APPL_v100.zip[/URL]
[URL=https://www.file-upload.net/download-15169574/109773999_TIA_Add-In_VariableCleaner_V17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_VariableCleaner_V17_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15169573/109773999_TIA_Add-In_VCI_SVN_Connector_V16_V17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_VCI_SVN_Connector_V16_V17_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15169572/109773999_TIA_Add-In_VCI_Git_Connector_1.0.0_APPL.zip.html]109773999_TIA_Add-In_VCI_Git_Connector_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15169576/109773999_TIA_Add-In_FC-FB_Converter_V16_1.0.2_APPL.zip.html]109773999_TIA_Add-In_FC-FB_Converter_V16_1.0.2_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15169577/109773999_TIA_Add-In_FC-FB_Converter_1.1.0_APPL.zip.html]109773999_TIA_Add-In_FC-FB_Converter_1.1.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15169575/109773999_TIA_Add-In_CopyPLC_V16_1.0.0_CODE.zip.html]109773999_TIA_Add-In_CopyPLC_V16_1.0.0_CODE.zip[/URL]
[URL=https://www.file-upload.net/download-15169578/109773999_TIA_Add-In_CopyPLC_V17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_CopyPLC_V17_1.0.0_APPL.zip[/URL]

valz · Member 3 Joined: 26 Jul 2015 Posts: 771

TIA Add-Ins
https://support.industry.siemens.com/cs/document/109773999/
Add-ins give you the opportunity to expand the functionality of the TIA Portal. With the installation of "TIA Portal Openness" you have the possibility to use add-ins.

https://ulozto.net/tamhle/ENwOTLZjR8FU/

[URL=https://www.file-upload.net/download-15192695/109773999_TIA_Add-In_STEP7_Engineering_Assistant_1.0.0_APPL.zip.html]109773999_TIA_Add-In_STEP7_Engineering_Assistant_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192694/109773999_TIA_Add-In_SCL_Source_Protector_TIAV17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_SCL_Source_Protector_TIAV17_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192693/109773999_TIA_Add-In_SCL_Source_Protector_TIAV18_1.0.0_APPL.zip.html]109773999_TIA_Add-In_SCL_Source_Protector_TIAV18_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192698/109773999_TIA_Add-In_Safety_Signal_Checker_1.0.0_APPL.zip.html]109773999_TIA_Add-In_Safety_Signal_Checker_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192696/109773999_TIA_Add-In_SIMATIC_ModularCodeConfigurator_1.0.0_APPL.zip.html]109773999_TIA_Add-In_SIMATIC_ModularCodeConfigurator_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192697/109773999_TIA_Add-In_Export_dataset_to_Excel_1.0.0_APPL.zip.html]109773999_TIA_Add-In_Export_dataset_to_Excel_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192699/109773999_TIA_Add-In_Start_PLCSIM_Advanced_1.0.0_APPL.zip.html]109773999_TIA_Add-In_Start_PLCSIM_Advanced_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192700/109773999_TIA_Add-In_CAx_PCT-Exchange_v1.0.0_APPL.zip.html]109773999_TIA_Add-In_CAx_PCT-Exchange_v1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192701/109773999_TIAV16_Add-In_Export_Import_v100_App.zip.html]109773999_TIAV16_Add-In_Export_Import_v100_App.zip[/URL]
[URL=https://www.file-upload.net/download-15192702/109773999_TIAV17_Add-In_Export_Import_v100_App.zip.html]109773999_TIAV17_Add-In_Export_Import_v100_App.zip[/URL]
[URL=https://www.file-upload.net/download-15192703/109773999_TIAV17_Add-In_Export_Import_v100_App.zip.html]109773999_TIAV17_Add-In_Export_Import_v100_App.zip[/URL]
[URL=https://www.file-upload.net/download-15192704/109773999_TIAV18_Add-In_Export_Import_v100_App.zip.html]109773999_TIAV18_Add-In_Export_Import_v100_App.zip[/URL]
[URL=https://www.file-upload.net/download-15192705/109773999_TIA_Add-In_TestCreation_V17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_TestCreation_V17_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192708/109773999_TIA_Add-In_TestCreation_V18_1.5.0_APPL.zip.html]109773999_TIA_Add-In_TestCreation_V18_1.5.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192706/109773999_TIA_Add-In_KnowHowProtection_V16_1.0.1_APPL.zip.html]109773999_TIA_Add-In_KnowHowProtection_V16_1.0.1_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192707/109773999_TIA_Add-In_Test_Suite_Log_Converter_APPL_v100.zip.html]109773999_TIA_Add-In_Test_Suite_Log_Converter_APPL_v100.zip[/URL]
[URL=https://www.file-upload.net/download-15192711/109773999_TIA_Add-In_VariableCleaner_V17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_VariableCleaner_V17_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192709/109773999_TIA_Add-In_VCI_Attribute_Support_1.0.0_APPL.zip.html]109773999_TIA_Add-In_VCI_Attribute_Support_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192710/109773999_TIA_Add-In_VCI_SVN_Connector_V16_V17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_VCI_SVN_Connector_V16_V17_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192712/109773999_TIA_Add-In_VCI_Git_Connector_1.0.0_APPL.zip.html]109773999_TIA_Add-In_VCI_Git_Connector_1.0.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192714/109773999_TIA_Add-In_FC-FB_Converter_1.1.0_APPL.zip.html]109773999_TIA_Add-In_FC-FB_Converter_1.1.0_APPL.zip[/URL]
[URL=https://www.file-upload.net/download-15192713/109773999_TIA_Add-In_CopyPLC_V16_1.0.0_CODE.zip.html]109773999_TIA_Add-In_CopyPLC_V16_1.0.0_CODE.zip[/URL]
[URL=https://www.file-upload.net/download-15192715/109773999_TIA_Add-In_CopyPLC_V17_1.0.0_APPL.zip.html]109773999_TIA_Add-In_CopyPLC_V17_1.0.0_APPL.zip[/URL]

mamiko · Member 2 Joined: 25 Dec 2017 Posts: 420

TIA Add-In Overview for Developers
https://support.industry.siemens.com/cs/document/109817270/

TIA Add-In Code Examples
The following are code examples of Add-Ins that you have already created that you can use and customize as needed.
CopyPLC
https://support.industry.siemens.com/cs/attachments/109817270/109817270_TIA_Add-In_CopyPLC_V17_1.0.0_CODE.zip
FC-FB Converter
https://support.industry.siemens.com/cs/attachments/109817270/109817270_TIA_Add-In_FC-FB_Converter_V17_1.0.3_CODE.zip
VCI Git Connector
https://support.industry.siemens.com/cs/attachments/109817270/109817270_TIA_Add-In_VCI_Git_Connector_1.0.0_CODE.zip
TestSuite_LogConverter
https://support.industry.siemens.com/cs/attachments/109817270/109817270_TIA_Add-In_Test_Suite_Log_Converter_APPL_v100.zip

Further Information
https://support.industry.siemens.com/cs/document/109773999/tia-add-ins

[URL=https://www.file-upload.net/download-15254969/109817270_TIA_Add-In_Template_CODE.zip.html]109817270_TIA_Add-In_Template_CODE.zip[/URL]
[URL=https://www.file-upload.net/download-15254970/109817270_TIA_Add-In_Test_Suite_Log_Converter_APPL_v100.zip.html]109817270_TIA_Add-In_Test_Suite_Log_Converter_APPL_v100.zip[/URL]
[URL=https://www.file-upload.net/download-15254968/109817270_TIA_Add-In_VCI_Git_Connector_1.0.0_CODE.zip.html]109817270_TIA_Add-In_VCI_Git_Connector_1.0.0_CODE.zip[/URL]
[URL=https://www.file-upload.net/download-15254971/109817270_TIA_Add-In_FC-FB_Converter_V17_1.0.3_CODE.zip.html]109817270_TIA_Add-In_FC-FB_Converter_V17_1.0.3_CODE.zip[/URL]
[URL=https://www.file-upload.net/download-15254972/109817270_TIA_Add-In_CopyPLC_V17_1.0.0_CODE.zip.html]109817270_TIA_Add-In_CopyPLC_V17_1.0.0_CODE.zip[/URL]

mamiko · Member 2 Joined: 25 Dec 2017 Posts: 420

Data2Unified - TIA Portal Add-in
https://support.industry.siemens.com/cs/document/109770510/
Continue to use the project contents you have created when switching to SIMATIC WinCC Unified and save time during engineering with the “Data2Unified” add-in.
SIMATIC WinCC Unified is the new visualization system from Siemens for automation applications. The SIMATIC WinCC Unified System consists of the SIMATIC WinCC visualization software as well as the new SIMATIC HMI Unified Panels.

The “Data2Unified” add-in supports you to convert your configuration contents into a WinCC Unified configuration so that you do not have to recreate the contents of your previous configurations from scratch.

Please note
Data2Unified is not a comprehensive migration tool. This add-in is set to help with your migration to WinCC Unified and reduces time and effort. Nevertheless, it is mandatory to do manual adaptions before and after the project conversion with Data2Unified. For the detailed steps, please have a look at the manual.

TIA Portal Add-Ins TIA Portal Add-Ins

In the current version of the “Data2Unified” add-in, the following contents are supported for conversion to SIMATIC WinCC Unified:

Screen objects of type "Basic objects" (e.g. Text box, Rectangle) and "Elements" (e.g. Button, I/O field)
Animations on the supported screen objects
Selected system functions on supported screen objects
Screens
Screen management (e.g. Templates, Pop-up screens, Slide-in Screens)
Parts of faceplate implementation
HMI tags, except UDT structures
HMI alarms
Archives and archive tags

Please note
The “Data2Unified” add-in is under continuous development (see last changes), which will gradually support additional TIA Portal project elements. The link to download the latest version of the add-in is available within this article.

New in Data2Unified V4.1.0.0
Improvement in performance of the add-in
Improvement in quality of the add-in
Adaptions to the user interface
2-click-conversion of faceplates

Download Data2Unified Add-in V4.1.0.0 (Support as of TIA Portal V19)
Download Data2Unified Add-in V3.2.0.0 (Support as of TIA Portal V18)
Download Data2Unified Add-in V2.2.1.0 (Support as of TIA Portal V17)
Download Data2Unified Add-in V1.3.0.0 (Support as of TIA Portal V16)

Download Url File name
https://dfiles.com/files/lxik0ip7v 109770510_Data2Unified_Add-in_V4_1_0_0.zip
https://dfiles.com/files/fuh7emk04 109770510_Data2Unified_Add-in_V3_2_0_0.zip
https://dfiles.com/files/6zspnfnah 109770510_Data2Unified_Add-in_V2_2_1_0.zip
https://dfiles.com/files/3rtczmce5 109770510_Data2Unified_Add-in_V1_3_0_0.zip
