TIA Portal Add-In "SINAMICS G120X Basic Setup”
https://support.industry.siemens.com/cs/document/109792547/
In pump and fan applications (e.g. water/wastewater or building technology) usually one PLC controls many drives. Often the configurations of this drives is nearly identic. Commissioning such systems for a great number of drives (>10) takes considerable time since it entails a repetitive process prone to errors. This TIA Portal Add-In enables the user to reduce commissioning time and effort.
The TIA Portal add-in "SINAMICS G120X Basic Setup" facilitates the commissioning of similar G120X drives by copying a desired configuration to one or many drive objects via the use of a PLC.

From now on, you can enjoy of benefits, such as:
Reduced commissioning time and effort
Easy setup thanks to the user friendly interface
No drives parameters knowledge required
Error prevention with the help of automatic processing

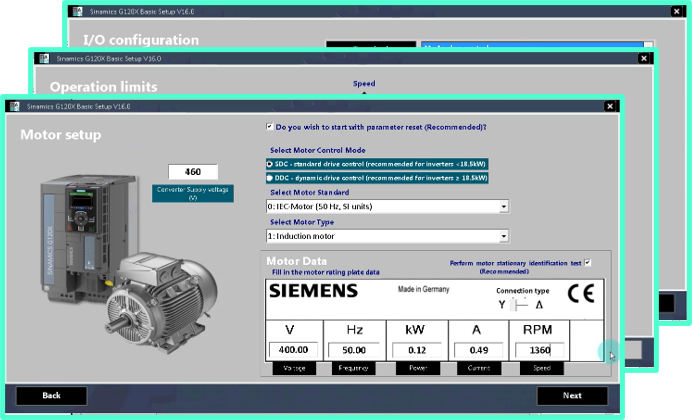

TIA Portal Add-In "SINAMICS G120X Basic Setup” TIA Portal Add-In "SINAMICS G120X Basic Setup”

The TIA Portal Add-in "SINAMICS G120X Basic Setup" offers the following functions:
User friendly wizards with graphical displays to input values
Display/selection of compatible drives in the project
Preparation of commissioning data offline and its backup (optional) on PC/PG in .xml format
Assignment of commissioning data to a single or more identical converter and storing the data in the PLC (as a local backup)
Execution of commissioning of one or more converters (mass commissioning) from PLC on demand using acyclic communication

In the TIA Portal-Add-In for V17 there are some new faceplates included for setup of most common application-related functions:
Automatic restart
Boost
Flying restart
Skip frequencies
In the TIA Portal-Add-In for V17 there are also improvements in faceplates:

I/O Setup: added new Macro 58 "MOP control"
Motor setup: added two more Motor type options
161: 1LE0 induction motor
608: 1PH8 synchronous reluctance motor
