TIA Portal Add-In Code2Docu for generating documentation
https://support.industry.siemens.com/cs/document/109809007/

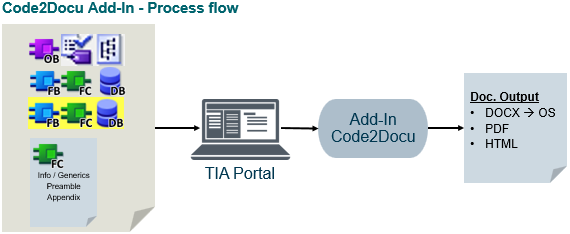

With the help of "Code2Docu" a documentation is generated from functions (FCs), function blocks (FBs) and PLC data types of a TIA Portal project.
In defined properties and areas, functions (FCs), function blocks (FBs) and PLC data types ( in the following named as "objects") can be documented using _MarkDown_ (MD) as defined markup language. With "Code2Docu" this information and text elements are extracted from the objects, prepared for the documentation to be generated and stored accordingly.

TIA Portal Add-In Code2Docu for generating documentation TIA Portal Add-In Code2Docu for generating documentation

TIA Portal Add-In Code2Docu for generating documentation TIA Portal Add-In Code2Docu for generating documentation

Code2Docu" supports the following objects:

PLC blocks (FC, FB, Safety FC, Safety FB) in the programming languages SCL, STL, FBD, LAD
PLC data types (UDT, Safety UDT / subordinate structures)
PLC constants (Global constants)

Benefits of "Code2Docu"
Reduction of engineering and coordination efforts
Time savings and thus cost reduction
Increase of engineering efficiency
Same “look and feel” for all objects and all documentations, because of template based generation
Integration in CI/CD Workflows ("Continuous Integration" / "Continuous Delivery")
Updateability of the documentation
Document style
Change history
“Single point of source”, generation of the entire documentation and the user-defined documentation (user help) from one source
All documented languages are also stored in the objects as language (multilingual)
Documentation cannot be “lost” as it is stored together with the project
Developers can document their code directly –> acceptance criterion for code documentation

Documentation, TIA Portal Add-In Code2Docu and Demo project
https://support.industry.siemens.com/cs/attachments/109809007/109809007_TIA_AddIn_Code2Docu_DOC_V1_3_0_en.pdf
https://support.industry.siemens.com/cs/attachments/109809007/109809007_Code2Docu_V1.3.0.zip
https://support.industry.siemens.com/cs/attachments/109809007/109809007_TIA_AddIn_Code2Docu_PROJ_V1_3_0.zip
https://support.industry.siemens.com/cs/attachments/109809007/TIAPortalAdd-In-Code2Docu_1.3.0_READMEOSS_multilingual.html
https://support.industry.siemens.com/cs/attachments/109809007/109809007_OpenSourceSoftware.zip

[URL=https://www.file-upload.net/download-15238859/109809007_OpenSourceSoftware.zip.html]109809007_OpenSourceSoftware.zip[/URL]
[URL=https://www.file-upload.net/download-15238860/109809007_TIA_AddIn_Code2Docu_PROJ_V1_3_0.zip.html]109809007_TIA_AddIn_Code2Docu_PROJ_V1_3_0.zip[/URL]
[URL=https://www.file-upload.net/download-15238861/109809007_Code2Docu_V1.3.0.zip.html]109809007_Code2Docu_V1.3.0.zip[/URL]
[URL=https://www.file-upload.net/download-15238862/109809007_TIA_AddIn_Code2Docu_DOC_V1_3_0_en.pdf.html]109809007_TIA_AddIn_Code2Docu_DOC_V1_3_0_en.pdf[/URL]
