Test Suite Advanced: Example for checking TIA Portal projects for compliance with a programming style
https://support.industry.siemens.com/cs/document/109779806/
The application example provides you with a rule set for checking the Styleguide with TIA Portal Test Suite Advanced. A demo project shows you how the Styleguide check works.
For some rules and recommendations listed in the "Programming Styleguide" (Programming Guidelines and Programming Styleguide for SIMATIC S7-1200 and S7-1500)
https://support.industry.siemens.com/cs/document/81318674/
, a rule set was created and exported as an XML file. You will find the XML file as a download in the entry. You can import the rules defined in the rule set into your TIA Portal project and check your project for violations of the "Programming Styleguide".

The Test Suite supports the following rule types:
Casing
Name Contains
Metadata
Name Length
Prefix Suffix

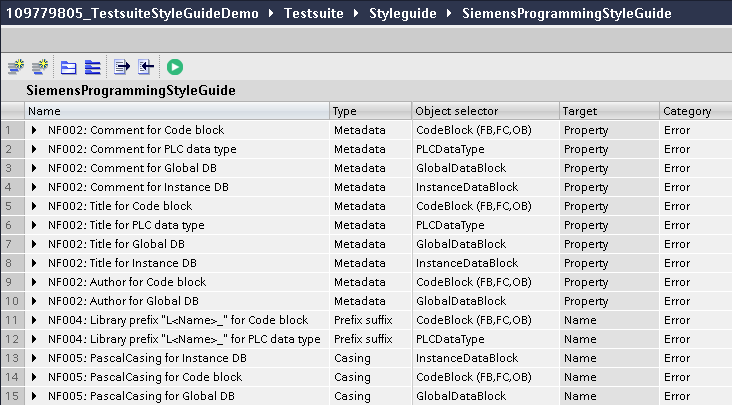

Test Suite Advanced: Example for checking TIA Portal Test Suite Advanced: Example for checking TIA Portal

Test Suite Advanced: Example for checking TIA Portal Test Suite Advanced: Example for checking TIA Portal

Requirements
Before you can import and use the rules in the rule set, the following requirements must be met.
TIA Portal V16 Update 1 is installed
TIA Portal Test Suite is installed
Documentation and rule set with demo project
https://support.industry.siemens.com/cs/attachments/109779806/109779806_TestSuite_Styleguide_DOC_v11_en.pdf
https://support.industry.siemens.com/cs/attachments/109779806/109779806_TestSuite_Styleguide_CODE_v12.zip

[URL=https://www.file-upload.net/download-15283943/109779806_TestSuite_Styleguide_CODE_v12.zip.html]109779806_TestSuite_Styleguide_CODE_v12.zip[/URL]
