 Posted: 28/09/2018 21:07 Post subject: TCP-Fileserver for S7 Controller |
 |
|
TCP-Fileserver for S7 Controller
https://support.industry.siemens.com/cs/document/109475508/
If you want to store and process only few, essential PLC data on PCs, then you will get with this example a convenient alternative.
This application shows you how the production data of all common S7 CPUs can be stored directly in the files of a Windows computer.

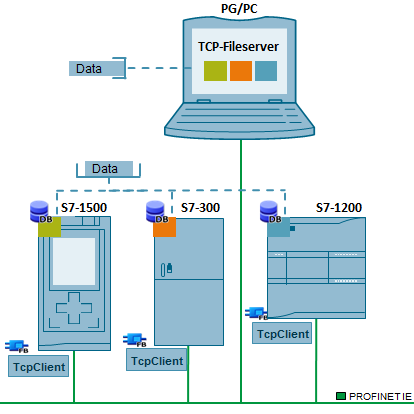

This application shows a convenient alternative to complex SCADA systems in the lower performance range. The application example consists of the following components:
the STEP 7 blocks "TcpClient" in the individual S7 stations, which prepare the data and send it to the PC station.
The "TCP-Fileserver" PC program receives the data from the SIMATIC stations and saves them line by line in the files.
The solution was realized for S7-300, S7-1200 and S7-1500 CPUs.
Configuration

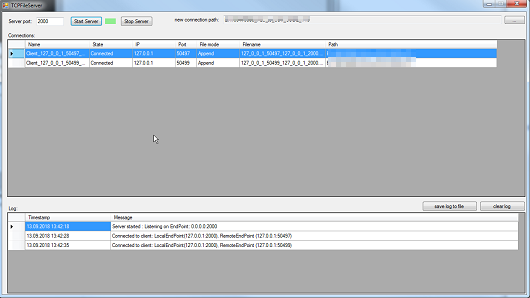

The user interface is designed as the following:
Documentation und example project TIA Portal (V15) and TCP-Fileserver
https://support.industry.siemens.com/cs/attachments/109475508/109475508_TCPFileServer_DOC_V20_en.pdf
https://support.industry.siemens.com/cs/attachments/109475508/109475508_TCPFileserver_PROJ_V2_0.zip |
|
