 Posted: 08/01/2015 20:12 Post subject: TagConverter für WinCC (TIA Portal) |
 |
|
TagConverter for WinCC (TIA Portal) v3.1
The WinCC TagConverter provides a fast and easy way to convert tags exported via a PLC editor to a compus that can be imported into WinCC (TIA Portal). The WinCC TagConverter produces output for the HMI systems SIMATIC Panels, WinCC Runtime Advanced and WinCC Runtime Professional. TagConverter gives the possibility to synchronize data between different PLC editors and WinCC (TIA Portal) but is not needed for project migration.
for:
Siemens STEP 7 V5.x ( 4188 KB )
Schneider / Modicon ProWORX,
Concept,
Unity Pro XL
Rockwell Automation
(AllenBradley) RSLogix 5,
RSLogix500,
RSLogix5000
new with V3.1:
RSLogix5000 from V20
Conversion of additional data types:
- Counter
- Timer
- Alias Tags
- moredimensional arrays
https://cache.automation.siemens.com/dnl/DE/DE0NjAxNQAA_56078300_DL/TagConverterV3_1_Installer.zip |
|
| Back to top |
|
 |
maersk
Member 3
Joined: 17 Aug 2014
Posts: 891
|
| Posted: 18/01/2015 13:53 Post subject: Re: TagConverter for WinCC (TIA Portal) v3.1 |
|
|
| maersk wrote: | TagConverter for WinCC (TIA Portal) v3.1
The WinCC TagConverter provides a fast and easy way to convert tags exported via a PLC editor to a compus that can be imported into WinCC (TIA Portal). The WinCC TagConverter produces output for the HMI systems SIMATIC Panels, WinCC Runtime Advanced and WinCC Runtime Professional. TagConverter gives the possibility to synchronize data between different PLC editors and WinCC (TIA Portal) but is not needed for project migration.
for:
Siemens STEP 7 V5.x ( 4188 KB )
Schneider / Modicon ProWORX,
Concept,
Unity Pro XL
Rockwell Automation
(AllenBradley) RSLogix 5,
RSLogix500,
RSLogix5000
new with V3.1:
RSLogix5000 from V20
Conversion of additional data types:
- Counter
- Timer
- Alias Tags
- moredimensional arrays
https://cache.automation.siemens.com/dnl/DE/DE0NjAxNQAA_56078300_DL/TagConverterV3_1_Installer.zip |
reuploaded:
https://www.mediafire.com/?yz6u9oi096tffgu |
|
| Back to top |
|
|
raluntitled
Junior
Joined: 05 Nov 2013
Posts: 3
|
| Posted: 20/01/2015 15:00 Post subject: |
|
|
| Thank you maersk |
|
| Back to top |
|
|
maersk
Member 3
Joined: 17 Aug 2014
Posts: 891
|
| Posted: 13/03/2015 15:37 Post subject: TagConverter for WinCC (TIA Portal) |
|
|
TagConverter for WinCC (TIA Portal)
https://support.industry.siemens.com/cs/document/56078300
https://cache.industry.siemens.com/dl/files/300/56078300/att_117086/v4/tagconverterv3_1_installer.zip |
|
| Back to top |
|
|
santo_domingo
Junior
Joined: 28 Mar 2017
Posts: 10
|
| Posted: 05/06/2017 18:40 Post subject: Re: TagConverter for WinCC (TIA Portal) |
|
|
| maersk wrote: | TagConverter for WinCC (TIA Portal)
https://support.industry.siemens.com/cs/document/56078300
https://cache.industry.siemens.com/dl/files/300/56078300/att_117086/v4/tagconverterv3_1_installer.zip |
PLEASE TELL ME IF THIS WORK ALSO ON tia v14 sp1? |
|
| Back to top |
|
|
maersk
Member 3
Joined: 17 Aug 2014
Posts: 891
|
| Posted: 18/05/2020 17:10 Post subject: TagConverter for WinCC (TIA Portal) |
|
|
TagConverter for WinCC (TIA Portal)
https://support.industry.siemens.com/cs/document/56078300/
By the help of WinCC TagConverter you import Tags on a easy way from different PLC-editors to WinCC (TIA Portal) May 2020: New version V3.2
The WinCC TagConverter provides a fast and easy way to convert tags exported via a PLC editor to a format that can be imported into WinCC (TIA Portal). The WinCC TagConverter produces output for the HMI systems SIMATIC Panels, WinCC Runtime Advanced and WinCC Runtime Professional. TagConverter gives the possibility to synchronize data between different PLC editors and WinCC (TIA Portal) but is not needed for project migration.

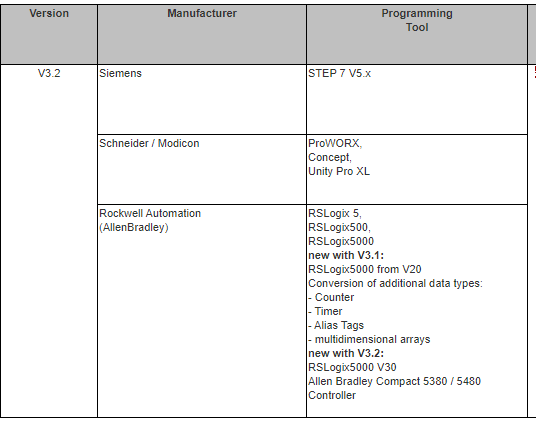

Overview of the tag converters for WinCC (TIA Portal)
Procedure:
SIMATIC PLCs

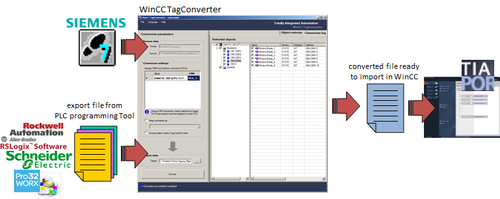

Open the TagConverter and realizate a new converter template. Define the storage location for the template. Select the import compus "SIMATIC S7" and afterwards connect to your STEP 7 V5.x project. Choose the tags and symbols which you need in your HMI project in WinCC (TIA Portal). The TagConverter will convert the selected data to a file format which can be imported in WinCC (TIA Portal).
3rd party PLC editors:
Export tag data from an editor of a supported PLC. Brief instructions will be provided by the Help of the WinCC TagConverter. With the WinCC TagConverter, the exported data will be converted to a WinCC (TIA Portal) import format.
Note:
The TagConverter V1.x for WinCC flexible can be found under the following link
https://support.industry.siemens.com/cs/document/22060779/
The TagConverter V2.x is completely replaced by the new version V3.x.
Starting with WinCC flexible 2005, tags can be imported as .csv file from an external data source. These tags can also originate from configuration packages for control programs by different manufacturers. The exported data has to be formatted accordingly and can then be imported into WinCC flexible.

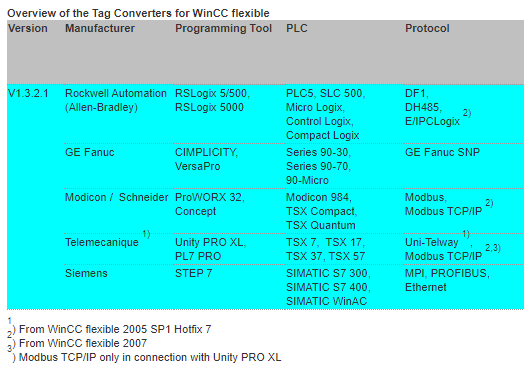

For the formatting of the tag data from control programs, converters are available. With the converters, tag lists of different export formats are converted into the .csv format, which can then be imported by WinCC flexible.

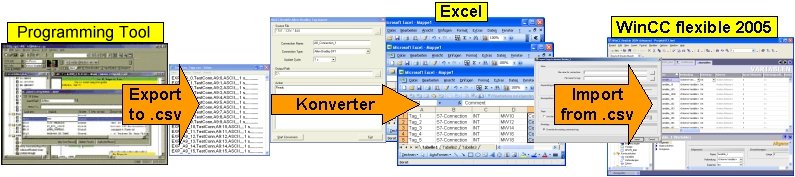

Illustration:
Process sequence of a tag import to WinCC flexible with preceding export and conversion.
For the tag converters, the following supply sources are offered:
WinCC flexible Product CD
Tag converters available at the release time of a WinCC flexible version will be supplied on the product CD.
Free Download
Tag converters available at or after the release time of a WinCC flexible version will be made available for download.
Download
https://ulozto.net/tamhle/x5ZbMn8TYGce
https://bayfiles.com/f8h6L60boc/tagconverter_1_3_2_zip
https://bayfiles.com/l6h8L407o4/TagConverterV3_2_Installer_zip
[url=http://www.girlshare.ro/3769917822]tagconverter_1_3_2.zip[/url]
[url=http://www.girlshare.ro/3769917823.1]TagConverterV3_2_Installer.zip[/url] |
|
