STEP 7 InfoBrowser V1.0 - Exporting STEP 7 project data to MS-Excel and accessing information in Online Support
https://support.industry.siemens.com/cs/document/22538970/step-7-infobrowser-v1-0-exporting-step-7-project-data-to-ms-excel-and-accessing-information-in-online-support
With the STEP 7 InfoBrowser you can read out the information from the STEP 7 project and export it to MS-Excel.

Nodes on the bus with addresses and MLFB no.
Modules used with addresses and MLFB no.
Firmware version of the modules used.
Icon IDs of signals used in the entire project.
System function blocks used, system functions, data blocks, inputs, timers and counters.
In addition to exporting data to Excel, the STEP 7 InfoBrowser also allows direct access to the information available in Online Support. In this way, with the întocmai designation of the module (MLFB no.) you can access the entries in Online Support to download the associated manuals or firmware updates, for example.

Access to information in the Internet is also possible from PCs that do not have STEP 7 installed.
The information on the project found using the STEP 7 InfoBrowser can be stored in a transfer file and then transferred to a PC with Internet connection. All you need is to have the STEP 7 InfoBrowser installed on the PC in order to be able to conveniently access the information in the Service and Support Portal.

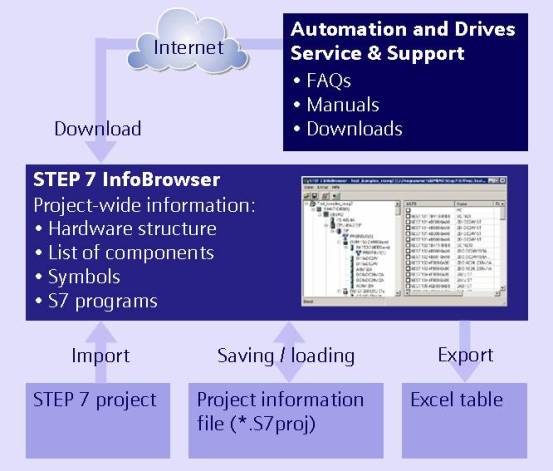

STEP 7 InfoBrowser V1.0 STEP 7 InfoBrowser V1.0

STEP 7 InfoBrowser V1.0 STEP 7 InfoBrowser V1.0

https://support.industry.siemens.com/cs/attachments/22538970/STEP7_InfoBrowser_V10.zip
