SIWAREX WP321 integration into Rockwell Studio 5000
https://support.industry.siemens.com/cs/document/109962979/

With the Siemens MultiFieldbus Controller (IM 155-6 MF HF V5.2), SIWAREX WP321 can easily be integrated into Rockwell Studio 5000. The MultiFieldbus Controller is configured as an EtherNet/IP I/O adapter, allowing SIWAREX WP321 to communicate with an Allen Bradley PLC.

With the addition of the Siemens Add-On Instruction (AOI), integration is done in minutes, permitting monitoring of process variables and read/write access of the SIWAREX WP321 data records.

A getting started project has also been created for Factory Talk ME, which allows you to monitor and configure SIWAREX WP321 from the popular Allen Bradley HMIs.

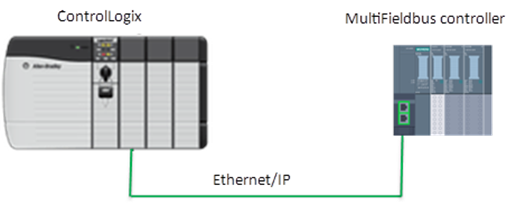

SIWAREX WP321 integration into Rockwell Studio 5000 SIWAREX WP321 integration into Rockwell Studio 5000

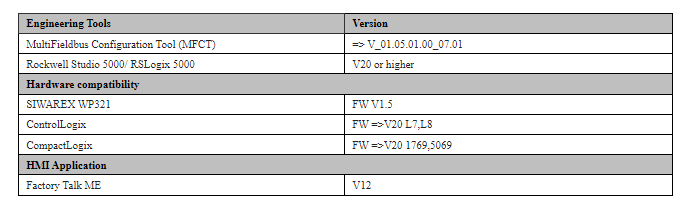

Compatibility
SIWAREX WP321 integration into Rockwell Studio 5000 SIWAREX WP321 integration into Rockwell Studio 5000

Steps required
Configure the MultiFieldbus controller via the MFCT
Import the EDS file, created by the MFCT, into Rockwell Studio 5000
Import the AOI into Rockwell Studio 5000
Create two tags

MFCT configuration project
https://support.industry.siemens.com/cs/attachments/109962979/MFCT___V1_0_0.zip

Studio 5000 sample project and AOI
SiwarexWP321_AOI_V1_0_0.L5X
SIWAREX_WP321_V1_0_0.ACD
https://support.industry.siemens.com/cs/attachments/109962979/PLC_V1_0_0.zip

HMI sample project
Sample HMI project for FactoryTalk View Machine Edition HMI_V1_0_0
https://support.industry.siemens.com/cs/attachments/109962979/HMI_V1_0_0.zip

Documents
https://support.industry.siemens.com/cs/attachments/109962979/MFCT_and_SIWAREX_WP321_WP341_WP351_configuration.pdf
https://support.industry.siemens.com/cs/attachments/109962979/AOI_getting_started_for_the_Rockwell_Automation_PLC_platform.pdf

[URL=https://www.file-upload.net/download-15308431/HMI_V1_0_0.zip.html]HMI_V1_0_0.zip[/URL]
[URL=https://www.file-upload.net/download-15308430/PLC_V1_0_0.zip.html]PLC_V1_0_0.zip[/URL]
[URL=https://www.file-upload.net/download-15308429/MFCT___V1_0_0.zip.html]MFCT___V1_0_0.zip[/URL]
[URL=https://www.file-upload.net/download-15308433/AOI_getting_started_for_the_Rockwell_Automation_PLC_platform.pdf.html]AOI_getting_started_for_the_Rockwell_Automation_PLC_platform.pdf[/URL]
[URL=https://www.file-upload.net/download-15308432/MFCT_and_SIWAREX_WP321_WP341_WP351_configuration.pdf.html]MFCT_and_SIWAREX_WP321_WP341_WP351_configuration.pdf[/URL]
