SITRANS/SIPART device library for SIMIT Simulation Platform
https://support.industry.siemens.com/cs/document/109757452/
We provide you with a library of device-specific simulation blocks from the SITRANS and SIPART device family. The simulation models simulate the behavior of the corresponding actuators and sensors in their most important properties, making them ideal for virtual commissioning of process plants.
SIMIT Simulation Platform contains several standard components, such as drives and valves, for simulating devices and measuring points. This standard functionality is not sufficient for the simulation for every device installed in the system since the behavior of field devices can have a decisive influence on the behavior of the overall system. Modern field devices offer a multitude of functions and parameters that are only very inconvenient to simulate or cannot to be simulated with the standard SIMIT tools.

Specific device models have the requirement to exchange measured or controlled values and status signals with the PCS 7 driver blocks. The dynamic device behavior is simulated in SIMIT. In this application example, you can download a library of specific simulation models of the SITRANS and SIPART

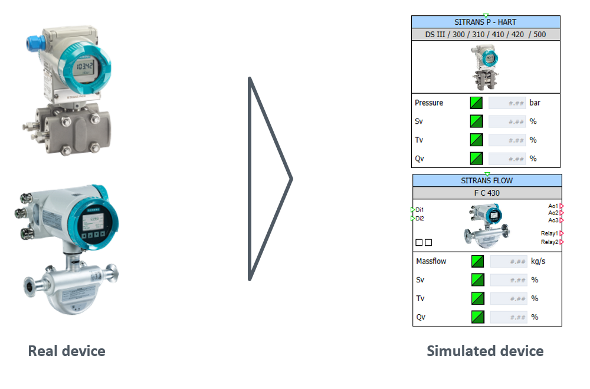

SITRANS/SIPART device library for SIMIT SITRANS/SIPART device library for SIMIT

SITRANS/SIPART device library for SIMIT SITRANS/SIPART device library for SIMIT

The device-specific simulation models offer you the following advantages:

Simulation of product-specific functions based on detailed device models
Increasing the accuracy and thus the benefit of the system model
Allows the determination of the optimal parameters of the field devices
Virtual commissioning of the devices in the context of plant simulation
Training of personnel in operator training systems (OTS) that realistically map the process behavior of the plant
The library for SIMIT SP V9.1 includes the simulation models of the following devices:
SITRANS FC430, F M MAG 5000/6000, FX330, FUS060
SITRANS P DS III, P300, P310, P410, P500
SITRANS LR250, LR560, Probe LU, LUT400
SITRANS TH300, TH400
SIPART PS 2
The library for SIMIT SP V10.1 includes additionally the simulation models of the following devices:
SITRANS FCT070
SITRANS P420
SITRANS TH320, TH420
The library for SIMIT SP V10.3 includes additionally the simulation tip of the following device:
SITRANS FST070
