SITOP PSU8400 with IO-Link: Faceplates and Communication Blocks
https://support.industry.siemens.com/cs/document/109825546/
Use the rapidly applicable faceplates and function blocks to connect the new controllable power supply SITOP PSU8400 with IO-Link interface to your plant. Information Additionally, control the power supply with your PLC.
Your task is to equip your automation plant with a diagnosable and controllable power supply. The power supply shall be communication-capable and integrated into the automation network. The status and diagnostic information of the power supply shall be displayed in the HMI stations for operator control and monitoring.

Solution

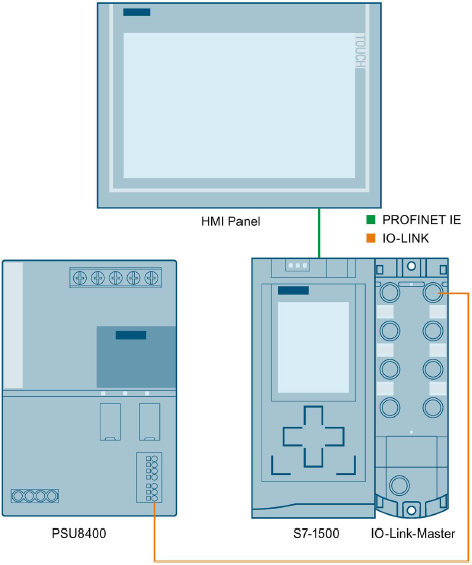

The application example shows you a possible way how to integrate the new controllable power supply SITOP PSU8400 with IO-Link into your application network. This introduces the diagnostic information to the controller and makes it possible for the PLC to control the power supply.

All relevant data and states of the SITOP PSU8400 are displayed conveniently on an HMI station. For this application case, the application example provides function blocks for

SIMATIC STEP 7 Professional (TIA Portal)
as well as HMI faceplates and HMI screen windows for

SIMATIC WinCC Comfort/Advanced/Professional,
SIMATIC WinCC Unified (TIA Portal).

SITOP PSU8400 with IO-Link: Faceplates and Communication Blo SITOP PSU8400 with IO-Link: Faceplates and Communication Blo

SITOP PSU8400 with IO-Link: Faceplates and Communication Blo SITOP PSU8400 with IO-Link: Faceplates and Communication Blo

Downloads
Contents of the library: function blocks for SIMATIC STEP 7 Professional (SIMATIC S7-300/400 and SIMATIC S7-1200/1500), faceplates for SIMATIC WinCC Comfort/Advanced and WinCC Unified.
https://support.industry.siemens.com/cs/attachments/109825546/109825546_LIBRARY_SITOP-PSU8400_MAN_V1_0_en.pdf
https://support.industry.siemens.com/cs/attachments/109825546/109825546_LPSU8400_TIA18_LIB_V1_0.zip
Software version
TIA Portal (STEP 7, WinCC)
V18
Firmware version
SITOP PSU8400
V1.0
