Library for Function blocks and faceplates for evaluation of the diagnostic interface "COM" of the SITOP PSU6200 and visualization of the device data
https://support.industry.siemens.com/cs/document/109760217/
The SITOP PSU6200 power supply has a diagnostic interface "COM" whose signal can be evaluated via a digital input in a higher-level controller, e.g. S7-1200 CPU, S7-1500 CPU and S7-300 CPU / S7-400 CPU. The following library helps you with that.

The diagnostic interface "COM" of the PSU6200 provides a signal that transmits the following device data as a Manchester code:
Voltage and current values
Nominal data
Device information
Temperature and operating hours

Solution
The following library provides function blocks for SIMATIC S7-1200, S7-1500, S7-300, S7-400 and faceplates for SIMATIC Comfort Panels and SIMATIC Unified Comfort Panels. The function blocks enable you to read in and evaluate the signal of the diagnostic interface "COM" via a digital input at the S7-CPU. You can use the faceplates to clearly display the device data on an HMI control panel.

Note
The library blocks for SIMATIC S7-1500 can also be used in an ET 200SP CPU and ET 200pro CPU.
The library blocks for SIMATIC S7-300 can also used in an ET 200S CPU and ET 200pro CPU

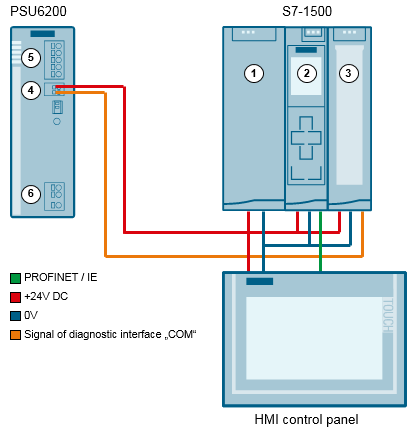

The following image shows the graphic representation of the solution.

SITOP PSU6200 Library SITOP PSU6200 Library

SITOP PSU6200 Library SITOP PSU6200 Library

Downloads
https://support.industry.siemens.com/cs/attachments/109760217/109760217_SITOP-PSU6200_MANUAL_TIAP_V17_V1_3_1_und_TIAP_V18_V1_4_EN.pdf
https://support.industry.siemens.com/cs/attachments/109760217/109760217_SITOP-PSU6200_LIB_TIAP_V17_V1_3_1.zip
https://support.industry.siemens.com/cs/attachments/109760217/109760217_SITOP-PSU6200_LIB_TIAP_V18_V1_4.zip
