SITOP Manager 1.0.0


Post new topic   Reply to topic    plc.myforum.ro Forum Index -> Simatic Automation Systems
View previous topic :: View next topic
Author Message
attys
Junior
Junior


Joined: 31 Jul 2018
Posts: 13
PostPosted: 13/09/2018 19:49    Post subject: SITOP Manager 1.0.0 Reply with quote
SITOP Manager tool for commissioning, engineering and monitoring SITOP power supplies
https://support.industry.siemens.com/cs/document/109760607/sitop-manager-%E2%80%93-the-tool-for-commissioning-engineering-and-monitoring-sitop-power-supplies
With this tool, commissioning, engineering and monitoring of SITOP power supplies with communication capabilities can be executed, independent of engineering frameworks like SIMATIC TIA Portal or SIMATIC PCS 7.
As of now, the SITOP Manager is available for download.
SITOP Manager functionalities
Code:
Scan a network (PROFINAT, Ethernet) and identify all supported SITOP devices connected to the network
Flash device LEDs to physically locate a SITOP device
Assign addresses (IP, subnet, gateway) and device name
Reset a SITOP device to factory default settings
Update firmware in a SITOP device
Online and offline engineering as well as monitoring of supported SITOP devices
Download and upload device configurations
Save device configurations to a project file
Save diagnosis information to a file
Monitoring and targeted shutdown of several PCs via SITOP Shutdown Service
Support of SITOP UPS1600 USB devices via SITOP Gateway Service
Use also with mobile devices possible

Supported devices
Code:
SITOP UPS1600 PN/USB:
- UPS1600 10 A, 20 A as of Product State (PS) "6" with firmware V2.2.2 or higher
- UPS1600 40 A as of Product State (PS) "3" with firmware V2.2.2 or higher
SITOP PSU8600:
- PSU8600 4 x 10 A as of Product State (PS) "2" with firmware V1.4.0 or higher
- PSU8600 4 x 5 A, 20 A, 40 A as of Product State (PS) "1" with firmware V1.4.0 or higher

to determine the firmware release of a SITOP UPS1600
https://support.industry.siemens.com/cs/attachments/109760607/EN_Firmwareversion_ermitteln.pdf
to determine the firmware release of a SITOP PSU8600
https://support.industry.siemens.com/cs/attachments/109760607/SITOP_PSU8600_check_firmware_release_en.pdf
Supported operating systems
Code:
Windows 10 Enterprise (64 bits) starting from Build 1511
Windows 7 Enterprise (32 bits and 64 bits) starting from SP1 Build 7601
Microsoft Windows Embedded Standard 7 (WES7) starting from SP1 Build 7601 (without language package Chinese)

Supported browsers for IPCs/PCs
Code:
Microsoft Internet Explorer V11
Mozilla Firefox V54
Google Chrome V60
Microsoft Edge V25

Supported browsers of mobile devices
Code:
Google Chrome V60 running on Android 6
Safari V9.1 running on iOS9

Download
https://support.industry.siemens.com/cs/attachments/109760607/Setup_SITOP-Manager_V1-0-0.zip

Last edited by attys on 14/06/2021 12:19; edited 1 time in total
Back to top
View user's profile Send private message
attys
Junior
Junior


Joined: 31 Jul 2018
Posts: 13
PostPosted: 14/06/2021 12:18    Post subject: SITOP Manager V1.2 Reply with quote
SITOP Manager V1.2
https://support.industry.siemens.com/cs/document/109760607/

Code:
New features of SITOP Manager V1.2
Commissioning, engineering, diagnostics, monitoring, buffering & PC-shutdown at applications with SIMATIC Industrial OS V1.5 / V2.0 / V2.1 for
o    SITOP UPS1600 PN/USB
o    system batteries SITOP BAT1600
o    battery module SITOP BAT1600 Battery Monitor
o    system batteries SITOP UPS1100
o    SITOP DC UPS modules with USB-interface
o    SITOP UPS500S / UPS501S
o    SITOP UPS500P
o    SITOP PSU8600 1AC, 3AC power supply systems
o    extension modules SITOP CNX8600
o    buffer modules SITOP BUF8600
o    UPS module SITOP UPS8600
o    battery modules SITOP BAT8600

Updated layout of the user interface (GUI) at SITOP Manager Service and SITOP Shutdown Service
Option for automatically switch off after a successful manual PC-shutdown in SITOP Shutdown Service
Updated USB driver in SITOP Gateway Service

Core  functionalities of SITOP Manager
Worldwide use by supporting 6 languages: 中文, Deutsch, English, Español, Français, Italiano
Scan a network (PROFINAT, Ethernet) and identify all supported SITOP devices connected to the network
Flash device LEDs to physically locate a SITOP device
Assign addresses (IP, subnet, gateway) and device name
Reset a SITOP device to factory default settings
Update firmware in a SITOP device
Online and offline engineering as well as monitoring
Download and upload device configurations
Save device configurations to a project file
Save diagnosis information to a file
Monitoring and targeted shutdown of several PCs via SITOP Shutdown Service
Support of SITOP UPS1600 USB devices via SITOP Gateway Service
Use also with mobile devices via WLAN possible

New supported devices
SITOP UPS1600 10 A, 20 A, 40 A PN/USB with latest Firmware V2.4
SITOP BAT1600 2.5 Ah LiFePO, 7.5 Ah LiFePO, 3.2 Ah Pb, 12 Ah Pb, 38 Ah Pb system batteries
SITOP BAT1600 Battery Monitor

Additionally supported devices
SITOP UPS1600 PN/USB:
- UPS1600 10 A, 20 A as of Product State (PS) "6" with firmware V2.2.2 or higher
- UPS1600 40 A as of Product State (PS) "3" with firmware V2.2.2 or higher
SITOP PSU8600:
- PSU8600 3AC 4 x 10 A as of Product State (PS) "2" with firmware V1.4.0 or higher
- PSU8600 3 AC 4 x 5 A, 20 A, 40 A as of Product State (PS) "1" with firmware V1.4.0 or higher
- PSU8600 1AC, 4 x 5 A as of Product State (PS) "1" with firmware V1.5.0 or higher
SITOP DC UPS modules 6 A, 15 A, 40 A with USB-Interface
SITOP UPS500S 15 A 2,5 kWs, 5 kWs
SITOP UPS500P 7A 5 kWs, 10 kWs

Supported operating systems
SIMATIC Industrial OS V2.0 / V2.1
SIMATIC Industrial OS 1.5
Microsoft Windows 10 (64-bit) Pro starting from Build 1511
Microsoft Windows 10 (64-bit) Enterprise starting from Build 1511 (incl. LTSB 2016)
Microsoft Windows Embedded Standard 7 (64-bit) starting from SP1 Build 7601
Microsoft Windows 7  Professional starting from SP1 Build 7601
Microsoft Windows 7  Enterprise starting from SP1 Build 7601
Microsoft Windows 7  Ultimate starting from SP1 Build 7601

Supported browsers for IPCs/PCs
Microsoft Internet Explorer V11
Mozilla Firefox V54
Google Chrome V60
Microsoft Edge V25

Supported browsers of mobile devices
Google Chrome V60 running on Android 6
Safari V9.1 running on iOS9

Download for Microsoft Windows
https://support.industry.siemens.com/cs/attachments/109760607/SITOP-Manager_Windows_V1-2-0.zip
Download for SIMATIC Industrial OS
https://support.industry.siemens.com/cs/attachments/109760607/SITOP-Manager_SIMATIC-Industrial-OS_V1-2-0.zip
Back to top
View user's profile Send private message
valz
Member 3
Member 3
valz

Joined: 26 Jul 2015
Posts: 771
PostPosted: 22/11/2021 13:09    Post subject: SITOP PSU6200 Function blocks and faceplates Reply with quote
Function blocks and faceplates for evaluation of the diagnostic interface "COM" of the SITOP PSU6200 and visualization of the device data
https://support.industry.siemens.com/cs/document/109760217/
The SITOP PSU6200 power supply has a diagnostic interface "COM" whose signal can be evaluated via a digital input in a higher-level controller, e.g. S7-1200 CPU, S7-1500 CPU and S7-300 CPU / S7-400 CPU.
The diagnostic interface "COM" of the PSU6200 provides a signal that transmits the following device data as a Manchester code:
Voltage and current values
Nominal data
Device information
Temperature and operating hours
Solution
The following library provides function blocks for SIMATIC S7-1200, S7-1500, S7-300, S7-400 and faceplates for SIMATIC Comfort Panels and SIMATIC Unified Comfort Panels. The function blocks enable you to read in and evaluate the signal of the diagnostic interface "COM" via a digital input at the S7-CPU. You can use the faceplates to clearly display the device data on an HMI control panel.
Note
The library blocks for SIMATIC S7-1500 can also be used in an ET 200SP CPU and ET 200pro CPU.
The library blocks for SIMATIC S7-300 can also used in an ET 200S CPU and ET 200pro CPU

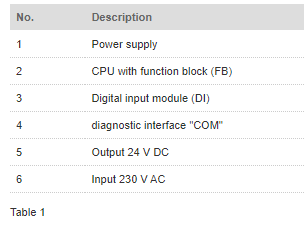

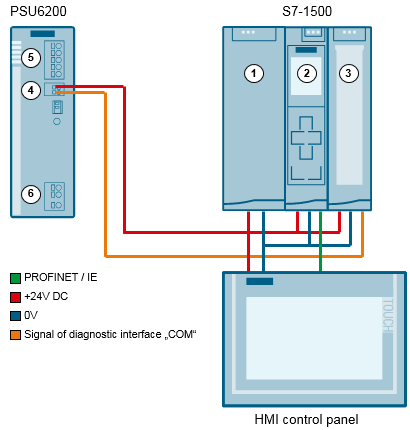

The following image shows the graphic representation of the solution.
SITOP Manager 1.0.0 SITOP Manager 1.0.0
SITOP Manager 1.0.0 SITOP Manager 1.0.0

Library
https://support.industry.siemens.com/cs/attachments/109760217/109760217_PSU6200_STEP7_V17_LIB_V13_en.pdf
https://support.industry.siemens.com/cs/attachments/109760217/109760217_PSU6200_STEP7_V17_LIB_V13_en.pdf
https://support.industry.siemens.com/cs/attachments/109760217/LPSU6200_V17.0-0_V1-3-0_V17.zip
https://support.industry.siemens.com/cs/attachments/109760217/LPSU6200_V15.0-0_V1-1-0.zip
https://support.industry.siemens.com/cs/attachments/109760217/LPSU6200_V5_V1-0-0.zip

https://ulozto.net/tamhle/oKB3X9gxvuRC/

[URL=https://www.file-upload.net/download-14755696/LPSU6200_V5_V1-0-0.zip.html]LPSU6200_V5_V1-0-0.zip[/URL]
[URL=https://www.file-upload.net/download-14755697/LPSU6200_V15.0-0_V1-1-0.zip.html]LPSU6200_V15.0-0_V1-1-0.zip[/URL]
[URL=https://www.file-upload.net/download-14755698/109760217_PSU6200_STEP7_V17_LIB_V13_en.pdf.html]109760217_PSU6200_STEP7_V17_LIB_V13_en.pdf[/URL]
[URL=https://www.file-upload.net/download-14755699/LPSU6200_V17.0-0_V1-3-0_V17.zip.html]LPSU6200_V17.0-0_V1-3-0_V17.zip[/URL]
Back to top
View user's profile Send private message
valz
Member 3
Member 3
valz

Joined: 26 Jul 2015
Posts: 771
PostPosted: 22/11/2021 13:24    Post subject: SITOP Manager V1.2.0 Reply with quote
SITOP Manager V1.2.0
https://support.industry.siemens.com/cs/document/109760607/

https://ulozto.net/file/CBXd0Wx9rHTy/sitop-manager-windows-v1-2-0-zip

[URL=https://www.file-upload.net/download-14755713/SITOP-Manager_Windows_V1-2-0.zip.html]SITOP-Manager_Windows_V1-2-0.zip[/URL]
Back to top
View user's profile Send private message
valz
Member 3
Member 3
valz

Joined: 26 Jul 2015
Posts: 771
PostPosted: 24/06/2022 12:20    Post subject: SITOP SEL1200/SEL1400 Function blocks and faceplates Reply with quote
Function blocks and faceplates for evaluation of the diagnostic interface "COM" of the SITOP SEL1200/SEL1400 and visualization of the device data
https://support.industry.siemens.com/cs/document/109763709/
The selectivity modules SITOP SEL1200 and SEL1400 have a diagnostic interface "COM" whose signal can be evaluated via a digital input in a high-lever controller, e. g. S7-1200 CPU and S7-1500 CPU.
The diagnostic interface "COM" of the SEL1200 and SEL1400 provides a signal that transmits the following device data as a Manchester code:

Status information
Current output current values at the outputs
Current limit values at the outputs
Device information
Solution
The following library provides function blocks for SIMATIC S7-1200, S7-1500 and S7-300/S7-400 as well as faceplates for SIMATIC Comfort Panels. The function blocks enable you to read in and evaluate the signal of the diagnostic interface "COM" via a digital input at the S7-CPU. You can use the faceplates to clearly display the device data on an HMI control panel.

Note
The library blocks for SIMATIC S7-1500 can also be used in an ET 200SP CPU and ET 200pro CPU.
The library blocks for SIMATIC S7-300/S7-400 can also be used in an ET 200S CPU and ET 200pro CPU.

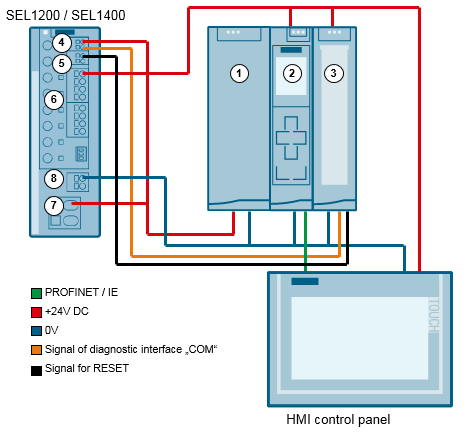

The following figure shows the graphic representation of the solution.

SITOP Manager 1.0.0 SITOP Manager 1.0.0

Library for WinCC Unified (TIA Portal V17)
https://support.industry.siemens.com/cs/attachments/109763709/109763709_SEL_STEP7_V17_LIB_V1-0-0_en.pdf
https://support.industry.siemens.com/cs/attachments/109763709/LSEL_V17.0-0_V1-0-2.zip
Library for WinCC Advanced (TIA Portal V15)
https://support.industry.siemens.com/cs/attachments/109763709/109763709_SEL_STEP7_V15_LIB_V10_en.pdf
https://support.industry.siemens.com/cs/attachments/109763709/LSEL_V15.0-0_V1-0-0.zip
https://support.industry.siemens.com/cs/attachments/109763709/LSEL_V5_V1-0-0.zip

https://ulozto.net/tamhle/CIBepJYJ6lZE/

https://anonfiles.com/h145X8r6yd/LSEL_V5_V1-0-0_zip
https://anonfiles.com/n042X7r3y0/109763709_SEL_STEP7_V17_LIB_V1-0-0_en_pdf
https://anonfiles.com/pb4fX9r9y8/109763709_SEL_STEP7_V15_LIB_V10_en_pdf
https://anonfiles.com/r24fX4r4y6/LSEL_V15.0-0_V1-0-0_zip
https://anonfiles.com/x14eX0rcy4/LSEL_V17.0-0_V1-0-2_zip
Back to top
View user's profile Send private message
valz
Member 3
Member 3
valz

Joined: 26 Jul 2015
Posts: 771
PostPosted: 02/09/2022 19:05    Post subject: SITOP PSU8600 Faceplates and Communication Blocks Reply with quote
SITOP PSU8600: Faceplates and Communication Blocks (TIA Portal, STEP 7 and WinCC / WinCC Unified)
https://support.industry.siemens.com/cs/document/102379345/
Use the rapidly applicable faceplates and function blocks in this sample application to connect the controllable power supply SITOP PSU8600 to your plant. Information is also given about how to control the power supply with your PLC.
Your task is to equip your automation plant with a diagnosable and controllable power supply.
The power supply shall be communication-capable and integrated into the automation network.
It shall be possible to switch individual plant components on and off.
The status and diagnostic information of the power supply shall be displayed in the HMI stations for operator control and monitoring.

Solution
The application example shows you a possible way how to integrate the controllable power supply SITOP PSU8600 into your application network.
This introduces the diagnostic information to the controller and makes it possible for the PLC to control the power supply.

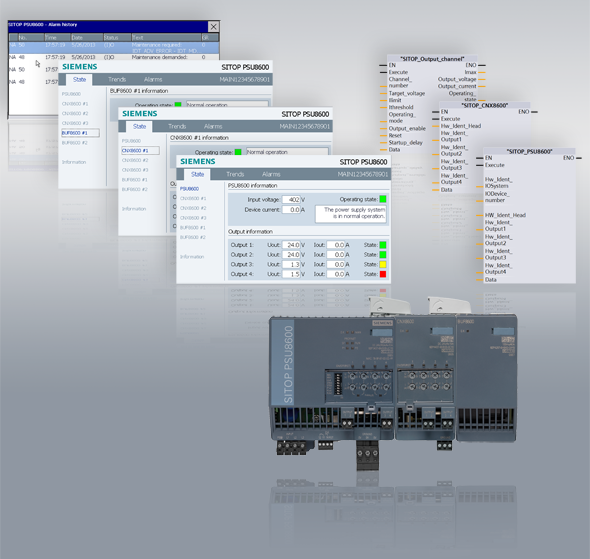

All relevant data and states of the SITOP PSU8600 are displayed conveniently on an HMI station.
For this application case, the application example provides function blocks for
SIMATIC STEP 7 V5 and
SIMATIC STEP 7 Professional (TIA Portal),
as well as HMI faceplates and HMI screen windows for
SIMATIC WinCC flexible 2008,
SIMATIC WinCC Comfort/Advanced/Professional,
SIMATIC WinCC Unified and
SIMATIC WinCC V7.
SITOP Manager 1.0.0 SITOP Manager 1.0.0

Downloads
TIA Portal
Contents of the library: function blocks for SIMATIC STEP 7 Professional (SIMATIC S7-300/400 and SIMATIC S7-1200/1500),
faceplates for SIMATIC WinCC Comfort/Advanced and WinCC Unified as well as screen windows for SIMATIC WinCC Professional.

SIMATIC WinCC flexible & SIMATIC STEP 7 V5
Contents of the library: function blocks for SIMATIC STEP 7 (SIMATIC S7-300/400),
faceplates for SIMATIC WinCC flexible and screen windows for SIMATIC WinCC.

How do you open, edit and upgrade global libraries in the TIA Portal?
https://support.industry.siemens.com/cs/document/37364723/
How do you migrate WinCC projects to new versions of WinCC from V4 to V7?
https://support.industry.siemens.com/cs/document/44029132/

https://ulozto.net/tamhle/CZpT05G8h5u2/

https://fastshare.cz/22746182/gsd-step7-v5-001-sitop-psu8600-1-5.zip
https://fastshare.cz/22746184/44029132-wincc-upgrade-v6.2-v7.5-v2-2-en.pdf
https://fastshare.cz/22746185/44029132-wincc-upgrade-v4-v6.2-en.pdf
https://fastshare.cz/22746187/102379345-sitop-psu8600-step7v5-fw1.1.0-docu-v2.1-en.pdf
https://fastshare.cz/22746188/102379345-sitop-psu8600-step7v5-fw1.1.0-lib-v2.1.zip
https://fastshare.cz/22746189/102379345-sitop-psu8600-step7v5-fw1.0.0-lib-v1.0.zip
https://fastshare.cz/22746190/102379345-sitop-psu8600-step7v5-fw1.0.0-docu-v1.0-en.pdf
https://fastshare.cz/22746192/102379345-sitop-psu8600-step7v5-fw1.3.0-doc-v2.3-en.pdf
https://fastshare.cz/22746194/102379345-sitop-psu8600-step7v5-fw1.3.0-lib-v2.3.1.zip
https://fastshare.cz/22746196/102379345-sitop-psu8600-step7v5-fw1.2.0-doc-v2.2-en.pdf
https://fastshare.cz/22746199/102379345-sitop-psu8600-step7v5-fw1.2.0-lib-v2.2.1.zip
https://fastshare.cz/22746200/102379345-sitop-psu8600-step7v5-fw1.4.0-doc-v3.0-en.pdf
https://fastshare.cz/22746201/102379345-sitop-psu8600-step7v5-fw1.4.0-lib-v3.0.1.zip
https://fastshare.cz/22746203/102379345-sitop-psu8600-step7v5-fw1.5.0-lib-v3.2.zip
https://fastshare.cz/22746205/102379345-sitop-psu8600-step7v5-fw1.5.0-doc-v3.2-en.pdf
https://fastshare.cz/22746206/102379345-sitop-psu8600-tia-v13-sp1-fw1.1.0-lib-v2.1.zip
https://fastshare.cz/22746208/102379345-sitop-psu8600-tia-v13-sp1-fw1.1.0-docu-v2.1-en.pdf
https://fastshare.cz/22746209/102379345-sitop-psu8600-tia-v13-sp1-fw1.1.0-docu-v1.1-en.pdf
https://fastshare.cz/22746211/102379345-sitop-psu8600-tia-v13-sp1-fw1.1.0-lib-v1.1.zip
https://fastshare.cz/22746212/102379345-sitop-psu8600-tia-v14-sp1-fw1.2.0-doc-v2.2-en.pdf
https://fastshare.cz/22746213/102379345-sitop-psu8600-tia-v14-sp1-fw1.2.0-lib-v2.2.zip
https://fastshare.cz/22746215/102379345-sitop-psu8600-tia-v14-sp1-v15-fw1.3.0-doc-v2.3-en.pdf
https://fastshare.cz/22746216/102379345-sitop-psu8600-tia-v15-fw1.3.0-lib-v2.3.zip
https://fastshare.cz/22746217/102379345-sitop-psu8600-tia-v14-sp1-v15.1-fw1.4.0-doc-v3.0-en.pdf
https://fastshare.cz/22746219/102379345-sitop-psu8600-tia-v15.1-fw1.4.0-lib-v3.0.zip
https://fastshare.cz/22746221/102379345-sitop-psu8600-tia-v16-fw1.5.0-lib-v3.2.zip
https://fastshare.cz/22746222/102379345-sitop-psu8600-tia-v16-v17-fw1.5.0-doc-v3.2-updated-en.pdf
https://fastshare.cz/22746224/102379345-sitop-psu8600-tia-v17-fw1.5.0-lib-v3.2.zip
https://fastshare.cz/22746226/102379345-sitop-psu8600-tia-v17-fw1.5.0-doc-v3.3-en.pdf
https://fastshare.cz/22746229/102379345-sitop-psu8600-tia-v17-fw1.5.0-lib-v3.3.zip
Back to top
View user's profile Send private message
valz
Member 3
Member 3
valz

Joined: 26 Jul 2015
Posts: 771
PostPosted: 16/05/2023 18:27    Post subject: SITOP Library V3.8 SITOP Library for SIMATIC PCS 7 Reply with quote
SITOP Library V3.8 SITOP Library for SIMATIC PCS 7
https://support.industry.siemens.com/cs/document/109476154/
SITOP Library for SIMATIC PCS 7 V8.2 with SP1, V9.0 with SP3 and V9.1 with SP1 or SP2

The new range of functions includes the support of
SITOP SEL1200 48 V / 4 x 10 A (Article No. 6EP4448-7FB00-3CX0)

The existing range of functions includes the support of
SITOP PSU6200: Power supplies with diagnostic interface UDI
SITOP SEL1200: Selectivity modules with diagnostic interface UDI
SITOP SEL1400: Selectivity modules with diagnostic interface UDI
SITOP PSU8200: 1- and 3-phase 24 V DC power supplies
SITOP PSE202U: Redundancy modules for decoupling of SITOP PSU8200
SITOP PSE200U: Selectivity modules for supervision of 24 V DC branches
SITOP PSU8600: 1- and 3-phase power supply systems with Ethernet/PROFINET interface
SITOP CNX8600: Expansion modules for the power supply system SITOP PSU8600
SITOP BUF8600: Buffer modules for the power supply system SITOP PSU8600 with capacitors
SITOP UPS8600: UPS module uninterruptable DC power supply (DC UPS) for the power supply system SITOP PSU8600 for buffering power outages up to hours
SITOP BAT8600 Pb: Battery modules for the power supply system SITOP PSU8600, 380 Wh with lead (Pb) accumulators
SITOP BAT8600 LiFePO4: Battery modules for the power supply system SITOP PSU8600, 264 Wh with lithium iron phosphate (LiFePO4) accumulators
SITOP UPS1600: Uninterruptable DC power supplies (DC UPS) with signaling contact
SITOP UPS1600: Uninterruptable DC power supplies (DC UPS) with Ethernet/PROFINET interface

Software requirements:
The library supports the following versions of SIMATIC PCS 7:
SIMATIC PCS 7 V8.2 with SP1
SIMATIC PCS 7 V9.0 with SP3
SIMATIC PCS 7 V9.1 with SP1 or SP2

Download:
https://support.industry.siemens.com/cs/attachments/109476154/SITOP_PCS7_APL_V38.zip

[URL=https://www.file-upload.net/download-15146057/SITOP_PCS7_APL_V38.zip.html]SITOP_PCS7_APL_V38.zip[/URL]

https://ulozto.net/file/7eakePXlvUVr/sitop-pcs7-apl-v38-zip
Back to top
View user's profile Send private message
valz
Member 3
Member 3
valz

Joined: 26 Jul 2015
Posts: 771
PostPosted: 18/08/2023 13:02    Post subject: SITOP OPC UA Excel C# SITOP PSU8600 / SITOP UPS1600 Reply with quote
SITOP OPC UA Excel C# application for SITOP PSU8600 / SITOP UPS1600
Stand-alone OPC UA Excel client for accessing the OPC UA Servers of the SITOP PSU8600 and SITOP UPS1600. The client is used to present the OPC UA functionality in connection with the SITOP PSU8600 and SITOP UPS1600 and shall enable a first contact with OPC UA in the SITOP environment.
The OPC UA Server of the SITOP PSU8600 and UPS1600 provides the device with a uniform, standardized communication interface that can be used independently of various OPC UA Clients.

The OPC UA application is a stand-alone Microsoft Excel C# application that works as an OPC UA Client. The application can be run independently of the TIA Portal.

SITOP Manager 1.0.0 SITOP Manager 1.0.0

Client-example for the OPC UA-Server of the SITOP PSU8600/UPS1600
The OPC UA Client was programmed in the C# programming language using Microsoft Visual Studio Professional 2022. For this purpose, the application uses the freely accessible OPC UA .NET-Stack of the OPC Foundation as well as the Siemens developed Helper-API 109737901.
Microsoft Excel is used as the user and display interface.

Layout and functionality of the application are specifically adapted to the hardware setup of a SITOP PSU8600 with basic unit (4 outputs) and buffer module (100ms), as well as a UPS1600 with a battery module (UPS1100, alternatively BAT1600). It is not necessary to have both hardware setups available to use the application.

To be able to use the OPC UA Client, you must activate the OPC UA Server of the power supplies and realizate a user with sufficient permissions. The default password of the user "admin" must be changed. It cannot be used for access.

The application requires full ead and write permissions. Therefore, there must be no remote connection to a controller.

Download
https://support.industry.siemens.com/cs/attachments/109755330/109755330_OPC_UA_Excel_Application_V4.0_DOC_en.pdf
https://support.industry.siemens.com/cs/attachments/109755330/109755330_OPC_UA_Excel_Application_V4.0.zip

https://ulozto.net/tamhle/lYgDHefORbTW/

[URL=https://www.file-upload.net/download-15179102/109755330_OPC_UA_Excel_Application_V4.0.zip.html]109755330_OPC_UA_Excel_Application_V4.0.zip[/URL]
[URL=https://www.file-upload.net/download-15179101/109755330_OPC_UA_Excel_Application_V4.0_DOC_en.pdf.html]109755330_OPC_UA_Excel_Application_V4.0_DOC_en.pdf[/URL]
Back to top
View user's profile Send private message
valz
Member 3
Member 3
valz

Joined: 26 Jul 2015
Posts: 771
PostPosted: 24/01/2024 19:13    Post subject: SITOP UPS1600: Faceplates and Communication Blocks Reply with quote
SITOP UPS1600: Faceplates and Communication Blocks (TIA Portal, STEP 7 and WinCC)
https://support.industry.siemens.com/cs/document/78817848/
Use the prepared and handy faceplates and function blocks of this application example in order to connect the uninterruptible SITOP UPS1600 power supply to your plant. Furthermore, you can find out how you can shut down your plant in a defined state for longer power failures and how to secure process values.
Your task is to equip your automation plant with the uninterruptible SITOP UPS1600 power supply.
The SITOP UPS1600 shall be communication-capable and integrated into the automation network via PROFINET. In the event of a power failure in an automation plant, the process values shall be saved and plant parts shall be protected from, for example, mechanical damage, through a defined stop.
The status and diagnostic information of the uninterruptible power supply shall be displayed in the HMI stations for operator control and monitoring.

Solution
Via the library the application example provides you various faceplates for SIMATIC STEP 7 V5 and SIMATIC STEP 7 (TIA Portal), as well as HMI faceplates and HMI screens for SIMATIC WinCC flexible 2008, SIMATIC WinCC Comfort/ Advanced/ Professional and SIMATIC WinCC V7.

Via the function blocks you read the device-specific data from the SITOP UPS1600 that you can then use for further processing in your controller. The prefabricated HMI faceplates and HMI screens are used for the visualization. Simply connect the data records through the faceplate interfaces.

The application example furthermore describes an option to put the automation plant to a defined state during a power failure and to perform a program-controlled switch-off the uninterruptible SITOP UPS1600 power supply.

V3.3
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_V18_STEP7V5WinCC_FW_2.5_DOC_V3.3_en.pdf
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_STEP7_WinCC_V18_FW2.5_LIB_V3.3.zip
V3.2
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_V17_STEP7V5WinCC_FW2.5_DOC_V3.2_en.pdf
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_STEP7_WinCC_V17_FW2.5_LIB_V3.2.zip
V3.1
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_V16_V17_STEP7V5WinCC_FW2.4_DOC_V3.1_updated_en.pdf
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_STEP7_WinCC_V17_FW2.4_LIB_V3.1.zip
V3.0
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_V15_1_V16_STEP7V5WinCC_FW2.3_DOC_V3.0_en.pdf
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_STEP7_WinCC_V15.1_FW2.3_LIB_V3.0.zip
V2.2
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_V14SP1_STEP7V5WinCC_FW2.1_DOC_V2.2_en.pdf
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_STEP7_WinCC_V14SP1_FW2.1_LIB_V2.2.zip
V2.1
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_V13SP1_STEP7V5WinCC_FW2.1_DOC_V2.1_en.pdf
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_STEP7_WinCC_V13SP1_FW2.1_LIB_V2.1.zip
V2.0
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_STEP7_WinCC_V13SP1_FW2.0_LIB_V2.0.zip
V1.1
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_V12SP1_STEP7V5WinCC_FW2.0_DOC_V1.1_en.pdf
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_STEP7_WinCC_V12SP1_FW2.0_LIB_V1.1.zip

SIMATIC WinCC, SIMATIC WinCC flexible and SIMATIC STEP 7 V5
V3.1
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_V16_V17_STEP7V5WinCC_FW2.4_DOC_V3.1_updated_en.pdf
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_STEP7V5_WinCC_7.5_FW2.4_LIB_V3.1.zip
V2.2
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_V14SP1_STEP7V5WinCC_FW2.1_DOC_V2.2_en.pdf
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_STEP7V5_WinCC_FW2.1_LIB_V2.2.0.zip
V1.1
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_TIA_V12SP1_STEP7V5WinCC_FW2.0_DOC_V1.1_en.pdf
https://support.industry.siemens.com/cs/attachments/78817848/78817848_UPS1600_STEP7V5_WinCC_FW2.0_LIB_V1.1.zip


[URL=https://www.file-upload.net/download-15260034/78817848_UPS1600_STEP7V5_WinCC_FW2.1_LIB_V2.2.0.zip.html]78817848_UPS1600_STEP7V5_WinCC_FW2.1_LIB_V2.2.0.zip[/URL]
[URL=https://www.file-upload.net/download-15260032/78817848_UPS1600_STEP7V5_WinCC_7.5_FW2.4_LIB_V3.1.zip.html]78817848_UPS1600_STEP7V5_WinCC_7.5_FW2.4_LIB_V3.1.zip[/URL]
[URL=https://www.file-upload.net/download-15260033/78817848_UPS1600_TIA_STEP7_WinCC_V12SP1_FW2.0_LIB_V1.1.zip.html]78817848_UPS1600_TIA_STEP7_WinCC_V12SP1_FW2.0_LIB_V1.1.zip[/URL]
[URL=https://www.file-upload.net/download-15260035/78817848_UPS1600_TIA_V12SP1_STEP7V5WinCC_FW2.0_Addon_DOC_V1.0_en.pdf.html]78817848_UPS1600_TIA_V12SP1_STEP7V5WinCC_FW2.0_Addon_DOC_V1.0_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260037/78817848_UPS1600_TIA_V12SP1_STEP7V5WinCC_FW2.0_DOC_V1.1_en.pdf.html]78817848_UPS1600_TIA_V12SP1_STEP7V5WinCC_FW2.0_DOC_V1.1_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260036/78817848_UPS1600_TIA_STEP7_WinCC_V13SP1_FW2.1_LIB_V2.1.zip.html]78817848_UPS1600_TIA_STEP7_WinCC_V13SP1_FW2.1_LIB_V2.1.zip[/URL]
[URL=https://www.file-upload.net/download-15260040/78817848_UPS1600_TIA_V13SP1_STEP7V5WinCC_FW2.1_DOC_V2.1_en.pdf.html]78817848_UPS1600_TIA_V13SP1_STEP7V5WinCC_FW2.1_DOC_V2.1_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260038/78817848_UPS1600_TIA_STEP7_WinCC_V14SP1_FW2.1_LIB_V2.2.zip.html]78817848_UPS1600_TIA_STEP7_WinCC_V14SP1_FW2.1_LIB_V2.2.zip[/URL]
[URL=https://www.file-upload.net/download-15260039/78817848_UPS1600_TIA_V14SP1_STEP7V5WinCC_FW2.1_DOC_V2.2_en.pdf.html]78817848_UPS1600_TIA_V14SP1_STEP7V5WinCC_FW2.1_DOC_V2.2_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260041/78817848_UPS1600_TIA_STEP7_WinCC_V15.1_FW2.3_LIB_V3.0.zip.html]78817848_UPS1600_TIA_STEP7_WinCC_V15.1_FW2.3_LIB_V3.0.zip[/URL]
[URL=https://www.file-upload.net/download-15260042/78817848_UPS1600_TIA_STEP7_WinCC_V17_FW2.4_LIB_V3.1.zip.html]78817848_UPS1600_TIA_STEP7_WinCC_V17_FW2.4_LIB_V3.1.zip[/URL]
[URL=https://www.file-upload.net/download-15260044/78817848_UPS1600_TIA_V16_V17_STEP7V5WinCC_FW2.4_DOC_V3.1_updated_en.pdf.html]78817848_UPS1600_TIA_V16_V17_STEP7V5WinCC_FW2.4_DOC_V3.1_updated_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260043/78817848_UPS1600_TIA_STEP7_WinCC_V17_FW2.5_LIB_V3.2.zip.html]78817848_UPS1600_TIA_STEP7_WinCC_V17_FW2.5_LIB_V3.2.zip[/URL]
[URL=https://www.file-upload.net/download-15260047/78817848_UPS1600_TIA_V17_STEP7V5WinCC_FW2.5_DOC_V3.2_en.pdf.html]78817848_UPS1600_TIA_V17_STEP7V5WinCC_FW2.5_DOC_V3.2_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260046/102379345_SITOP_PSU8600_STEP7V5_FW1.1.0_DOCU_V2.1_en.pdf.html]102379345_SITOP_PSU8600_STEP7V5_FW1.1.0_DOCU_V2.1_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260045/102379345_SITOP_PSU8600_STEP7V5_FW1.1.0_LIB_V2.1.zip.html]102379345_SITOP_PSU8600_STEP7V5_FW1.1.0_LIB_V2.1.zip[/URL]
[URL=https://www.file-upload.net/download-15260050/102379345_SITOP_PSU8600_STEP7V5_FW1.0.0_LIB_V1.0.zip.html]102379345_SITOP_PSU8600_STEP7V5_FW1.0.0_LIB_V1.0.zip[/URL]
[URL=https://www.file-upload.net/download-15260048/102379345_SITOP_PSU8600_STEP7V5_FW1.0.0_DOCU_V1.0_en.pdf.html]102379345_SITOP_PSU8600_STEP7V5_FW1.0.0_DOCU_V1.0_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260049/102379345_SITOP_PSU8600_STEP7V5_FW1.3.0_LIB_V2.3.1.zip.html]102379345_SITOP_PSU8600_STEP7V5_FW1.3.0_LIB_V2.3.1.zip[/URL]
[URL=https://www.file-upload.net/download-15260051/102379345_SITOP_PSU8600_STEP7V5_FW1.3.0_DOC_V2.3_en.pdf.html]102379345_SITOP_PSU8600_STEP7V5_FW1.3.0_DOC_V2.3_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260054/102379345_SITOP_PSU8600_STEP7V5_FW1.3.0_DOC_V2.3_en.pdf.html]102379345_SITOP_PSU8600_STEP7V5_FW1.3.0_DOC_V2.3_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260052/102379345_SITOP_PSU8600_STEP7V5_FW1.2.0_LIB_V2.2.1.zip.html]102379345_SITOP_PSU8600_STEP7V5_FW1.2.0_LIB_V2.2.1.zip[/URL]
[URL=https://www.file-upload.net/download-15260053/102379345_SITOP_PSU8600_STEP7V5_FW1.2.0_DOC_V2.2_en.pdf.html]102379345_SITOP_PSU8600_STEP7V5_FW1.2.0_DOC_V2.2_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260057/102379345_SITOP_PSU8600_STEP7V5_FW1.4.0_LIB_V3.0.1.zip.html]102379345_SITOP_PSU8600_STEP7V5_FW1.4.0_LIB_V3.0.1.zip[/URL]
[URL=https://www.file-upload.net/download-15260056/102379345_SITOP_PSU8600_STEP7V5_FW1.4.0_DOC_V3.0_en.pdf.html]102379345_SITOP_PSU8600_STEP7V5_FW1.4.0_DOC_V3.0_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260055/102379345_SITOP_PSU8600_STEP7V5_FW1.5.0_LIB_V3.2.zip.html]102379345_SITOP_PSU8600_STEP7V5_FW1.5.0_LIB_V3.2.zip[/URL]
[URL=https://www.file-upload.net/download-15260058/102379345_SITOP_PSU8600_STEP7V5_FW1.5.0_DOC_V3.2_en.pdf.html]102379345_SITOP_PSU8600_STEP7V5_FW1.5.0_DOC_V3.2_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260059/102379345_SITOP_PSU8600_TIA_V15.1_FW1.4.0_LIB_V3.0.zip.html]102379345_SITOP_PSU8600_TIA_V15.1_FW1.4.0_LIB_V3.0.zip[/URL]
[URL=https://www.file-upload.net/download-15260060/102379345_SITOP_PSU8600_TIA_V14_SP1_V15.1_FW1.4.0_DOC_V3.0_en.pdf.html]102379345_SITOP_PSU8600_TIA_V14_SP1_V15.1_FW1.4.0_DOC_V3.0_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260061/102379345_SITOP_PSU8600_TIA_V16_FW1.5.0_LIB_V3.2.zip.html]102379345_SITOP_PSU8600_TIA_V16_FW1.5.0_LIB_V3.2.zip[/URL]
[URL=https://www.file-upload.net/download-15260063/102379345_SITOP_PSU8600_TIA_V17_FW1.5.0_LIB_V3.2.zip.html]102379345_SITOP_PSU8600_TIA_V17_FW1.5.0_LIB_V3.2.zip[/URL]
[URL=https://www.file-upload.net/download-15260064/102379345_SITOP_PSU8600_TIA_V17_FW1.5.0_LIB_V3.3.zip.html]102379345_SITOP_PSU8600_TIA_V17_FW1.5.0_LIB_V3.3.zip[/URL]
[URL=https://www.file-upload.net/download-15260062/102379345_SITOP_PSU8600_TIA_V16-V17_FW1.5.0_DOC_V3.2_updated_en.pdf.html]102379345_SITOP_PSU8600_TIA_V16-V17_FW1.5.0_DOC_V3.2_updated_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260066/102379345_SITOP_PSU8600_TIA_V17_FW1.5.0_DOC_V3.3_en.pdf.html]102379345_SITOP_PSU8600_TIA_V17_FW1.5.0_DOC_V3.3_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260065/102379345_SITOP_PSU8600_TIA_V18_FW1.5.0_LIB_V3.4.zip.html]102379345_SITOP_PSU8600_TIA_V18_FW1.5.0_LIB_V3.4.zip[/URL]
[URL=https://www.file-upload.net/download-15260067/102379345_SITOP_PSU8600_TIA_V18_FW1.5.0_DOC_V3.4_en.pdf.html]102379345_SITOP_PSU8600_TIA_V18_FW1.5.0_DOC_V3.4_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15260068/109760056_DynamicAlarmFilter_PROJ_V20.zip.html]109760056_DynamicAlarmFilter_PROJ_V20.zip[/URL]
[URL=https://www.file-upload.net/download-15260069/109760056_Unified_AlarmLoggingDynamicFilter_V20_en.pdf.html]109760056_Unified_AlarmLoggingDynamicFilter_V20_en.pdf[/URL]
Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic    plc.myforum.ro Forum Index -> Simatic Automation Systems All times are GMT + 2 Hours
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum


Powered by phpBB © 2001, 2005 phpBB Group
Fa-ti si tu propriul forum GRATUIT, pe www.myforum.ro
