 Posted: 28/01/2019 13:24 Post subject: Sinumerik 808D Turning to milling conversion |
 |
|
I can purchase a Sinumerik 808D PPU 6FC5370-2AT03-0AA0 , this is the turning variiant, i would like to use this for a milling machine. Is it possible to use this PPU also for milling (as there is a PPU 6FC5370-2AM03-0AA0).
Thanks, |
|
| Back to top |
|
 |
RATstone
Junior
Joined: 19 Jan 2019
Posts: 3
|
| Posted: 28/01/2019 17:27 Post subject: |
|
|
I don't think you can...the software is the same..the hardware is as in..
https://mall.industry.siemens.com/mall/en/ro/Catalog/Products/10215759
https://mall.industry.siemens.com/mall/en/ro/Catalog/Products/10215758
SINUMERIK 808D ADVANCED Programming and Operating Manual (ISO Turning/Milling)
https://support.industry.siemens.com/cs/attachments/109759974/808D_ADV_ISO_dialects_op_man_0718_en-US.pdf
SINUMERIK 808D ADVANCED Parameter Manual
https://support.industry.siemens.com/cs/attachments/109759977/808D_ADV_lists_man_0718_en-US.pdf
SINUMERIK 808D ADVANCED Programming and Operating Manual (Milling)
https://support.industry.siemens.com/cs/attachments/109759981/808D_ADV_milling_op_man_0718_en-US.pdf
SINUMERIK 808D ADVANCED Programming and Operating Manual (Manual Machine Plus Turning)
https://support.industry.siemens.com/cs/attachments/109759979/808D_ADV_mmplus_turning_op_man_0718_en-US.pdf
SINUMERIK 808D ADVANCED Programming and Operating Manual (Turning)
https://support.industry.siemens.com/cs/attachments/109759980/808D_ADV_turning_op_man_0718_en-US.pdf
SINUMERIK 808D ADVANCED Programming and Operating Manual (ISO Turning/Milling)
https://support.industry.siemens.com/cs/attachments/109759974/808D_ADV_ISO_dialects_op_man_0718_en-US.pdf |
|
| Back to top |
|
|
Kevin_w_123
Junior
Joined: 17 Nov 2018
Posts: 3
|
| Posted: 28/01/2019 17:48 Post subject: |
|
|

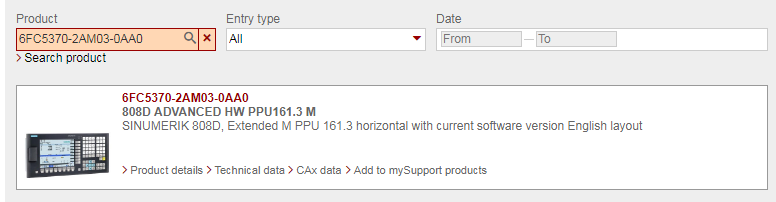

As far as i can see there is just one nr different in the siemens part number:
6FC5370-2AT03-0AA0
6FC5370-2AM03-0AA0
It's also the same manual, so maybe there is just a difference in the licenses that are provided which each version. |
|
| Back to top |
|
|
RATstone
Junior
Joined: 19 Jan 2019
Posts: 3
|
| Posted: 28/01/2019 18:04 Post subject: |
|
|
| Kevin_w_123 wrote: | As far as i can see there is just one nr different in the siemens part number:
6FC5370-2AT03-0AA0
6FC5370-2AM03-0AA0
It's also the same manual, so maybe there is just a difference in the licenses that are provided which each version. |

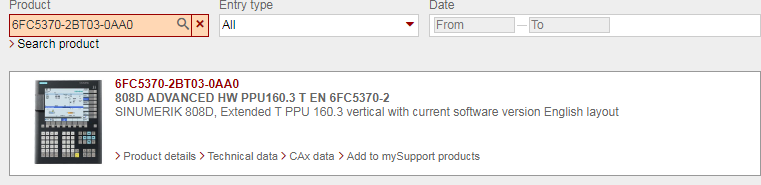

Take a look at hardware..it's vertical and horizontal..
It could works however...you are right...
There is however some problems with the other components... |
|
| Back to top |
|
|
RATstone
Junior
Joined: 19 Jan 2019
Posts: 3
|
| Posted: 28/01/2019 18:29 Post subject: |
|
|

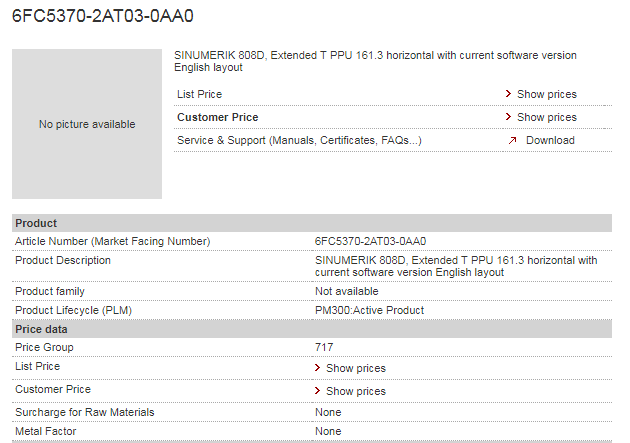

In mall there is no image
https://mall.industry.siemens.com/mall/en/WW/Catalog/Product/6FC5370-2AT03-0AA0

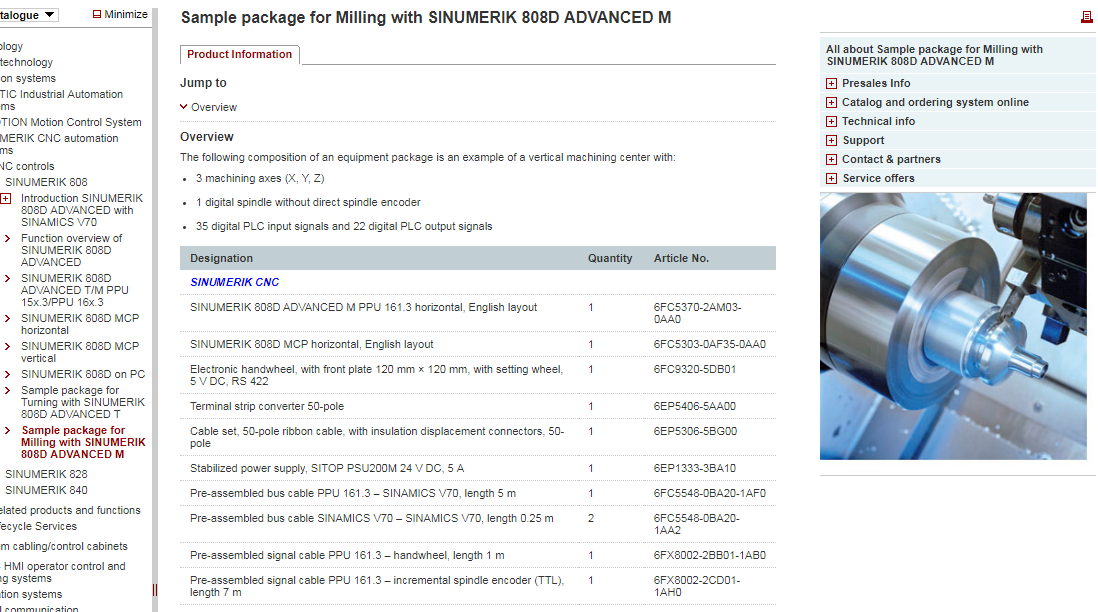

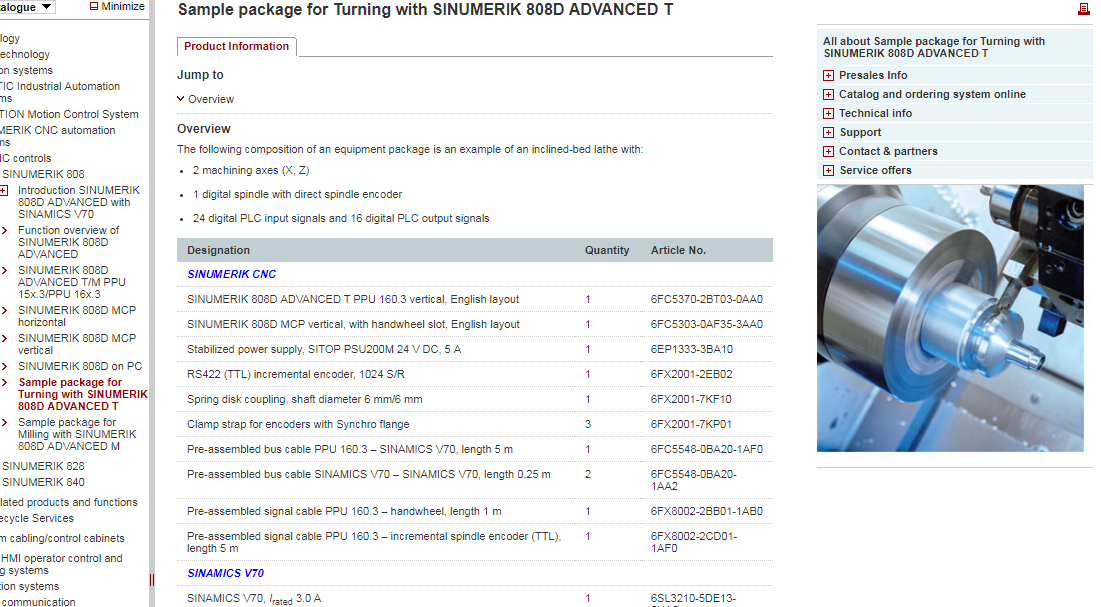

However in the catalog you can see..
The SINUMERIK 808D ADVANCED PPU 15x.3/PPU 16x.3 is an
operator-panel-based CNC, preconfigured for use in modern
basic standard turning and milling machines.
https://cache.industry.siemens.com/dl/files/169/109752169/att_962034/v1/motion-control-NC81-1-2019-complete-English.pdf
So you can use for sure both in turning/milling..
Good luck!!! |
|
| Back to top |
|
|
Kevin_w_123
Junior
Joined: 17 Nov 2018
Posts: 3
|
| Posted: 29/01/2019 00:40 Post subject: |
|
|
| I’m also thinking its the same hardware but like in the catalog it says that the system is pre-configurated. So maybe there is another software version or licenses in it... does anyone know ? |
|
