 Posted: 28/06/2019 13:15 Post subject: SINEC NMS V1.0 software |
 |
|
SINEC NMS V1.0 software
https://support.industry.siemens.com/cs/document/109762387/sinec-nms-v1-0-software

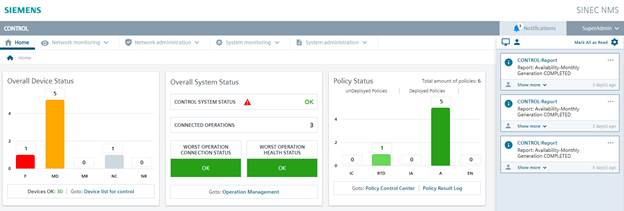

The SINEC NMS software is a network management system for monitoring and managing industrial networks. It enables you to fully visualize and monitor networks. Using SNMP and simultaneous diagnostics with SIMATIC and PROFINET mechanisms, you can map many aspects of plant and network diagnostics in just one tool. Using the distributed approach of SINEC NMS, the network infrastructures can be expanded at any time. The acquired data is stored in a long-term archive and can be evaluated and displayed as necessary. The predefined network diagnostics can also be seamlessly integrated into HMI/SCADA systems (e.g. WinCC, PCS 7) via OPC UA and web mechanisms.
In addition, SINEC NMS enables you to configure the network infrastructure. Using the rule-based approach, you can configure across devices in the network independent of device types or you can regularly back up the device configuration to keep up with configuration changes. Another major point is the central function for a firmware update in the network infrastructure.
SINEC NMS V1.0
https://support.industry.siemens.com/cs/attachments/109762387/Readme.htm
https://support.industry.siemens.com/cs/attachments/109762387/SINEC_NMS_V1.0.exe
Update 1 for SINEC NMS V1.0
https://support.industry.siemens.com/cs/document/109768724/release-of-update-1-for-sinec-nms-v1-0
Update 1 contains the following improvements:
| Code: | When restoring a device backup, the device backup is provided the currently known SNMP and CLI user. The device therefore remains accessible after a system restore even when user data has been changed since the time of the backup.
Improvements in the handling (editing) of device backups.
Support of additional device families for the device backup (including comparison and editing) For further details, see the supplied ReadMe.htm.
Installation of the HSPs (Hardware Support Package) via the web UI. HSPs are then automatically distributed throughout the entire system.
SINEC NMS shows the installed version of the control and all operations in the "Operation Monitor". Inconsistencies of the installed version are clearly displayed in the web UI.
Improvements in combination with SINEC NMS and UMC.
Improvements in the handling of device areas.
The password of the device user "Admin" can be changed.
Improvements in the handling of policies (rules).
Minor improvements to the web UI. |
https://support.industry.siemens.com/cs/attachments/109768724/OSS_SINEC-NMS_99.pdf
https://support.industry.siemens.com/cs/attachments/109768724/SINECNMS_V1.0_UPD1.exe
https://support.industry.siemens.com/cs/attachments/109768724/ReadMe.html |
|
