 Posted: 25/03/2021 17:50 Post subject: SINAMICS SDC: Serial Drive Commissioner |
 |
|
SINAMICS SDC: Serial Drive Commissioner
https://support.industry.siemens.com/cs/document/109774753/
The openness application SINAMICS SDC (Serial Drive Commissioner) provides functionality to copy, update and download numeroase drives. The PROFINET drives of the SINAMICS G product line and SINAMICS S210 included in SINAMICS Startdrive are supported.
When commissioning series of drives, the time expenditure of entering parameters for identical drives is an important factor. Multiple drives are frequently given identical parameters, yet each drive must be configured by hand, its parameters entered, and loaded.

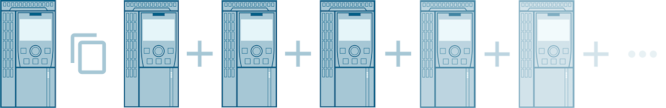

The SINAMICS SDC (Serial Drive Commissioner) application supports the creation of arbitrarily many drives with the help of a master drive. As an option, the copies can be interfaced to the same IO system as the master and a partner port interconnection (topology) from copy to copy can be performed.
Moreover, using SINAMICS SDC the configuration of a master drive can be transferred to any number of compatible drives. Drivespecific properties such as PROFINET settings, the PROFIsafe address, I/O addresses and the partner port interconnection are retained.

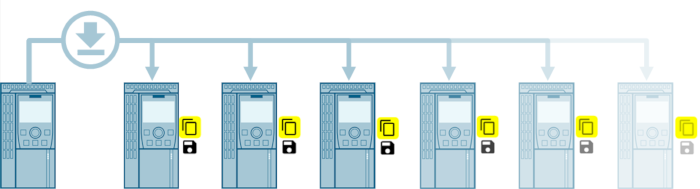

All drive profiles can then be loaded from the offline project to the drives. Once loading is complete the safety parameters can also be copied, and the obligatory failsafe copying of the driver parameters (RAM to ROM) can be performed
The devices of the SINAMICS G product line and SINAMICS S210 drives are supported.

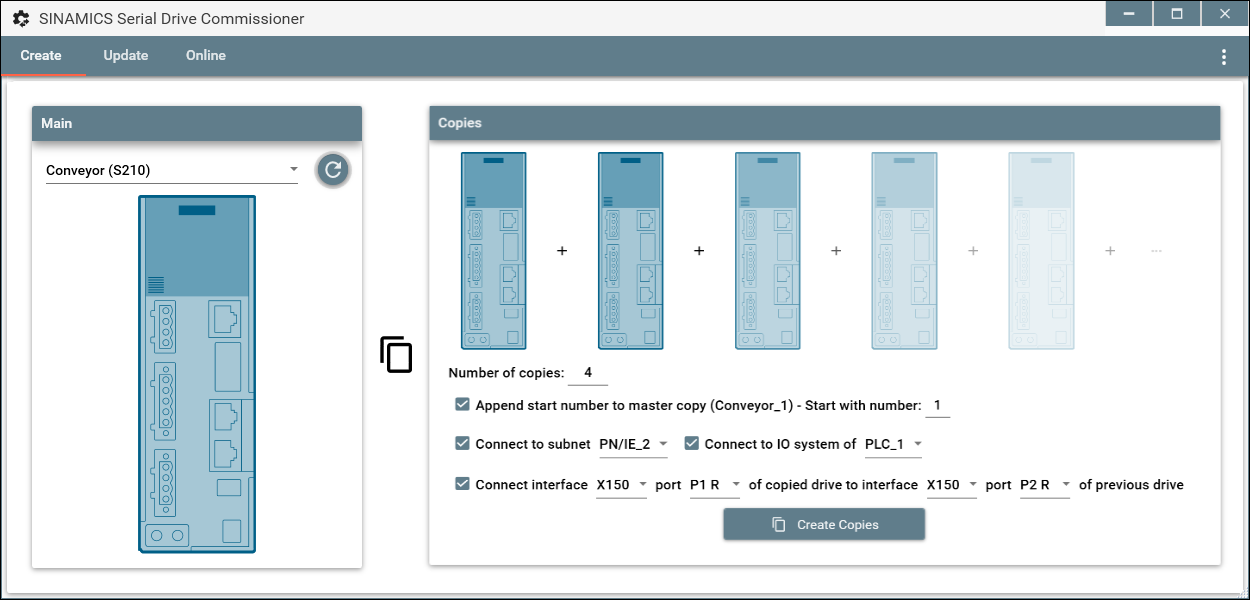

Create

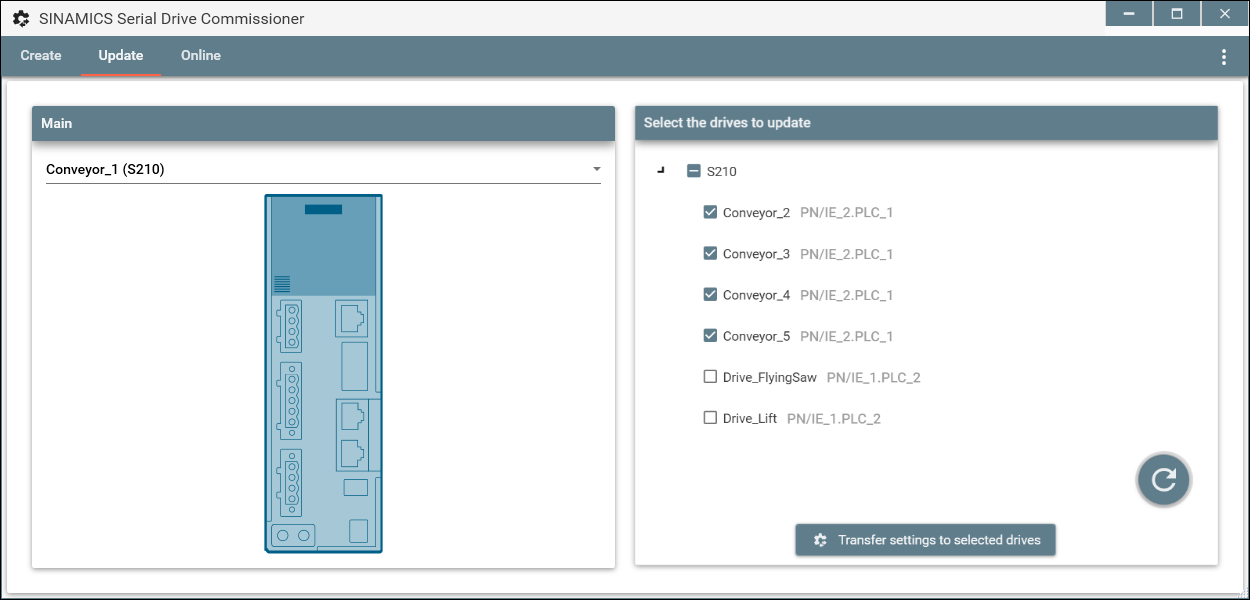

Update

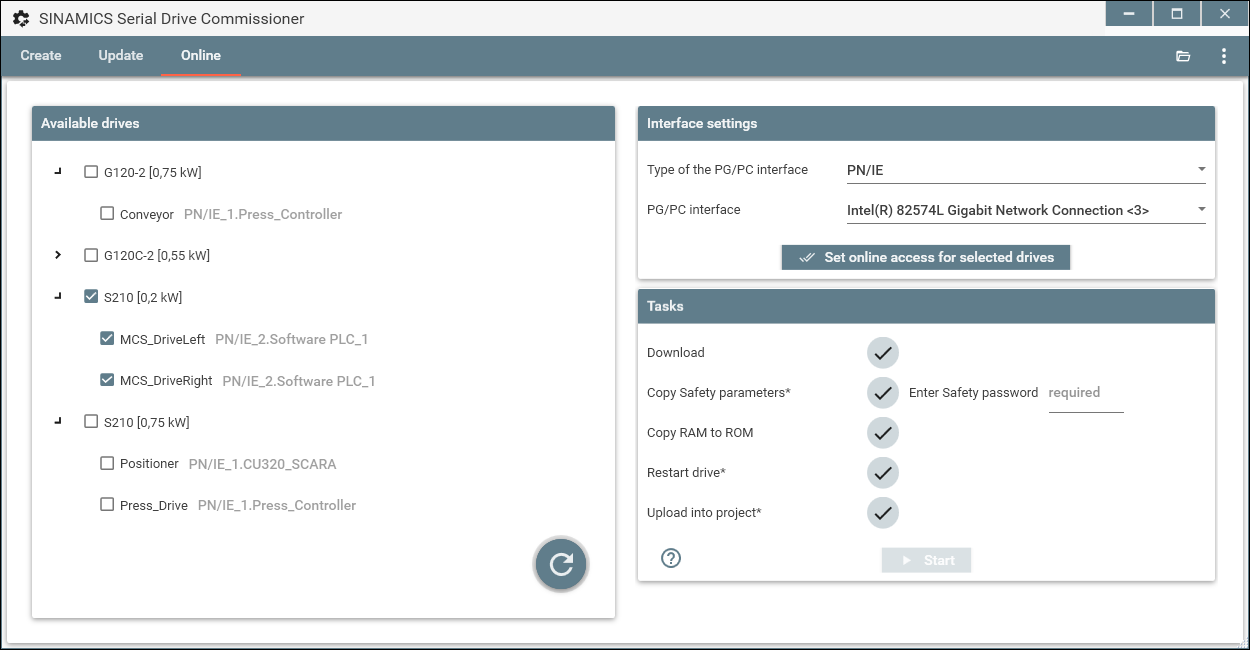

Online
Download
https://support.industry.siemens.com/cs/attachments/109774753/109774753_SinamicsSDC_DOC_V12_en.pdf
https://support.industry.siemens.com/cs/attachments/109774753/109774753_SinamicsSDC_APP_V1.2.61659.8941.zip
https://anonfiles.com/2eP98am3u4/109774753_SinamicsSDC_DOC_V12_en_pdf
https://anonfiles.com/IfP28ambu9/109774753_SinamicsSDC_APP_V1.2.61659.8941_zip
https://anonfiles.com/AaSa80mdu2/Presentation_-_SINAMICS_SDC_Serial_Drive_Commissioner_mp4 |
|
