SINAMICS S120: Cross-cutter application with DCB extension
https://support.industry.siemens.com/cs/document/109477746/

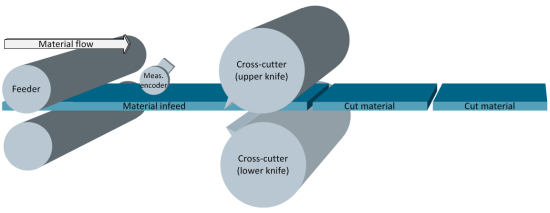

Typically, a cross-cutter comprises a rotating roll equipped with a knife, which cuts a material web transverse to the direction of motion, generally in identically large sections (formats).

SINAMICS S120: Cross-cutter application with DCB extension SINAMICS S120: Cross-cutter application with DCB extension

SINAMICS S120: Cross-cutter application with DCB extension SINAMICS S120: Cross-cutter application with DCB extension

In order to allow various cut lengths (formats), the knife drive must have a motion profile, which during the cut moves the knife in synchronism with the belt – and outside the cutting range specifies suitable deceleration or acceleration rates before the velocity is synchronized again with the belt for the next cut. The saw is synchronized with the material using the position sensing function of an upstream feed drive or using a measuring wheel.

Possible Leading Value Sources
Speed Controlled Leading Axis
Measuring Wheel (e.g. Leading Value Encoder)
Leading Value Simulation

Functions
Real leading axis /measuring wheel
Virtual leading axis / test operation
Measuring wheel correction
Traversing to maintenance position
Single cut
Test cut
Continuous cutting
Cutting curve
Material thickness compensation
Autonomous speed in the cutting area
Overspeed in the cutting area
Multi-knife systems
Positioning Jogging
Print mark correction on the leading axis side
Flying homing for following axis and real leading axis
Homing for following axis and real leading axis
Dead time compensation

Additional Use-Cases
Perforating
Sealing or embossing
Cross Cutter with several knifes
Download
https://support.industry.siemens.com/cs/attachments/109477746/DCB_Cross_cutter.pdf
https://support.industry.siemens.com/cs/attachments/109477746/109477746_S120_Cross-cutter_V6_0_1_en.pdf
https://support.industry.siemens.com/cs/attachments/109477746/109477746_Software_S120_Crosscutter_V6_0_1.zip

[URL=https://www.file-upload.net/download-15155147/109477746_S120_Cross-cutter_V6_0_1_en.pdf.html]109477746_S120_Cross-cutter_V6_0_1_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15155148/109477746_Software_S120_Crosscutter_V6_0_1.zip.html]109477746_Software_S120_Crosscutter_V6_0_1.zip[/URL]
[URL=https://www.file-upload.net/download-15155146/DCB_Cross_cutter.pdf.html]DCB_Cross_cutter.pdf[/URL]

https://ulozto.net/tamhle/v6c3lD45byyM/
