SINAMICS DriveSim Basic
https://support.industry.siemens.com/cs/document/109798225/

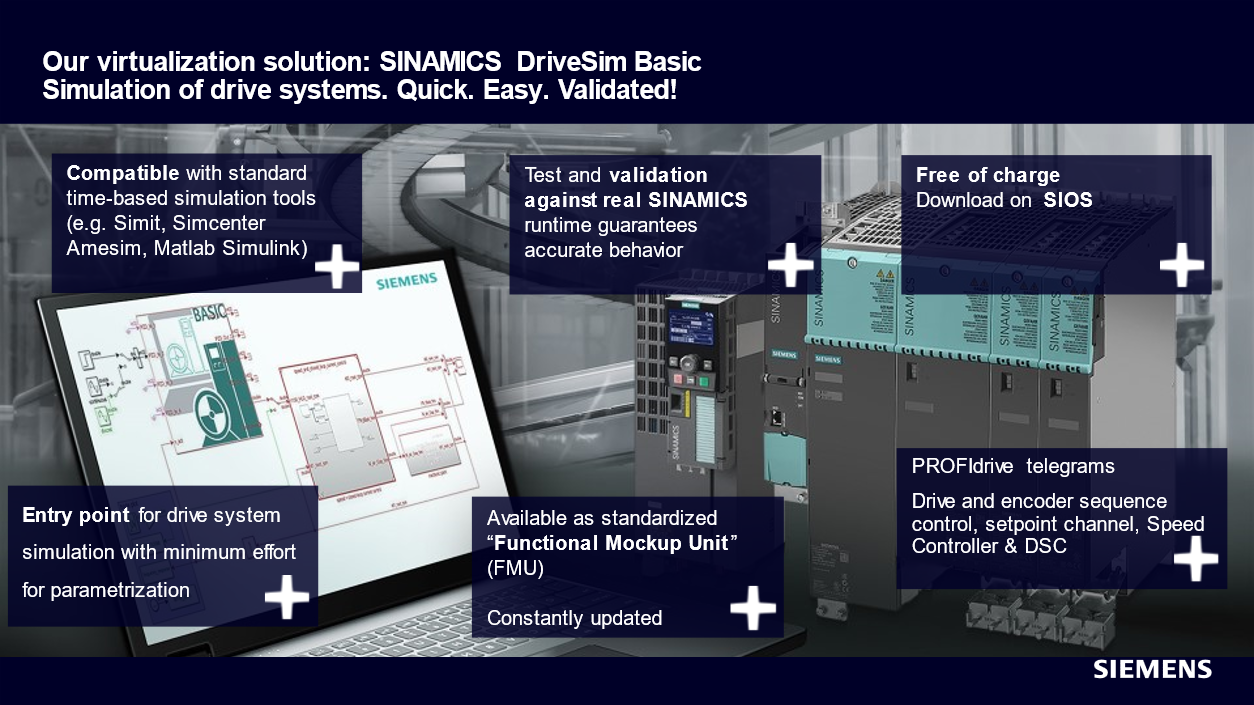

SINAMICS DriveSim Basic provides easy-to-use models for PROFIdrive-enabled SINAMICS drives, so you can fÄƒurite a digital twin of your drive.

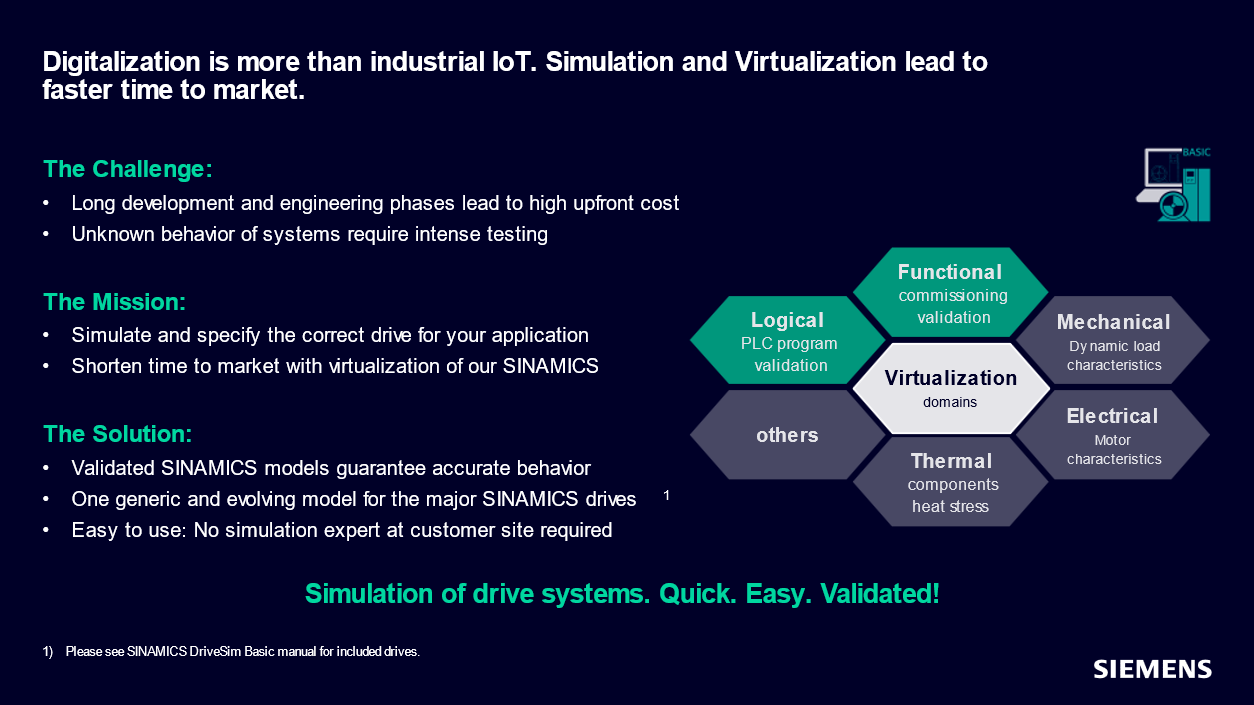

How can you verify and validate the communication between the drive and the PLC?
And how can you verify and validate that the instructions the PLC is giving the drive are correctly interpreted?
With SINAMICS DriveSim Basic, you can answer these questions already at the design and planning stage.

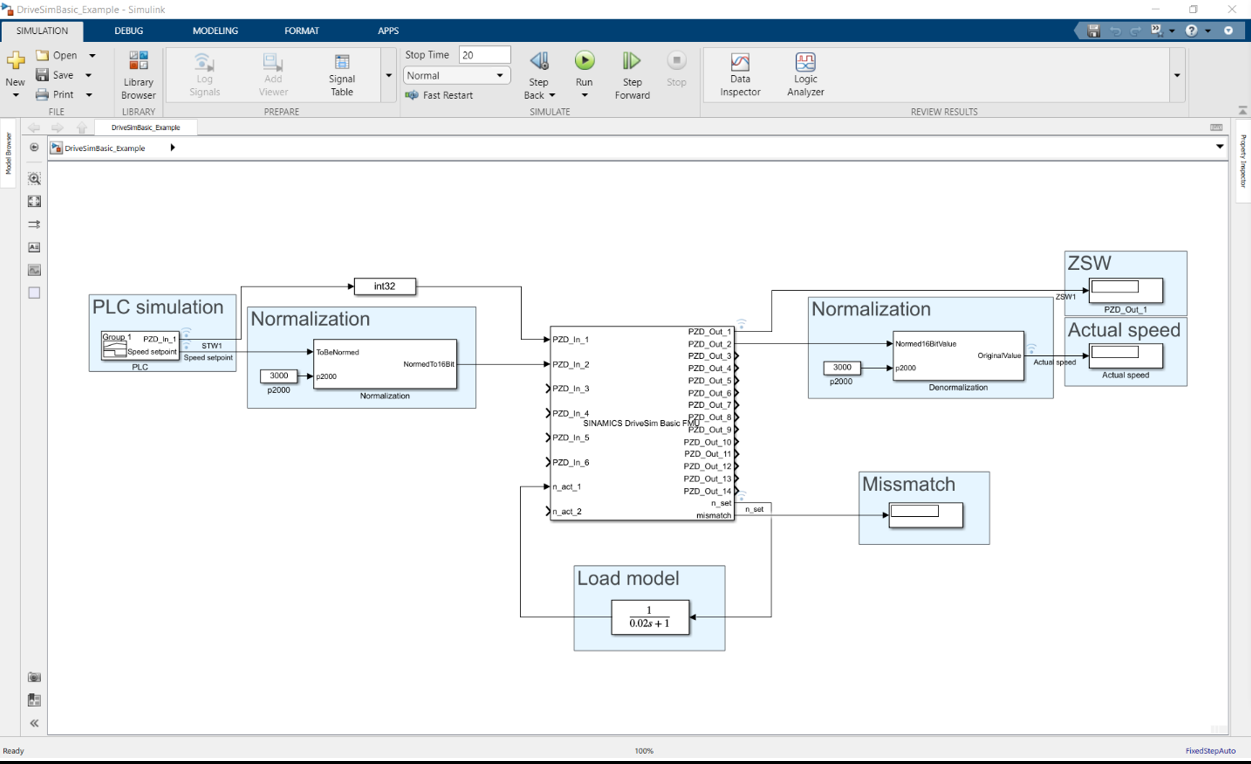

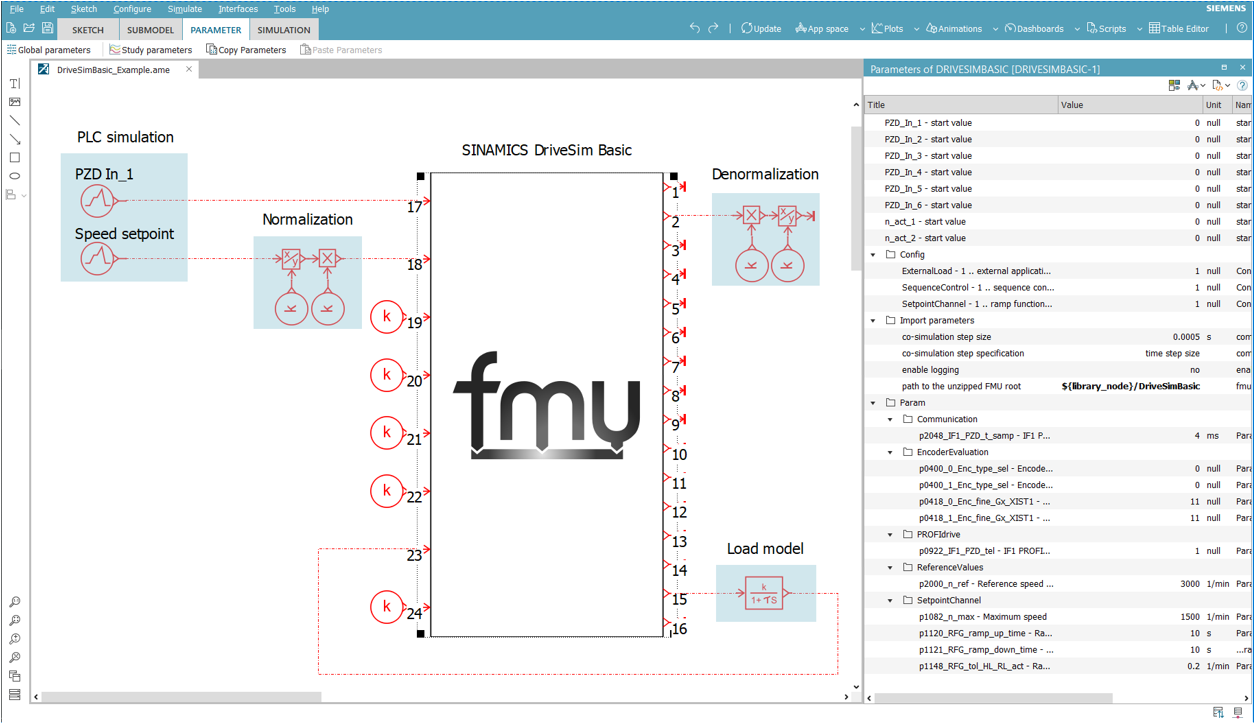

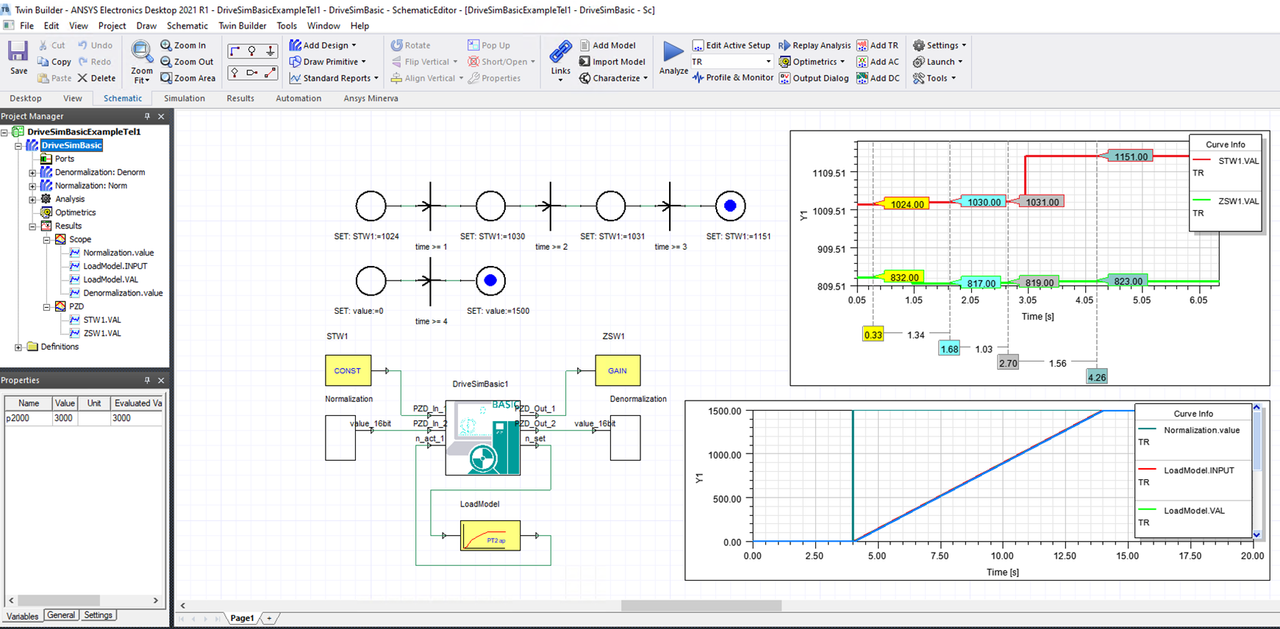

SINAMICS DriveSim Basic provides easy-to-use models for PROFIdrive-enabled SINAMICS drives, so you can create a digital twin of your drive. The models are validated and tested against real SINAMICS drives and are available in the form of a standardized FMU model (Functional Mockup Unit). Therefore, they are compatible with various standard time-based simulation programs such as SIMIT, Simcenter Amesim, NX Motion or Matlab Simulink.

SINAMICS DriveSim Basic SINAMICS DriveSim Basic

SINAMICS DriveSim Basic SINAMICS DriveSim Basic

SINAMICS DriveSim Basic implements a specific feature subset of the drives/firmware and is valid for the following versions:
SINAMICS G110M (CU240M) - V4.7 SP13
SINAMICS G115D - V4.7 SP13
SINAMICS G120 (CU230P-2, CU240B-2, CU240E-2, CU250S-2) - V4.7 SP13
SINAMICS G120C - V4.7 SP13
SINAMICS G120X - V1.03.00
SINAMICS G130/G150 - V5.2 SP3
SINAMICS S110 - V4.4 SP3
SINAMICS S120/S150 - V5.2 SP3
SINAMICS S210 - V5.2 SP3
SINAMICS V90 - V1.04.03
a simplified representation of the motor

SINAMICS DriveSim Basic SINAMICS DriveSim Basic

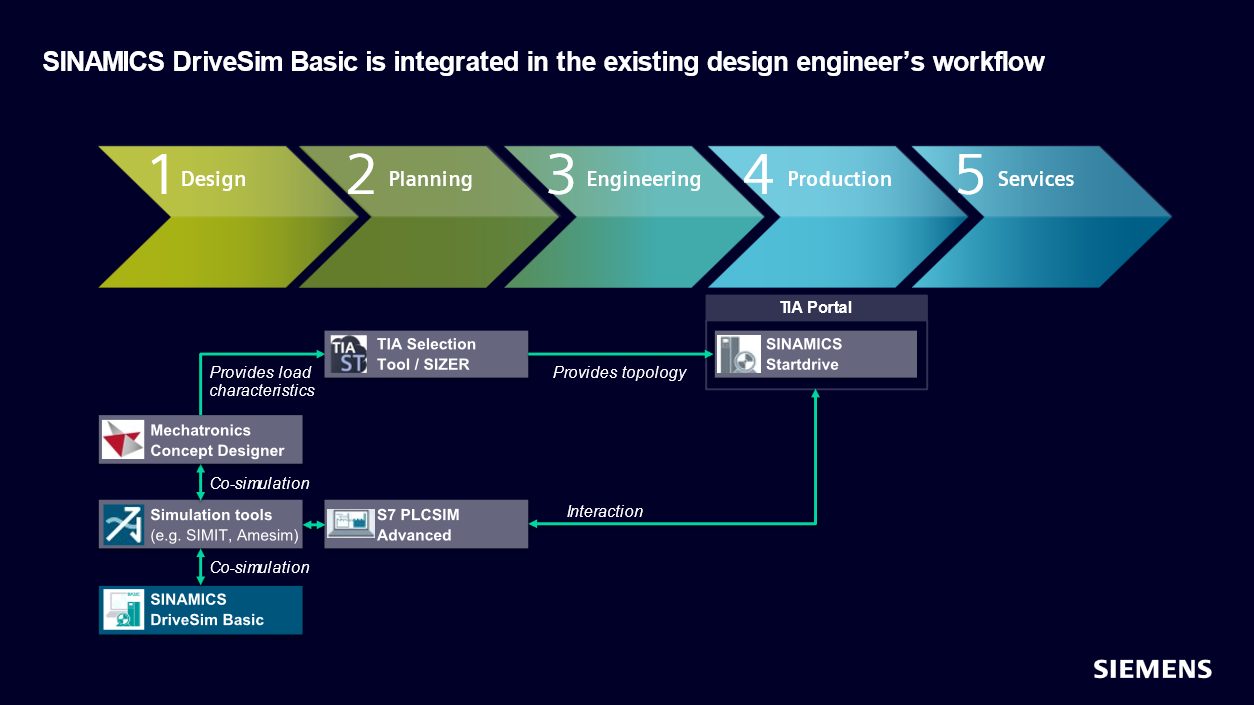

SINAMICS DriveSim Basic is another element in your engineering toolbox. Together with other virtual Siemens solutions, e.g. SIMATIC S7-PLCSIM Advanced or NX Mechatronics Concept Designer, a consistent model-based development process can be implemented.

Here are two use cases as an example:
Virtual commissioning of PLC:

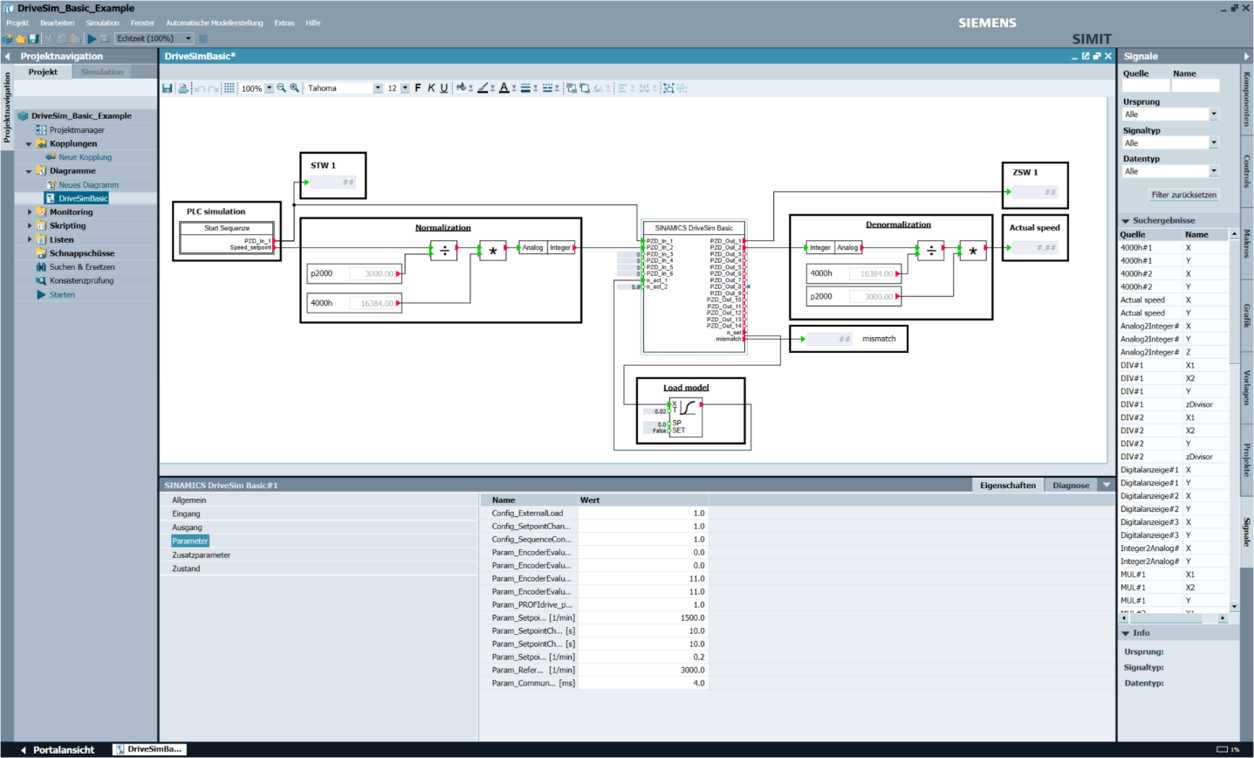

If you are designing a machine, you want to make sure the PLC code works with your SINAMICS drives. After writing the PLC code in TIA Portal, you can connect your program with PLCSim Advance to SIMIT. In SIMIT, the logical domain, which includes DriveSim Basic, is simulated. The SIMIT input and output signals are also integrated into NX Mechatronic Concept Designer to visualize how the mechanical aspects are working together.
Providing load characteristics for drive selection and sizing before defining a specific Control Unit:
The application tip can be driven with just the control part of the drive by the highly configurable SINAMICS DriveSim Basic – this means with or without an interaction of PLCSIM Advanced. As SINAMICS DriveSim Basic is Control Unit-agnostic and does not come with any device data, it produces load profiles according to the constraints of the user and the capability of the application model. These load characteristics, i.e. torque or speed curves, can be imported directly into SIZER for a selection of a proper CU, converter and motor to fit best to the demand.

Benefits of SINAMICS DriveSim Basic
Speed up time-to-market for OEMs
Test validated SINAMICS models under real conditions at the stil or planning stage and make needed adjustments
Identify issues early in the esteticÄƒ stage and restrÃ¢nge testing effort to save time and cost

SINAMICS DriveSim Basic SINAMICS DriveSim Basic

https://support.industry.siemens.com/cs/attachments/109798225/109798225_DriveSim_Basic_CODE.zip
https://support.industry.siemens.com/cs/attachments/109798225/109798225_DriveSim_Basic_Examples.zip

https://www.youtube.com/watch?v=DN4mxCC6Gm4
After completion of the installation you can open the application via the "TIA Administrator" desktop icon and log on with your Windows user data.
https://support.industry.siemens.com/cs/attachments/114358/114358_TIAADMIN_V10_SP2_Upd2.exe
