Control a SINAMICS drive with a Logix PLC and HMI on EtherNet/IP
https://support.industry.siemens.com/cs/document/109824950/
This application example also explains how to integrate a SINAMICS drive with a PanelView Plus HMI using FactoryTalk View Machine Edition.
The resources available for download are valid for SINAMICS G120, G120X, G120XE, G130, G150, G120C, G115D, G120D, S120, S200, S210, DCM. The EDS file can be used with other PLCs that support EtherNet/IP.

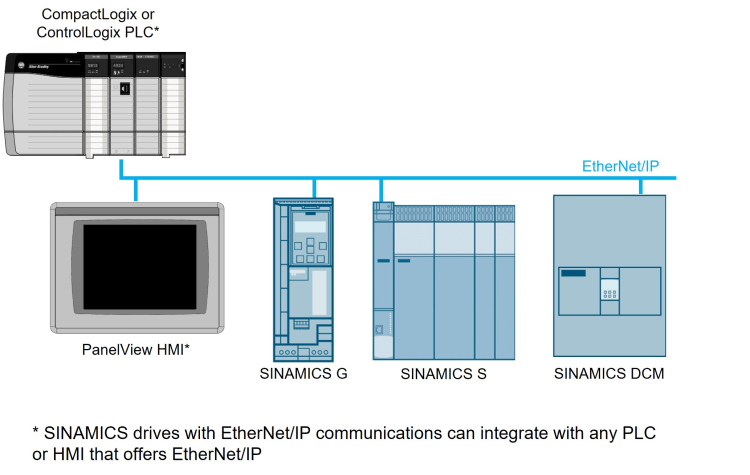

SINAMICS drive with a Logix PLC and HMI on EtherNet/IP SINAMICS drive with a Logix PLC and HMI on EtherNet/IP

The procedure for integrating a SINAMICS drive with a Logix PLC is as follows:
Configure the SINAMICS drive for EtherNet/IP communications and set desired telegram
Create a new Studio 5000 project
Register Electronic Data Sheet (EDS) file for SINAMICS drives
Add a SINAMICS drive to the EtherNet/IP network
Import sample code (Add-on Instruction)

The procedure for integrating a SINAMICS drive with a PanelView HMI is as follows:
Create a new FactoryTalk View Machine Edition project
Import displays and global objects
Import alarms and warnings
