SINAMICS DCM Parameterizing and Commissioning


Post new topic   Reply to topic    plc.myforum.ro Forum Index -> Drives & Inverters
View previous topic :: View next topic
Author Message
werbose1
Junior
Junior


Joined: 28 Mar 2020
Posts: 8
PostPosted: 20/01/2022 20:14    Post subject: SINAMICS DCM Parameterizing and Commissioning Reply with quote

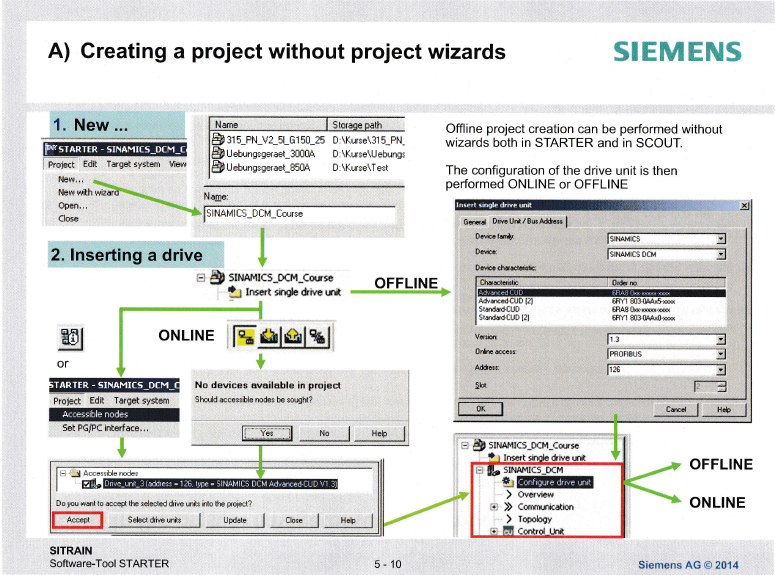

SINAMICS DCM Parameterizing and Commissioning
SINAMICS DCM Parameterizing and Commissioning SINAMICS DCM Parameterizing and Commissioning
https://anonfiles.com/FbB211C6xe/SINAMICS_DCM_Parameterizing_and_Commissioning_rar

[URL=https://www.file-upload.net/download-14825540/SINAMICS_DCM_Parameterizing_and_Commissioning.rar.html]SINAMICS_DCM_Parameterizing_and_Commissioning.rar[/URL]

https://ulozto.net/file/S8cUQS5PTIMg/sinamics-dcm-parameterizing-and-commissioning-rar
Back to top
View user's profile Send private message
werbose1
Junior
Junior


Joined: 28 Mar 2020
Posts: 8
PostPosted: 20/01/2022 21:43    Post subject: Sinamics DCM Reply with quote

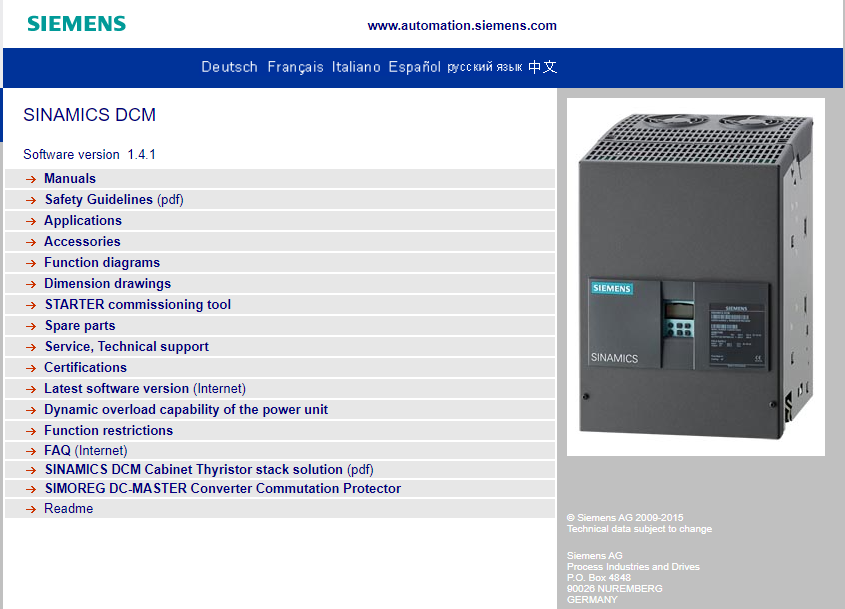

Sinamics DCM
SINAMICS DCM Parameterizing and Commissioning SINAMICS DCM Parameterizing and Commissioning

https://anonfiles.com/h2R510Cax5/DVD_Sinamics_DCM.part02_rar
https://anonfiles.com/9eR813C5x6/DVD_Sinamics_DCM.part03_rar
https://anonfiles.com/faS41bCbx0/DVD_Sinamics_DCM.part01_rar
https://anonfiles.com/j8Sb14C2x5/DVD_Sinamics_DCM.part05_rar
https://anonfiles.com/pdSd10Cfx9/DVD_Sinamics_DCM.part04_rar
https://anonfiles.com/HcY31eCcxc/DVD_Sinamics_DCM.part06_rar
https://anonfiles.com/l0Z71aCbxf/DVD_Sinamics_DCM.part07_rar
https://anonfiles.com/zdaa20C7xc/DVD_Sinamics_DCM.part09_rar
https://anonfiles.com/D3ae2fC8x3/DVD_Sinamics_DCM.part10_rar
https://anonfiles.com/N7a125C5x9/DVD_Sinamics_DCM.part08_rar
https://anonfiles.com/Jdgc29Ccx0/DVD_Sinamics_DCM.part11_rar
https://anonfiles.com/zfh629Cex8/DVD_Sinamics_DCM.part12_rar
https://anonfiles.com/Peh220C0x2/DVD_Sinamics_DCM.part14_rar
https://anonfiles.com/N0i829Cdxf/DVD_Sinamics_DCM.part13_rar
https://anonfiles.com/Tdia28Cfx2/DVD_Sinamics_DCM.part15_rar
https://anonfiles.com/hen12aC3xd/DVD_Sinamics_DCM.part16_rar
https://anonfiles.com/deo325Ccxc/DVD_Sinamics_DCM.part17_rar
https://anonfiles.com/L1p52cC2x3/DVD_Sinamics_DCM.part19_rar
https://anonfiles.com/Tfpf2eCbxf/DVD_Sinamics_DCM.part18_rar
https://anonfiles.com/zdq32aCfxf/DVD_Sinamics_DCM.part20_rar
https://anonfiles.com/Xdr72eC2xf/DVD_Sinamics_DCM.part21_rar

https://ulozto.net/tamhle/4Yz8PJtnxO3W/

[URL=https://www.file-upload.net/download-14825562/DVD_Sinamics_DCM.part01.rar.html]DVD_Sinamics_DCM.part01.rar[/URL]
[URL=https://www.file-upload.net/download-14825560/DVD_Sinamics_DCM.part02.rar.html]DVD_Sinamics_DCM.part02.rar[/URL]
[URL=https://www.file-upload.net/download-14825561/DVD_Sinamics_DCM.part03.rar.html]DVD_Sinamics_DCM.part03.rar[/URL]
[URL=https://www.file-upload.net/download-14825572/DVD_Sinamics_DCM.part04.rar.html]DVD_Sinamics_DCM.part04.rar[/URL]
[URL=https://www.file-upload.net/download-14825576/DVD_Sinamics_DCM.part05.rar.html]DVD_Sinamics_DCM.part05.rar[/URL]
[URL=https://www.file-upload.net/download-14825573/DVD_Sinamics_DCM.part06.rar.html]DVD_Sinamics_DCM.part06.rar[/URL]
[URL=https://www.file-upload.net/download-14825606/DVD_Sinamics_DCM.part07.rar.html]DVD_Sinamics_DCM.part07.rar[/URL]
[URL=https://www.file-upload.net/download-14825604/DVD_Sinamics_DCM.part08.rar.html]DVD_Sinamics_DCM.part08.rar[/URL]
[URL=https://www.file-upload.net/download-14825605/DVD_Sinamics_DCM.part09.rar.html]DVD_Sinamics_DCM.part09.rar[/URL]
[URL=https://www.file-upload.net/download-14825618/DVD_Sinamics_DCM.part10.rar.html]DVD_Sinamics_DCM.part10.rar[/URL]
[URL=https://www.file-upload.net/download-14825643/DVD_Sinamics_DCM.part11.rar.html]DVD_Sinamics_DCM.part11.rar[/URL]
[URL=https://www.file-upload.net/download-14825645/DVD_Sinamics_DCM.part12.rar.html]DVD_Sinamics_DCM.part12.rar[/URL]
[URL=https://www.file-upload.net/download-14825644/DVD_Sinamics_DCM.part13.rar.html]DVD_Sinamics_DCM.part13.rar[/URL]
[URL=https://www.file-upload.net/download-14825663/DVD_Sinamics_DCM.part14.rar.html]DVD_Sinamics_DCM.part14.rar[/URL]
[URL=https://www.file-upload.net/download-14825665/DVD_Sinamics_DCM.part15.rar.html]DVD_Sinamics_DCM.part15.rar[/URL]
[URL=https://www.file-upload.net/download-14825664/DVD_Sinamics_DCM.part16.rar.html]DVD_Sinamics_DCM.part16.rar[/URL]
[URL=https://www.file-upload.net/download-14825681/DVD_Sinamics_DCM.part17.rar.html]DVD_Sinamics_DCM.part17.rar[/URL]
[URL=https://www.file-upload.net/download-14825679/DVD_Sinamics_DCM.part18.rar.html]DVD_Sinamics_DCM.part18.rar[/URL]
[URL=https://www.file-upload.net/download-14825680/DVD_Sinamics_DCM.part19.rar.html]DVD_Sinamics_DCM.part19.rar[/URL]
[URL=https://www.file-upload.net/download-14825746/DVD_Sinamics_DCM.part20.rar.html]DVD_Sinamics_DCM.part20.rar[/URL]
[URL=https://www.file-upload.net/download-14825781/DVD_Sinamics_DCM.part21.rar.html]DVD_Sinamics_DCM.part21.rar[/URL]
Back to top
View user's profile Send private message
parsson
Junior
Junior


Joined: 01 Nov 2022
Posts: 2
PostPosted: 06/11/2022 17:45    Post subject: Reply with quote
:thankyou: :thankyou: :mbounce: :mbounce:
Back to top
View user's profile Send private message
werbose1
Junior
Junior


Joined: 28 Mar 2020
Posts: 8
PostPosted: 05/02/2023 13:10    Post subject: SINAMICS DCM Parameterizing and Commissioning Reply with quote
SINAMICS DCM Parameterizing and Commissioning
new links
https://teraboxapp.com/s/13KJ0mmHMNdxwjM3T628Ncg
Back to top
View user's profile Send private message
labcawazi
Junior
Junior


Joined: 03 Jan 2023
Posts: 1
PostPosted: 12/03/2023 18:25    Post subject: Reply with quote
Thank you :-D :-D
Back to top
View user's profile Send private message
valz
Member 3
Member 3
valz

Joined: 26 Jul 2015
Posts: 771
PostPosted: 07/08/2023 18:34    Post subject: The F60300 error is caused by high dynamic controller settin Reply with quote
The F60300 error is caused by high dynamic controller settings, incorrect parameterization, or particular motors with low armature inductance. The following measures are based on Technical Support experience. They are not recommended measures that have been performed through system testing as part of product testing.
Adjust the feedforward to be slightly smoother (function plan 6845 and 6855):

Adjust the current controller, p50158[0...n] current limit setpoint integrator ramp-up time / adjust the t_r-up from 0.000s to 0.005s.
Adjust the additional current setpoint p50601[5] = 0
Note: The additional current setpoint must be set to 0, otherwise a change in the direction of torque cannot be completed and the drive remains in one direction of torque.

Optional, if step 1 does not provide a workaround
Note: This slightly slows down the the control.
p50157 = 1
p50158 = approx. 0,04 s
P50160 = 0.005
P50161 = 3
P50200 = 10
Back to top
View user's profile Send private message
barro
Junior 2
Junior 2


Joined: 05 Nov 2017
Posts: 24
PostPosted: 25/03/2025 14:17    Post subject: SINAMICS DCM Parameterizing and Commissioning Reply with quote
SINAMICS DCM Parameterizing and Commissioning
https://1024terabox.com/s/15mCxtkz_qz8E3fyKrQaHuw
