SIMOTION - SIMOSIM Advanced
https://support.industry.siemens.com/cs/document/109781536/
With SIMOSIM Advanced one or several SIMOTION D CPUs can be simulated in combination with a behavior model in SIMIT.

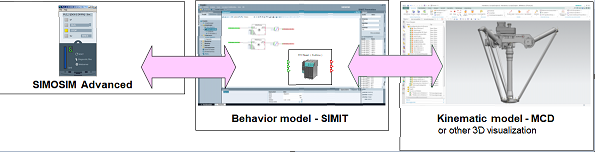

The focus of SIMOSIM, which is already included in SIMOTION SCOUT, is testing the program during the development. The focus of SIMOSIM Advanced is to perform integration and system test scenarios. In combination with SIMIT and NX Mechatronics Concept Designer (NX MCD) you have all necessary components to perform a virtual commissioning of a machine. This includes testing the PLC program, validating the machine behavior and testing failure scenarios. All this can be done before the real machine has been built.

Supported SIMOTION devices
The following SIMOTION devices can be simulated:
CPU D425-2 (DP und DP/PN)
CPU D435-2 (DP und DP/PN)
CPU D445-2 (DP/PN)
CPU D455-2 (DP/PN)

Requirements
The following software must be installed.
TIA Portal V15.1
SCOUT TIA 5.3.1.4
SIMIT V10.2
PLCSIM Advanced V3.0 Update 1
SIMOTION - SIMOSIM Advanced SIMOTION - SIMOSIM Advanced

SIMOTION - SIMOSIM Advanced SIMOTION - SIMOSIM Advanced

Downloads
https://support.industry.siemens.com/cs/attachments/109781536/SIMOSIM_Adv_enUS.pdf
https://support.industry.siemens.com/cs/attachments/109781536/SIMOSIM_Advanced_05.30.33.08.zip

https://ulozto.net/file/YV8Xm1mM6Vdt/simosim-advanced-05-30-33-08-zip

[URL=https://www.file-upload.net/download-14814260/SIMOSIM_Advanced_05.30.33.08.zip.html]SIMOSIM_Advanced_05.30.33.08.zip[/URL]

https://anonfiles.com/b91dc26fxf/SIMOSIM_Advanced_05.30.33.08_zip
