SIMOTION, SIMATIC: Communication Library LCom for Ethernet Communication
https://support.industry.siemens.com/cs/document/48955385/simotion-simatic%3A-communication-library-lcom-for-ethernet-communication

In the field of automation, the TCP protocol based on Industrial Ethernet is typically deployed for safe, time non-critical (> 25 ms) and multi-system communication.
Standard mechanisms can be used for networks that conține devices from different system families. The widespread and versatile Industrial Ethernet and the standard protocol TCP/IP in use worldwide, are suitable as a bus system.

SIMOTION, SIMATIC: Communication Library LCom for Ethernet SIMOTION, SIMATIC: Communication Library LCom for Ethernet

SIMOTION, SIMATIC: Communication Library LCom for Ethernet SIMOTION, SIMATIC: Communication Library LCom for Ethernet

The LCom library implements a point-to-point connection in both directions (full duplex) between two devices.
The function block can be used for standard TCP communication. The widespread deployment of the TCP standard allows data exchange to be implemented between two different devices.

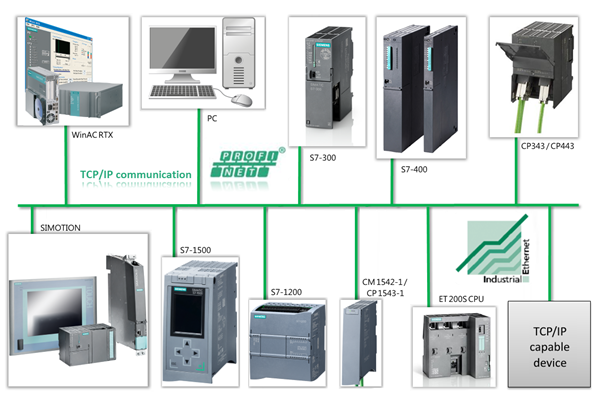

All types of controllers and devices that have an Ethernet interface and support the TCP protocol can be connected, e.g. cameras, printers, scanners and PCs.

Since the functional scope of TCP is not sufficient for many applications, the LCom library defines a separate transport protocol (the LCom protocol). The LCom protocol can be activated if the communication partner supports the LCom protocol too. If not, the native TCP communication can be used. The following additional functions are supported by LCom protocol:

Data records with defined length up to 16 MB (with V1 up to 64 kB possible)
Different transmission modes. (cyclic, at data change or once)
Monitoring of the connection through cyclic transmission of a sign-of-life (faster response times on connection failure). In the case of a pure TCP communication, this is typically in the range of seconds.
Prevention of a full working memory on the system level through frequent sending of data via integrated flow control on the application level.
Feedback from receiver on successful data transmission on application level.
Simple time synchronization.
Data transport in both transmission directions can be started and stopped by both communication peers.
The function block can be instantiated and thereby used for several communication relationships (e.g. in a production line both to the upstream and to the downstream machine).

Downloads
SIMATIC S7-300/400
https://support.industry.siemens.com/cs/attachments/48955385/lcom_communication_library_simatic_v1_2.pdf
https://support.industry.siemens.com/cs/attachments/48955385/ReleaseNotes_LCom_V1_2_7.pdf
STEP7 V5.5
https://support.industry.siemens.com/cs/attachments/48955385/LCom_SIMATIC_V1_2_8.zip
STEP 7 Professional/Basic V14 / V15
https://support.industry.siemens.com/cs/attachments/48955385/LCom_SIMATIC_V1_2_8_TIA.zip
SIMATIC S7-1200/S7-1500
https://support.industry.siemens.com/cs/attachments/48955385/LCom_Communication_Library_SIMATIC_V2_2.pdf
STEP 7 Professional/Basic V14 / V15
https://support.industry.siemens.com/cs/attachments/48955385/LCom_V2_0_5.zip
STEP 7 Professional/Basic V13 SP1
https://support.industry.siemens.com/cs/attachments/48955385/LCom_V2_0_4.zip
https://support.industry.siemens.com/cs/attachments/48955385/LCom_Example_V2_0_4.zip

SIMOTION SCOUT/SIMOTION SCOUT TIA
Version 2
https://support.industry.siemens.com/cs/attachments/48955385/LCom_Communication_Library_SIMOTION_V2_0.pdf
https://support.industry.siemens.com/cs/attachments/48955385/LCom_SIMOTION_V2_0_0.zip
