SIMATIC S7-1500T: How do I use the temperature monitoring of the SIMATIC Drive Controller in the user program?
https://support.industry.siemens.com/cs/document/109782270/
The SIMATIC Drive Controller has integrated temperature monitoring in the hardware. This temperature monitoring has two overtemperature threshold values: Warning and Overtemperature, which sets the Drive Controller to STOP state. This FAQ shows you how you can monitor the temperature monitoring warning threshold in the user program.
This FAQ provides a brief insight into how temperature monitoring of the SIMATIC Drive Controller works. It shows you:
How the SIMATIC Drive Controller signals that the warning threshold has been reached and how you can remove the display again.
How the SIMATIC Drive Controller behaves when the warning threshold has been reached.
How the SIMATIC Drive Controller behaves when the overtemperature has been reached.
In addition, this FAQ contains a library with a function block via which the temperature monitoring of the SIMATIC Drive Controller can be evaluated easily in the user program.

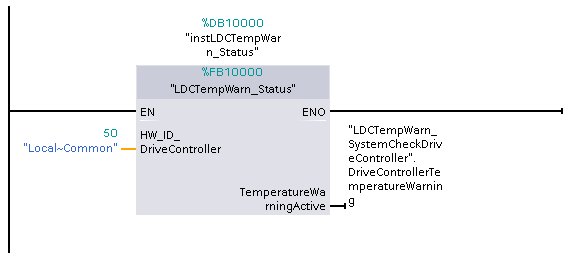

SIMATIC S7-1500T: temperature monitoring SIMATIC S7-1500T: temperature monitoring

SIMATIC S7-1500T: temperature monitoring SIMATIC S7-1500T: temperature monitoring

Downloads
https://support.industry.siemens.com/cs/attachments/109782270/109782270_SIMATIC_DriveController_TempWarning_DOC_v10_en.pdf
https://support.industry.siemens.com/cs/attachments/109782270/109782270_LDCTempWarn.zip

[url=http://www.girlshare.ro/3770026458]109782270_SIMATIC_DriveController_TempWarning_DOC_v10_en.pdf[/url]
[url=http://www.girlshare.ro/3770026459.1]109782270_LDCTempWarn.zip[/url]
