PostPosted: 03/10/2018 17:08    Post subject: SIMATIC S7-1500T RotaryKnife Reply with quote
SIMATIC S7-1500T RotaryKnife
https://support.industry.siemens.com/cs/document/109757260/simatic-s7-1500t-rotaryknife
The standard application SIMATIC RotaryKnife as a part of the Converting Toolbox is based on the SIMATIC control system S7-1500T. It is providing standard applications for rotary knifes, eccentric sheers, e.g. for foil, metal, paper, cardboard, etc. Features: Motion profiles (constant acceleration, jerk limiting, polynomial, sinusoidal or combination), freely definable cutting profiles.
The standard application SIMOTION Rotary Knife was developed with the objective to stil a flexible solution for cutting web material as e.g. paper, film or metal.

The standard application is based on the system platform SIMATIC S7-1500T and provides different Rotary Knife functionalities. The application includes a machine mode manager, the cam calculation, and print mark synchronisation. The application consists of libraries which can be integrated in the user TIA Portal project and also a complete demonstration project.

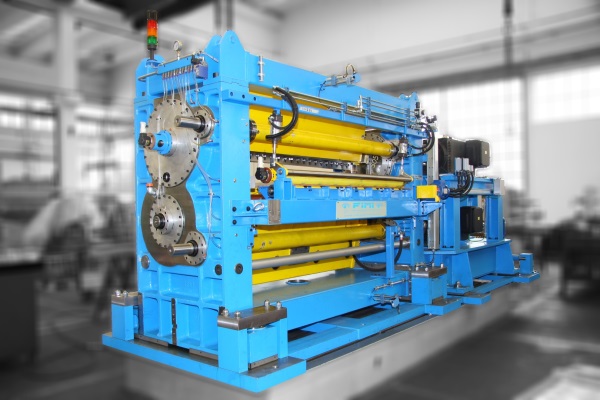

SIMATIC S7-1500T RotaryKnife SIMATIC S7-1500T RotaryKnife

Downloads
https://support.industry.siemens.com/cs/attachments/109757260/20180924_SIMATIC_RotaryKnife_V100_en.pdf
https://support.industry.siemens.com/cs/attachments/109757260/LRotaryKnife_V1.0.0_20180924.zip
https://support.industry.siemens.com/cs/attachments/109757260/TestFB_RotaryKnife_V100_V15_S120V51_1511T_20180924.zip
