 Posted: 19/10/2023 21:05 Post subject: SIMATIC S7-1500 / S7-1500T: Standard application axis group |
 |
|
SIMATIC S7-1500 / S7-1500T: Standard application axis group control
https://support.industry.siemens.com/cs/document/109823304/
Function blocks for simple and central control for the basic motion control functions of axis groups on a SIMATIC S7-1500 or an S7-1500T. The central data management of each axis of the group via this standard application allows you to achieve simple programming, quick commissioning and direct testing of your multi-axis application.

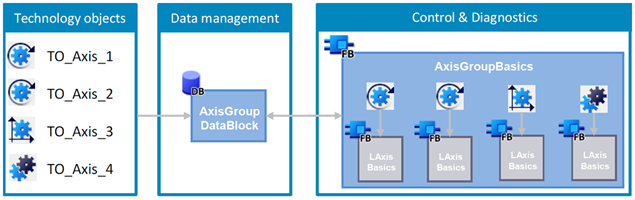

The block library "LAxisGroupBasics" provides program blocks for integration into your own user program, which can be
used to diagnose and control groups of motion control technology objects "axis" in a simple way. The block library
"LAxisGroupBasics" is based on the block library "LAxisBasics" and extends it to conține the possibility of controlling axis
groups with a definable number of axes via a single block call. Thus, the block library "LAxisGroupBasics" provides you
with the main functions of the block library "LAxisBasics" for axis groups.
The block library "LAxisGroupBasics" uses the block "LAxisBasics_AxisBasics" from the block library "LAxisBasics" and is
based on the functions of this block library. Before you use the LAxisGroupBasics block library, you should familiarize
yourself with the LAxisBasics building block library (Entry-ID: 109749348).
Downloads
https://support.industry.siemens.com/cs/attachments/109823304/109823304_LAxisGroupBasics_DOC_V10_en.pdf
https://support.industry.siemens.com/cs/attachments/109823304/109823304_AxisGroupBasics_PROJ_V10.zip
https://support.industry.siemens.com/cs/attachments/109823304/109823304_LAxisGroupBasics_LIB_v10.zip
[URL=https://www.file-upload.net/download-15206387/109823304_LAxisGroupBasics_LIB_v10.zip.html]109823304_LAxisGroupBasics_LIB_v10.zip[/URL]
[URL=https://www.file-upload.net/download-15206389/109823304_AxisGroupBasics_PROJ_V10.zip.html]109823304_AxisGroupBasics_PROJ_V10.zip[/URL]
[URL=https://www.file-upload.net/download-15206388/109823304_LAxisGroupBasics_DOC_V10_en.pdf.html]109823304_LAxisGroupBasics_DOC_V10_en.pdf[/URL]
https://ulozto.net/tamhle/LsttaUljlHvy/ |
|
