 Posted: 24/03/2020 17:42 Post subject: SIMATIC S7-1500 Profiling |
 |
|
SIMATIC S7-1500 Profiling
https://support.industry.siemens.com/cs/document/61199127
The "SIMATIC S7-1500 Profiling" library by Siemens provides a comprehensive analysis tool for your user programs.
The runtime behavior of an application on a SIMATIC

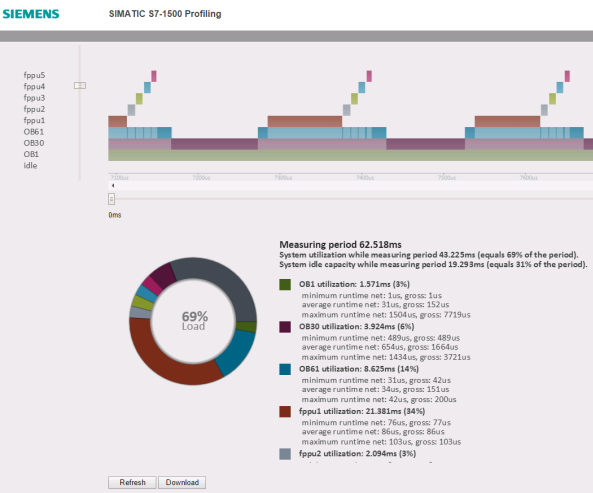

S7-1500 controller can be analyzed and evaluated in-depth using SIMATIC S7-1500 Profiling. All relevant information is displayed graphically via a web-based visualization (see figure). For further analysis purposes, you can output the recorded data as CSV file and evaluate it in a spreadsheet.
SIMATIC S7-1500 Profiling provides answers to the following questions:
To what extend is the PLC used to capacity by the user program?
What blocks (OBs, FBs, FCs) create what share in the runtime?
Is the call structure of the blocks correct?
When are the blocks called?
Documentation and example project tia v14
https://bayfiles.com/p3t0pajao9/109750245_S71500Profiling_LIB_V102_zip
https://bayfiles.com/r4t5pej3o6/109750245_S71500Profiling_DOC_V102_en_pdf |
|
