 Posted: 12/09/2023 18:34 Post subject: SIMATIC S7-1500 Palletize Pattern Generator |
 |
|
SIMATIC S7-1500 Palletize Pattern Generator
https://support.industry.siemens.com/cs/document/109800960/
The library SIMATIC LPallPatt (Palletize Pattern Generator) provides functionalities to create pallet patterns for homogenous cuboid products. Resulting from the pattern generation a point table is provided. It defines the place positions of the products on a pallet, on a slip-sheet or in a container.
The library LPallPatt helps the user to create pallet patterns quickly for different products and pallets. Instead of programming, teaching or defining the palletizing point table manually, the FB “LPallPatt_PatternGenerator” generates the palletizing point table automatically. LPallPatt also contains an HMI, which enables the user to carry out the configuration and to check the generated pallet pattern with the integrated visualization.
The following benefits are provided with this library:
Fast generation of a point table for palletizing processes with freely configurable product and pallet dimensions
HMI configuration, editing, generation and visualization of the pattern result and the palletizing order
Separator layers can be be considered between the product layers
Layer mirroring and cuboid pattern creation for increased stability
Definition of approach and retract routines on the HMI
Safe and load of palletizing data on the HMI and USB drive
Application example project with SIMATIC Kinematics Integrator (SKI) and alternatively with the library LKinCtrl

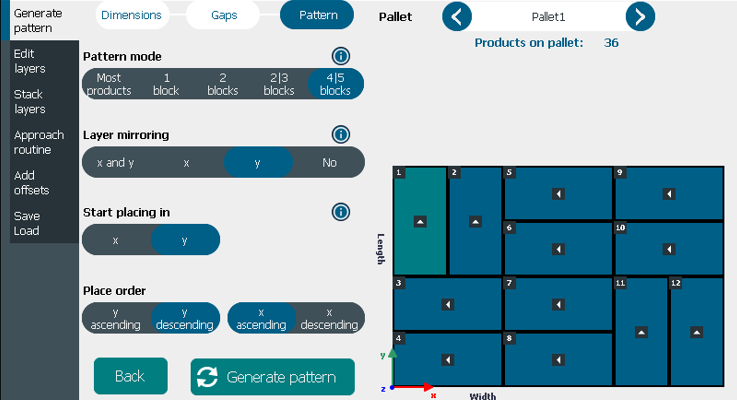

HMI - Parameter Input & Visualization

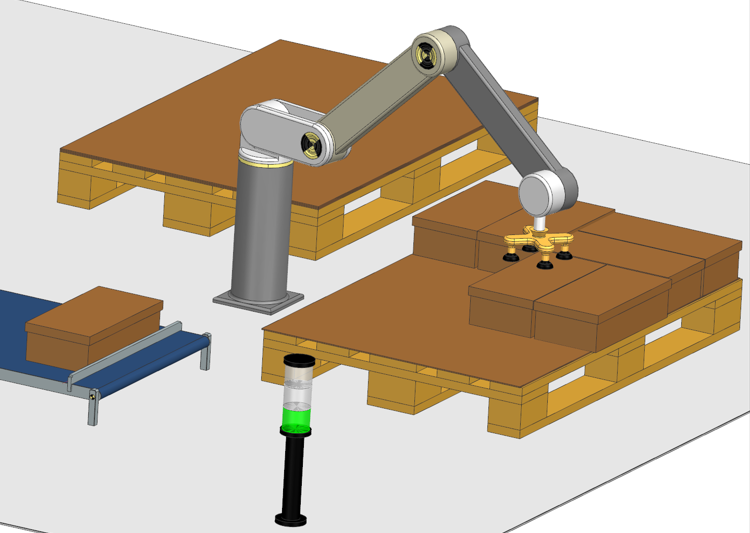

Example Scenario
Detailed functional descriptions can be found in the application manual.
The application can run on any S7-1500 CPU.
Downloads - Documentation
https://support.industry.siemens.com/cs/attachments/109800960/109800960_LPallPatt_Changelog_V3_0_1.pdf
https://support.industry.siemens.com/cs/attachments/109800960/109800960_LPallPatt_doc_en.pdf
Download - V18
https://support.industry.siemens.com/cs/attachments/109800960/109800960_LPallPatt_LIB_V3_0_1_V18.zip
https://support.industry.siemens.com/cs/attachments/109800960/109800960_LPallPatt_PRJ_V3_0_1_V18.zip
Download - V17
https://support.industry.siemens.com/cs/attachments/109800960/109800960_LPallPatt_LIB_V3_0_1_V17.zip
https://support.industry.siemens.com/cs/attachments/109800960/109800960_LPallPatt_PRJ_V3_0_1_V17.zip
Further info
https://support.industry.siemens.com/cs/document/109757198/robot-control-suite-for-simatic-s7-1500t
https://ulozto.net/tamhle/StRkF98zcWaM/
[URL=https://www.file-upload.net/download-15186965/109800960_LPallPatt_doc_en.pdf.html]109800960_LPallPatt_doc_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15186966/109800960_LPallPatt_LIB_V3_0_1_V17.zip.html]109800960_LPallPatt_LIB_V3_0_1_V17.zip[/URL]
[URL=https://www.file-upload.net/download-15186967/109800960_LPallPatt_LIB_V3_0_1_V18.zip.html]109800960_LPallPatt_LIB_V3_0_1_V18.zip[/URL]
[URL=https://www.file-upload.net/download-15186970/109800960_LPallPatt_PRJ_V3_0_1_V17.zip.html]109800960_LPallPatt_PRJ_V3_0_1_V17.zip[/URL]
[URL=https://www.file-upload.net/download-15186969/109800960_LPallPatt_PRJ_V3_0_1_V18.zip.html]109800960_LPallPatt_PRJ_V3_0_1_V18.zip[/URL] |
|
