 Posted: 03/02/2022 15:26 Post subject: SIMATIC S7-1500 Palletize Pattern Generator |
 |
|
SIMATIC S7-1500 Palletize Pattern Generator
https://support.industry.siemens.com/cs/document/109800960/
The library SIMATIC LPallPatt (Palletize Pattern Generator) provides functionalities to create pallet patterns for homogenous cuboid products. Resulting from the pattern generation a point table is provided. It defines the place positions of the products on a pallet, on a slip-sheet or in a container.
The library LPallPatt helps the user to produse pallet patterns quickly for different products and pallets. Instead of programming, teaching or defining the palletizing point table manually, the FB “LPallPatt_PatternGenerator” generates the palletizing point table automatically. LPallPatt also contains an HMI, which enables the user to carry out the configuration and to check the generated pallet pattern with the integrated visualization.
The following benefits are provided with this library:
Fast generation of a point table for palletizing processes for configurable product and pallet dimensions
Calculation of separator layers
Layer mirroring and cuboid pattern creation for increased stability
Different pattern types selectable
HMI configuration, generation and visualization of the pattern result and the palletizing order
Manual post-editing of the generated points on the HMI
Application example project with integration and usage of the standard application LKinCtrl for palletizing with kinematics

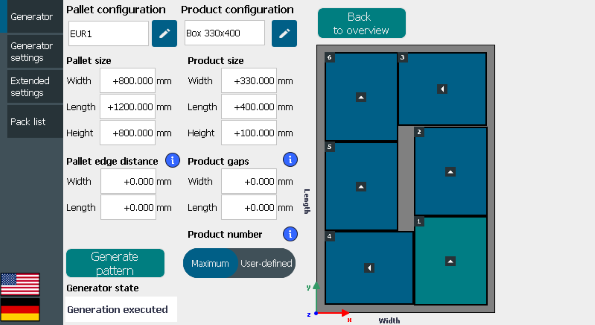

HMI - Parameter Input & Visualization

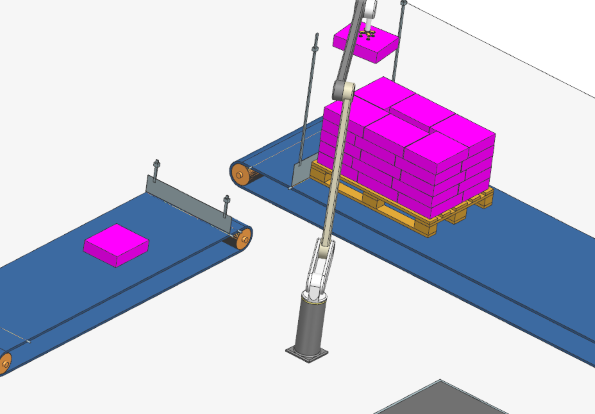

Example Scenario
The application is demonstrated with the scenario shown in the image below.
Detailed functional descriptions can be found in the application manual.
The application can run on any S7-1500 CPU.
Downloads
https://support.industry.siemens.com/cs/attachments/109800960/109800960_LPallPatt_DOC_V1_0_1_en.pdf
https://support.industry.siemens.com/cs/attachments/109800960/109800960_LPallPatt_LIB_V1_0_1_V16.zip
https://support.industry.siemens.com/cs/attachments/109800960/109800960_LPallPatt_PRJ_V1_0_0_V16.zip
https://ulozto.net/tamhle/p4mHKI6iNMh8/
https://anonfiles.com/v07147Fbx3/109800960_LPallPatt_DOC_V1_0_1_en_pdf
https://anonfiles.com/967947Ffxe/109800960_LPallPatt_LIB_V1_0_1_V16_zip
https://anonfiles.com/fa8440F8xa/109800960_LPallPatt_PRJ_V1_0_0_V16_zip |
|
