SIMATIC S7-1500 ↔ SIMOTION Cross-System Synchronization
https://support.industry.siemens.com/cs/document/109800820/
Configuration of cross-system synchronization between SIMATIC S7-1500 and SIMOTION.
The modularity of the machine architecture or very large quantity structures can make it necessary to distribute machine applications to two or more controllers.

With the system function "distributed synchronism" with SIMOTION or the "cross-PLC synchronism" with SIMATIC S7-1500 T-CPUs, you can realize synchronism (gear or cam disc synchronism) between axes that are located on different CPUs of the same automation system.
In some cases, however, there is a requirement to operate both automation systems in parallel in one machine and to implement cross-system synchronization.
This cross-system synchronization between SIMATIC S7-1500 and SIMOTION is described in this application example.

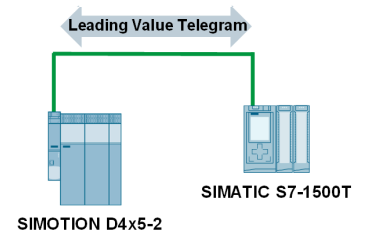

SIMATIC S7-1500 ↔ SIMOTION Cross-System Synchroniz SIMATIC S7-1500 ↔ SIMOTION Cross-System Synchroniz

SIMATIC S7-1500 ↔ SIMOTION Cross-System Synchroniz SIMATIC S7-1500 ↔ SIMOTION Cross-System Synchroniz

Possible use cases:
An existing system with SIMOTION needs to be extended by a module with SIMATIC S7-1500T .
A system with SIMATIC S7-1500 should be supplemented by a module with SIMOTION for technological or functional reasons.
These two use cases require cross-system synchronization: from SIMOTION to SIMATIC or vice versa from SIMATIC to SIMOTION.

Downloads
https://support.industry.siemens.com/cs/attachments/109800820/CrossSystemSynchronousOperation_V1.1_en.pdf
https://support.industry.siemens.com/cs/attachments/109800820/CrossSystemSynchronousOperation_V111.zip

[URL=https://www.file-upload.net/download-15192692/CrossSystemSynchronousOperation_V111.zip.html]CrossSystemSynchronousOperation_V111.zip[/URL]

https://ulozto.net/file/fRoGPbeq6H34/crosssystemsynchronousoperation-v111-zip
