grig100 · Member 3 Joined: 01 Jan 2015 Posts: 752

Process Data Acquisition and Monitoring with the SIMATIC S7-1200 / S7-1500 (Data Logging)
https://support.industry.siemens.com/cs/document/64396156/process-data-acquisition-and-monitoring-with-the-simatic-s7-1200-s7-1500
This entry deals with the "DataLog" process data acquisition and alarm generation/data log sending via email with remote access to the CPU.

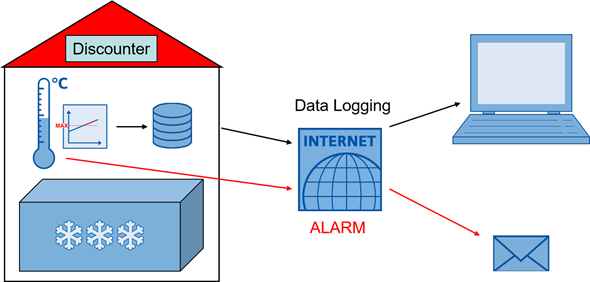

Supermarkets and discounters must ensure the cooling of certain foods. If the cold chain is broken, the foods can no longer be sold and must be disposed of. For this reason, the cooling temperature is to be continuously recorded, archived and monitored (including a signaling function).
SIMATIC S7-1200 / S7-1500 Data Logging SIMATIC S7-1200 / S7-1500 Data Logging

SIMATIC S7-1200 / S7-1500 Data Logging SIMATIC S7-1200 / S7-1500 Data Logging

The automation task is to conține the following requirements:
Remote access to the data log.
Program changes via remote maintenance, if required.
If a maximum temperature is exceeded, a message will be sent to a maintenance technician who will then identify the cause of the problem.
The logged data should be submitted in intervals automatically to a control center and be archived.

The STEP 7 (TIA Portal) development environment provides for the SIMATIC S7-1200 / S7-1500 the "Data log" instructions.
These instructions allow you to store process data in the flash memory (S7-1200 CPU or memory card) in CSV compus (comma-separated values).
This contributes to reducing the CPU's load memory pressure.
The integrated PLC Web server allows you to conveniently access these files and analyze them, for example, in Microsoft Excel.
The SIMATIC S7-1200 / S7-1500 has routing capability, which enables remote access via the Internet.
For secure communication, the connection via a VPN tunnel (VirtualPrivateNetwork) with the appropriate hardware is a suitable solution.
With the "TMAIL_C" instruction, emails can be sent via secure communication using an existing account with an SMTP (SimpleMailTransferProtocol) server email service provider. This function is used to implement the alarm message as well as the sending of the data log as attachment.
The CSV files can also be archived automatically via the API (ApplicationProgrammingInterface) of the SIMATIC Automation Tool V3.
Downloads
Current version 4.0 for STEP 7 V16 (TIA Portal), S7-1200 CPU FW V4.4, S7-1500 CPU FW V2.8 and TMAIL_C V6.0
https://support.industry.siemens.com/cs/attachments/64396156/64396156_S7-1x00_DataLogging_DOC_V4.0_en.pdf
https://support.industry.siemens.com/cs/attachments/64396156/64396156_S7-1x00_DataLogging_TiaV16_CODE_V4.0.zip
https://support.industry.siemens.com/cs/attachments/64396156/64396156_SAT_UploadDataLog_SatV3.1.4_EXE_V1.4.zip

Current version 3.0 for STEP 7 V15.1 (TIA Portal), S7-1200 CPU FW V4.2 and TMAIL_C V4.0
https://support.industry.siemens.com/cs/attachments/64396156/64396156_S7-1200_DataLogging_DOC_v3d0d1_en.pdf
https://support.industry.siemens.com/cs/attachments/64396156/64396156_S7-1200_DataLogging_PROJ_v3d0.zip
https://support.industry.siemens.com/cs/attachments/64396156/64396156_SAT_UploadDataLog_SatV313_EXE_V132.zip

https://ulozto.net/tamhle/Qw6n855if4e5

[URL=https://bayfiles.com/N9vcu4C4o0/64396156_SAT_UploadDataLog_SatV313_EXE_V132_zip]64396156_SAT_UploadDataLog_SatV313_EXE_V132.zip[/URL]
[URL=https://bayfiles.com/Rcv6u2C5o9/64396156_SAT_UploadDataLog_SatV3.1.4_EXE_V1.4_zip]64396156_SAT_UploadDataLog_SatV3.1.4_EXE_V1.4.zip[/URL]
[URL=https://bayfiles.com/b0w6u8Caoc/64396156_S7-1200_DataLogging_PROJ_v3d0_zip]64396156_S7-1200_DataLogging_PROJ_v3d0.zip[/URL]
[URL=https://bayfiles.com/vcwfudCao0/64396156_S7-1x00_DataLogging_DOC_V4.0_en_pdf]64396156_S7-1x00_DataLogging_DOC_V4.0_en.pdf[/URL]
[URL=https://bayfiles.com/xcw6u4C8o2/64396156_S7-1200_DataLogging_DOC_v3d0d1_en_pdf]64396156_S7-1200_DataLogging_DOC_v3d0d1_en.pdf[/URL]
[URL=https://bayfiles.com/zdw6u2C6od/64396156_S7-1x00_DataLogging_TiaV16_CODE_V4.0_zip]64396156_S7-1x00_DataLogging_TiaV16_CODE_V4.0.zip[/URL]

Further Information
https://support.industry.siemens.com/cs/document/109741593/simatic-s7-s7-1200-programmable-controller
https://support.industry.siemens.com/cs/document/109773506/simatic-step-7-basic-professional-v16-and-simatic-wincc-v16
https://support.industry.siemens.com/cs/document/46817803/sending-emails-to-smtp-servers-with-an-s7-cpu
https://support.industry.siemens.com/cs/document/58638283/signaling-and-switching-via-sms-with-s7-1200-and-cp-1242-7-gprs-v2
https://support.industry.siemens.com/cs/document/26662448/overview%3a-secure-remote-access-with-vpn
https://support.industry.siemens.com/cs/document/99681037/vpn-tunnel-between-the-ts-adapter-ie-advanced-and-windows-7
https://support.industry.siemens.com/cs/document/98161300/simatic-automation-tool-the-commissioning-and-service-operation-tool-for-simatic-modules
https://support.industry.siemens.com/cs/document/109760829/automated-loading-and-archiving-of-the-cpu-service-data-by-means-of-the-simatic-automation-tool-via-the-application-programming-interface

longsoul · Junior Joined: 30 Oct 2012 Posts: 2

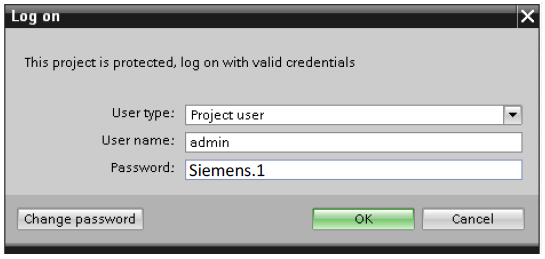

Has anyone managed to open the 4.0 project with tia portal 16? it is protected with username and password and none of the ones I saw in the attached pdf work

tabmod · Junior Joined: 05 Jan 2019 Posts: 2

longsoul · Junior Joined: 30 Oct 2012 Posts: 2
