Sending SIMATIC S7-1200/S7-1500 CPU Security Messages via Syslog to SINEC INS
https://support.industry.siemens.com/cs/document/51929235/
Syslog is a simple binary UDP protocol. It allows applications to send messages, warnings, or error states to a server. In order to be able to use the Syslog protocol in a SIMATIC S7 controller, we offer you an applicative solution with the "LSyslog" library. In addition, a Syslog server is offered with SINEC INS.
Description
Syslog is used typically in computer system management and security monitoring and has now become established as a standard in the field of logging.

Application implementation
This application example uses the library "LSyslog", which is part of the Communication Libraries (see 109780503), and also provides you a function block for the SIMATIC S7-1500 that sends certain safety-relevant messages to the syslog server in order to document and track accesses to the S7 controller and alarms.

With this application example the following messages are sent to the (e.g. SINEC INS) syslog server:
Security messages that occur (e.g. when logging into the controller)
Occuring alarm messages (e.g., in case of failure of a module)
Warning message when a programm or safety programm has been changed and loaded into the controller. The checksums of the old and new programs are integrated into the message

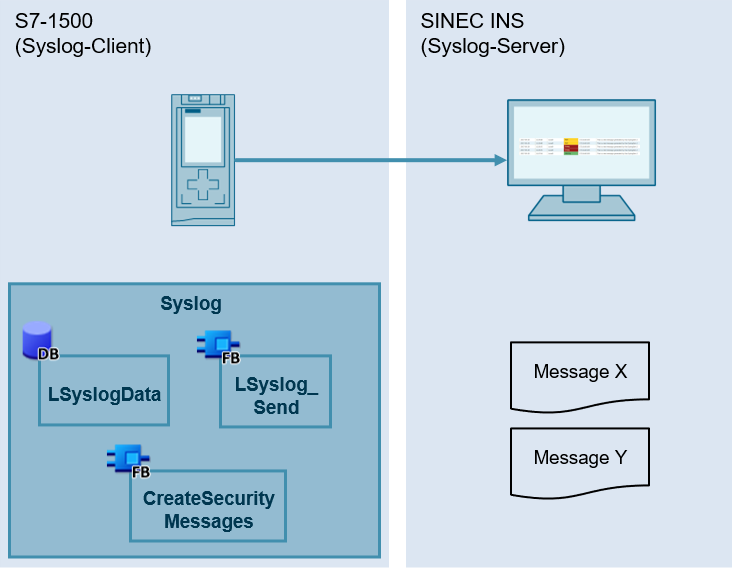

SIMATIC S7-1200/S7-1500 CPU Security Messages via Syslog SIMATIC S7-1200/S7-1500 CPU Security Messages via Syslog

SIMATIC S7-1200/S7-1500 CPU Security Messages via Syslog SIMATIC S7-1200/S7-1500 CPU Security Messages via Syslog

You can use the following components for this example:
S7-1200 PLCs from FW V4.4
S7-1500 PLCs from FW V2.0
ET 200 (ET 200SP, ET 200pro) PLC from FW V2.0
CP 1243-1 from FW V3.2
CP 1243-7 LTE from FW V3.2

Downloads
https://support.industry.siemens.com/cs/attachments/51929235/51929235_Syslog_DOC_en.pdf
https://support.industry.siemens.com/cs/attachments/51929235/51929235_Syslog_Demo_V17.zip

https://anonfiles.com/Df7anaX9u8/51929235_Syslog_DOC_en_pdf
https://anonfiles.com/V773n7Xdub/51929235_Syslog_Demo_V17_zip

https://ulozto.net/tamhle/Ughow9LKwGQD/

[url=http://www.girlshare.ro/3770136000.4]51929235_Syslog_Demo_V17.zip[/url]
[url=http://www.girlshare.ro/3770136001.5]51929235_Syslog_DOC_en.pdf[/url]
