SIMATIC Process Function Library (PFL) V3.0
https://support.industry.siemens.com/cs/document/109823440/
The SIMATIC Process Function Library V3.0 offers function blocks and faceplates for SIMATIC TIA Portal Engineering and WinCC Unified monitoring & control. Furthermore, dedicated functions for the Module Type Package (MTP) engineering based on VDI/VDE/ NAMUR 2658 are an essential part of the library.
1. Use and Area of Application
VDI/VDE/ NAMUR 2658 Module Type Package (MTP) is a standardized non-proprietary description of modules for the Process Automation. This emerging standard aims at shifting centralized large-scale engineering to modularization and decentralized automation.
SIMATIC Process Function Library is derived from field proven SIMATIC PCS 7 Advanced Process Library and are adapted to S7-1500 CPU and SIMATIC WinCC Unified.

SIMATIC Process Function Library enables modularized automation solutions for many different industries, for example:
Chemicals
Pharmaceuticals
Water and wastewater
Glass
Food and beverages

2. Product Information
The SIMATIC Process Function Library V3.0 offers the following functions:
Functions to enable modular automation with TIA Portal and SIMATIC S7-1500 Hardware controller and ET 200SP Open controller
Functions for local operation with SIMATIC WinCC Unified

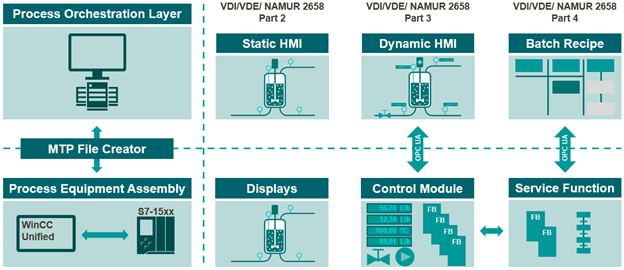

MTP standard complaint communication between Process Equipment Assembly (PEA) and Process Orchestration Layer (POL)
VDI/VDE/NAMUR 2658-1 – Basic Concept
VDI/VDE/NAMUR 2658-2 – Static HMI Elements
VDI/VDE/NAMUR 2658-3 – Data Structures for HMI
VDI/VDE/NAMUR 2658-4 – Modelling of module services

SIMATIC Process Function Library (PFL) V3.0 SIMATIC Process Function Library (PFL) V3.0

SIMATIC Process Function Library (PFL) V3.0 SIMATIC Process Function Library (PFL) V3.0

Channel blocks to enable easy field interface
Enhancements in Service control [New with V3.0]
Required equipment – assign control module to procedure
Requested procedure as output
Automatic transition state creation when procedure is created
Restrict duplicate parameter name
"Complete" enabled only after execution of all steps in state ‘execute’

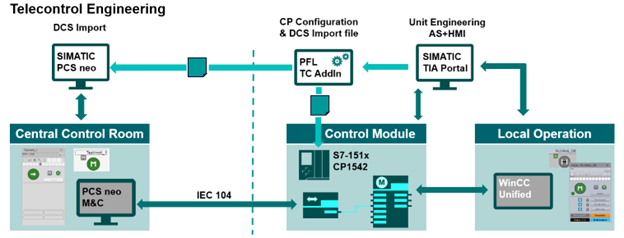

Telecontrol Engineering tool as TIA Portal Addin [New with V3.0]
Read MTP#3 interfaces
Create .csv file to configure CP 1542
Create IEC-104 based MTP file for import in SIMATIC PCS neo
Siemens specific connector blocks for Telecontrol
PosVlv - Interface block for valve positioner
AnaAccu - Interface block for accumulator
AnaMon08 - Interface block for analog monitor with 8 limits
BinMon08 - Interface block for monitor 8 digital process tags
BinAggr16 - Interface block for aggregate 16
SIMATIC Process Function Library (PFL) V3.0 SIMATIC Process Function Library (PFL) V3.0

Note
The Telecontrol feature is released with limited functionality in V3.0. Projects using this feature shall upgrade to V3.0 SP1, scheduled on Dec-2023
New function blocks with block icon & faceplate [New with V3.0]
MonDi08 - Monitoring 8 digital process tags
MonAn08 - Measured value monitoring with 8 limits
Block icon and faceplate added for existing function blocks [New with V3.0]
MotSpdL - Two-speed motor
VlvPosL - Valve positioner
OpDi03 - Manipulating a digital value (3 pushbuttons)
Aggr16 - Unit switchover of 16 units
Additional views in faceplate [New with V3.0]
Parameter view and limit view
PIDConL - Continuous PID controller
MonAnL - Monitoring of an analog process tag
Parameter view
MonDiL - Monitoring of a digital process tag
Interlock blocks - input text increased to 24 characters [New with V3.0]
Multi-language support for name and description [New with V3.0]
Integration of enhanced TCPCon blocks [New with V3.0]
Aligned with SIMATIC PCS neo V4.1
New TCPCon blocks
TCPConRL - TCP connection via Open TCP/IP communication (Large)
TRcv_StrVal - Receive string values including the quality code
TSnd_StrVal - Send string values including the quality code
TRcvH_StrVal - Receive string values including the quality code
TSndH_StrVal - Send string values including the quality code

3. Structure
The SIMATIC Process Function Library V3.0 contains the following add-on libraries that can be installed on TIA Portal:
SIMATIC_Process_Function_Library_HW_PLC_V3.0.0.0
SIMATIC_Process_Function_Library_SW_PLC_V3.0.0.0
SIMATIC_Process_Function_Library_Unified_V3.0.0.0

The PFL Engineering Tool and PFL Telecontrol Add-In are installed along with the libraries.

Note
Both HW and SW Library can be installed together in an engineering station, but cannot be used in the same project.

4. Software and Hardware prerequisite
Following are the prerequisite for SIMATIC Process Function Library V3.0
Engineering software
Totally Integrated Automation (TIA) Portal V18 Update 2 and TIA Openness
STEP 7 Professional V18 Update 2
WinCC Advanced / Unified PC V18 Update 2
Runtime software
WinCC Unified PC V18 Update 2 SR1
Hardware
For MTP with OPC UA:
SIMATIC S7-1500 HW controller FW V2.9.4 and above
SIMATIC ET 200SP Open controller FW V20.8.1 and above
SIMATIC HMI Unified Comfort Panel
For MTP with IEC-104:
SIMATIC ET 200SP CPU FW V2.9.2 and above
SIMATIC ET 200SP CP 1542SP-1 IRC FW V2.1 and above
SIMATIC HMI Unified Comfort Panel
Note
SIMATIC S7-1500 R/H-Controllers are not supported due to missing OPC UA support.
