SIMATIC Process Function Library (PFL) V2.0
https://support.industry.siemens.com/cs/document/109805499/
The SIMATIC Process Function Library V2.0 offers function blocks and faceplates for SIMATIC TIA Portal Engineering and WinCC Unified monitoring & control. Furthermore, dedicated functions for the modular type package (MTP) engineering based on VDI/VDE/ NAMUR 2658 are an essential part of the library.
The SIMATIC Process Function Library V2.0 is the successor version of the SIMATIC MTP Library V1.0. An upgrade package is available and projects using the SIMATIC MTP Library V1.0 w/wo SP1 can upgrade the project engineering to SIMATIC Process Function Library V2.0.

1. Use and Area of Application
VDI/VDE/ NAMUR 2658 Module Type Package (MTP) is a standardized non-proprietary description of modules for the Process Automation. This emerging standard aims at shifting centralized large-scale engineering to modularization and decentralized automation.
SIMATIC Process Function Library is derived from field proven SIMATIC PCS 7 Advanced Process Library and are adapted to S7-1500 CPU and SIMATIC WinCC Unified.
SIMATIC Process Function Library enables modularized automation solutions for many different industries, for example:
Chemicals
Pharmaceuticals
Water and wastewater
Glass
Food and beverages

2. Product Information
The SIMATIC Process Function Library V2.0 offers the following functions:
Functions to enable modular automation with TIA Portal and SIMATIC S7-151x controller
Functions for local operation with SIMATIC WinCC Unified
MTP standard complaint communication between Process Equipment Assembly (PEA) and Process Orchestration Layer (POL)
VDI/VDE/NAMUR 2658-1 – Basic Concept
VDI/VDE/NAMUR 2658-2 – Static HMI Elements
VDI/VDE/NAMUR 2658-3 – Data Structures for HMI
VDI/VDE/NAMUR 2658-4 – Modelling of module services
Channel blocks to enable easy field interface

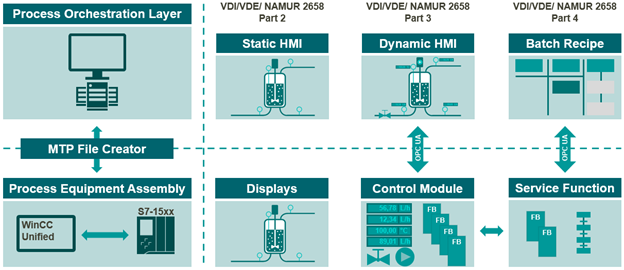

SIMATIC Process Function Library (PFL) V2.0 SIMATIC Process Function Library (PFL) V2.0

3. Structure

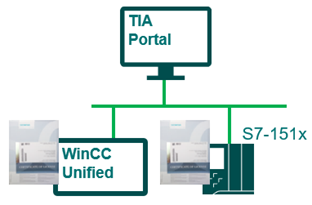

The SIMATIC Process Function Library V2.0 contains the following add-on library that can be installed on TIA Portal
SIMATIC Process Function Library V2.0 (Including MTP Service Configuration Tool)
4. Software and Hardware prerequisite
Following are the prerequisite to install SIMATIC Process Function Library V2.0
Software
TIA Portal V17
SIMATIC STEP 7 Professional V17
SIMATIC WinCC Unified SCADA Engineering System V17
Hardware
SIMATIC S7-151x controller
SIMATIC HMI Unified Comfort Panel or Desktop
Simulation
PLCSimAdvanced
SIMIT V10

6. Download
https://support.industry.siemens.com/cs/attachments/109805499/SIMATIC_Process_Function_Library_V2_0.zip
https://support.industry.siemens.com/cs/attachments/109805499/SIMATIC_Process_Function_Library_Readme.pdf

[URL=https://www.file-upload.net/download-14788556/SIMATIC_Process_Function_Library_V2_0.zip.html]SIMATIC_Process_Function_Library_V2_0.zip[/URL]
[URL=https://www.file-upload.net/download-14788554/SIMATIC_Process_Function_Library_Readme.pdf.html]SIMATIC_Process_Function_Library_Readme.pdf[/URL]

https://ulozto.net/file/dZJ0oEKh76UT/simatic-process-function-library-v2-0-zip
