SIMATIC Process Function Library (PFL) V2.0 SP2
https://support.industry.siemens.com/cs/document/109814188/
The SIMATIC Process Function Library V2.0 SP2 offers function blocks and faceplates for SIMATIC TIA Portal Engineering and WinCC Unified monitoring & control. Furthermore, dedicated functions for the Module Type Package (MTP) engineering based on VDI/VDE/ NAMUR 2658 are an essential part of the library.

The SIMATIC Process Function Library V2.0 SP2 is the successor version of the SIMATIC Process Function Library V2.0 SP1 & SIMATIC MTP Library V1.0. An upgrade package is available and projects using the SIMATIC MTP Library V1.0 w/wo SP1 can upgrade the project engineering to SIMATIC Process Function Library V2.0 SP2.

1. Use and Area of Application
VDI/VDE/ NAMUR 2658 Module Type Package (MTP) is a standardized non-proprietary description of modules for the Process Automation. This emerging standard aims at shifting centralized large-scale engineering to modularization and decentralized automation.

SIMATIC Process Function Library is derived from field proven SIMATIC PCS 7 Advanced Process Library and are adapted to S7-1500 CPU and SIMATIC WinCC Unified.
SIMATIC Process Function Library enables modularized automation solutions for many different industries, for example:
Chemicals
Pharmaceuticals
Water and wastewater
Glass
Food and beverages

2. Product Information
The SIMATIC Process Function Library V2.0 SP2 offers the following functions:
Functions to enable modular automation with TIA Portal and SIMATIC S7-1500 hardware and open controller
Functions for local operation with SIMATIC WinCC Unified
MTP standard complaint communication between Process Equipment Assembly (PEA) and Process Orchestration Layer (POL)
VDI/VDE/NAMUR 2658-1 – Basic Concept
VDI/VDE/NAMUR 2658-2 – Static HMI Elements
VDI/VDE/NAMUR 2658-3 – Data Structures for HMI
VDI/VDE/NAMUR 2658-4 – Modelling of module services
Channel blocks to enable easy field interface
TCON based communication with S7-1500 hardware controller [New with V2.0 SP2]

Enhancements in Service control [New with V2.0 SP2]
Service Interaction: Question-Answer tip based interaction when service requires operator decision
Position text configuration in PFL Engineering tool
Export functionality for service interaction and position text configuration in PFL Engineering tool
eClass property in block icon for representation in POL
Procedure assignment for Process and Report values in PFL Engineering tool

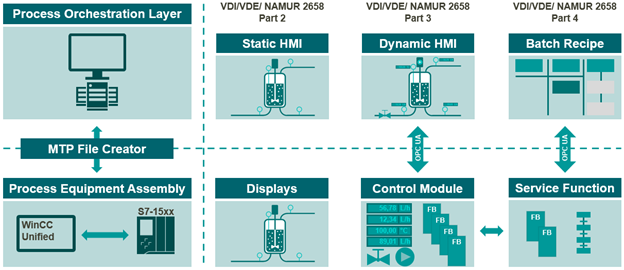

SIMATIC Process Function Library (PFL) V2.0 SP2 SIMATIC Process Function Library (PFL) V2.0 SP2

3. Structure
The SIMATIC Process Function Library V2.0 SP2 contains the following add-on libraries that can be installed on TIA Portal:
SIMATIC_Process_Function_Library_HW_PLC_V2.0.2.0
SIMATIC_Process_Function_Library_SW_PLC_V2.0.2.0
SIMATIC_Process_Function_Library_Unified_V2.0.2.0
The PFL Engineering Tool is installed along with the libraries.
Note
Both HW and SW Library can be installed together in an engineering station, but cannot be used in the same project.

4. Software and Hardware prerequisite
Following are the prerequisite to install SIMATIC Process Function Library V2.0 SP2
Software
Totally Integrated Automation (TIA) Portal V17 Upd 4 and TIA Openness.
STEP 7 Professional V17 Upd 4
WinCC Advanced / Unified PC V17 Upd 4
Hardware
SIMATIC S7-1500 Hardware controller with firmware version V2.8 and above
SIMATIC S7 Open controller / ET 200SP Open controller with firmware version V2.0 and above
SIMATIC HMI Unified Comfort Panel or WinCC Unified PC Runtime
Note
SIMATIC S7-1500 R/H controllers are not supported due to missing OPC UA support.

Download
https://support.industry.siemens.com/cs/attachments/109814188/SIMATIC_PFL_V20_SP2.zip

https://ulozto.net/file/lJ3k9F2Qmkeg/simatic-pfl-v20-sp2-zip
[URL=https://www.file-upload.net/download-15025538/SIMATIC_PFL_V20_SP2.zip.html]SIMATIC_PFL_V20_SP2.zip[/URL]
