SIMATIC Process Function Library (PFL) V2.0 SP1
https://support.industry.siemens.com/cs/document/109811611/

SIMATIC Process Function Library (PFL) V2.0 SP1 SIMATIC Process Function Library (PFL) V2.0 SP1

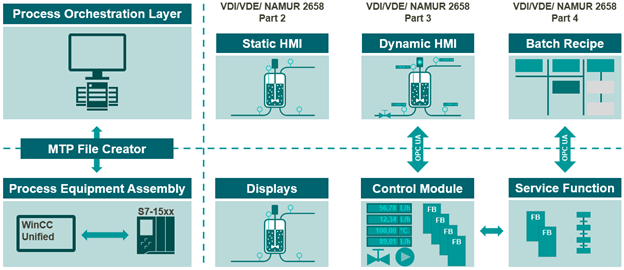

The SIMATIC Process Function Library V2.0 SP1 offers the following functions:
Functions to enable modular automation with TIA Portal and SIMATIC S7-1500 hardware and open controller
Functions for local operation with SIMATIC WinCC Unified
MTP standard complaint communication between Process Equipment Assembly (PEA) and Process Orchestration Layer (POL)
VDI/VDE/NAMUR 2658-1 – Basic Concept
VDI/VDE/NAMUR 2658-2 – Static HMI Elements
VDI/VDE/NAMUR 2658-3 – Data Structures for HMI
VDI/VDE/NAMUR 2658-4 – Modelling of module services
Channel blocks to enable easy field interface
Enhancements in Service control [New with V2.0 SP1]
Control module lock: A Step is not executed when the concerned control modules are not ready to start
Force Command: The block can be forced to an acceptable state through force command inputs
Support existing brown field sequence in the project
Selection of only one default procedure
New display icons for block icon / faceplate

Software and Hardware prerequisite
Following are the prerequisite to install SIMATIC Process Function Library V2.0 SP1

Software
Totally Integrated Automation (TIA) Portal V17 Upd 2 and TIA Openness.
STEP 7 Professional V17 Upd 2
WinCC Unified PC Engineering System V17 Upd 2

Hardware
SIMATIC S7-1500 Hardware controller with firmware version V2.8 and above
SIMATIC S7 Open controller / ET 200SP Open controller with firmware version V2.0 and above [New with V2.0 SP1]
SIMATIC HMI Unified Comfort Panel or WinCC Unified PC Runtime

Note
SIMATIC S7-1500 R/H-Controllers are not supported due to missing OPC UA support.

Download
https://support.industry.siemens.com/cs/attachments/109811611/SIMATIC_Process_Function_Library_V2_0_SP1.zip

https://ulozto.net/file/ofYS8CFK8J0t/simatic-process-function-library-v2-0-sp1-zip

[URL=https://www.file-upload.net/download-14958193/SIMATIC_Process_Function_Library_V2_0_SP1.zip.html]SIMATIC_Process_Function_Library_V2_0_SP1.zip[/URL]
