 Posted: 19/11/2018 18:26 Post subject: SIMATIC PN/CAN LINK Configuring "CAN transparent" |
 |
|
SIMATIC PN/CAN LINK – Configuring "CAN transparent" operating mode
https://support.industry.siemens.com/cs/document/109760971/

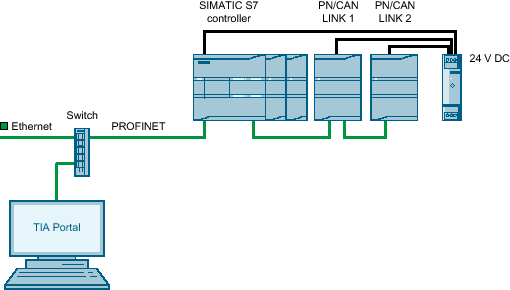

This application example shows the operation of an S7-1200 controller and two PN/CAN LINK network transitions, which are connected to each other via PROFINET. The following is explained:
• How to configure messages and to assign parameters to tags
• How to insert blocks and go online
The PN/CAN LINKs are connected to a SIMATIC S7 controller via PROFINET. The configuration takes place on a PC with TIA Portal installed.
Send and receive messages with a data record length ≤ 8 bytes can be configured for sending and receiving in the "CAN transparent" operating mode.
The "CAN_transparent_TIAproj_V15.zip" file contains the application example for TIA Portal V15.
https://support.industry.siemens.com/cs/attachments/109760971/109760971_network_transitions_pncan_transparent_en.pdf
https://support.industry.siemens.com/cs/attachments/109760971/CAN_transparent_TIAproj_V15.zip |
|
