mamiko · Member 2 Joined: 25 Dec 2017 Posts: 420

SIMATIC OMAC PackML V2022 Mode&State Management and Machine Data Interface
https://support.industry.siemens.com/cs/document/109821198/
This software library provides a user-friendly basis for the implementation of an OMAC PackML compliant mode and state manager incl. PackTags for the machine data interface for SIMATIC.
State-of-the-art packaging machines and lines are extremely versatile, and must provide high throughput rates with the highest possible degree of flexibility. Reducing the total cost of ownership and investment security are also crucial issues. The key in achieving these objectives is the usage of standards for mode and state management and data interface in the machine.

SIMATIC OMAC PackML V2022 Mode&State SIMATIC OMAC PackML V2022 Mode&State

SIMATIC OMAC PackML V2022 Mode&State SIMATIC OMAC PackML V2022 Mode&State

End customers expect this uniform operation for their machine operators in the line with the goal that machines from different vendors can be operated and diagnosed in the same way. In addition a standardized access to the machine data from upper level systems has to be guaranteed to be able to e.g. analyze product flow, acquire machine operating hours or calculate performance data.

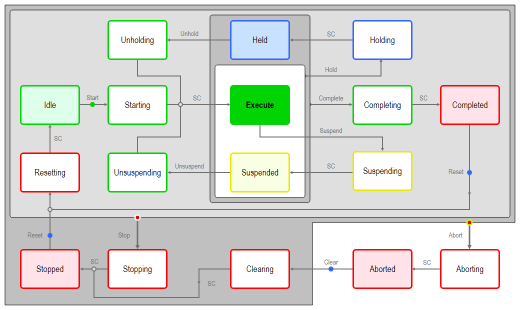

OMAC base state model (see LPMLV2022 Example project):
SIMATIC OMAC PackML V2022 Mode&State SIMATIC OMAC PackML V2022 Mode&State

Downloads
STEP 7 Professional V17 Update 4 (TIA Portal)
For the usage in newer STEP 7 versions see corresponding system manuals (Compatibility of projects/PLC programs)

SIMATIC S7-1200/S7-1500
https://support.industry.siemens.com/cs/attachments/109821198/LPMLV2022_Example_V1_0_0.zip

STEP 7 Professional / Basic V15.1 (TIA Portal)
For the usage in newer STEP 7 versions see corresponding system manuals (Compatibility of projects/PLC programs)
SIMATIC S7-1200/S7-1500
https://support.industry.siemens.com/cs/attachments/109821198/LPMLV2022_SIMATIC_V1_0_en.pdf
https://support.industry.siemens.com/cs/attachments/109821198/LPMLV2022_V1_0_0.zip

https://ulozto.net/tamhle/RJXTE3hK3iEc/

[URL=https://www.file-upload.net/download-15154702/LPMLV2022_Example_V1_0_0.zip.html]LPMLV2022_Example_V1_0_0.zip[/URL]
[URL=https://www.file-upload.net/download-15154701/LPMLV2022_SIMATIC_V1_0_en.pdf.html]LPMLV2022_SIMATIC_V1_0_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15154700/LPMLV2022_V1_0_0.zip.html]LPMLV2022_V1_0_0.zip[/URL]

Limatic · Junior Joined: 20 Aug 2016 Posts: 11

Hi!

PackML is realy usefull, I'm using with Rockwell PLCs since 2015.
Do you have any Idea where can I find/download the 2022 PackML model example for Rockwell PLCs? I have only the 2015, and to be able to download directly from OMAC, I must to become a OMAC member, or in other words, I have to pay.

Thanks in advance

Thiago.
