SIMATIC MTP Creator V3.1.0.1
https://support.industry.siemens.com/cs/document/109826989/

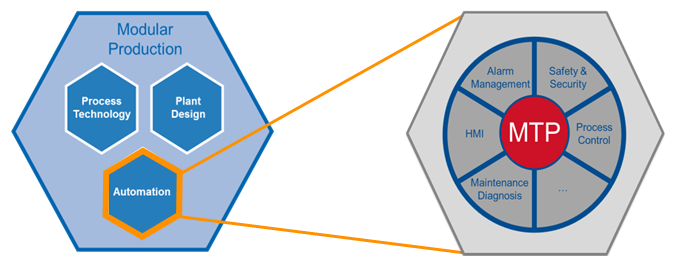

When operating a modularly structured plant, the integration of process units from different manufacturers often involves a great deal of effort and problems, especially due to different communication protocols and interfaces.

Standardization is the key to open and flexible automation and plant concepts. This is where MTP comes into play. Module Type Package (MTP) is a formal description of the interfaces and functions of the automation technology of a modular process unit. MTP is standardized in the VDI/VDE/NAMUR 2658 directive and enables manufacturer-independent integration of process units into a higher process control level. In the standard, a process unit is referred to as a PEA (Process Equipment Assembly) and the process control layer is referred to as the POL (Process Orchestration Layer).

SIMATIC MTP Creator V3.1.0.1 SIMATIC MTP Creator V3.1.0.1

SIMATIC MTP Creator V3.1.0.1 SIMATIC MTP Creator V3.1.0.1

The functional description is generated from the module automation data. This allows any higher-level automation system that "understands" MTP to precisely control a specific module, regardless of whether what is involved is, for example, a tank or a mixer.

This solution approach makes it possible to modularize today's automation systems and thus increase the flexibility of production plants.

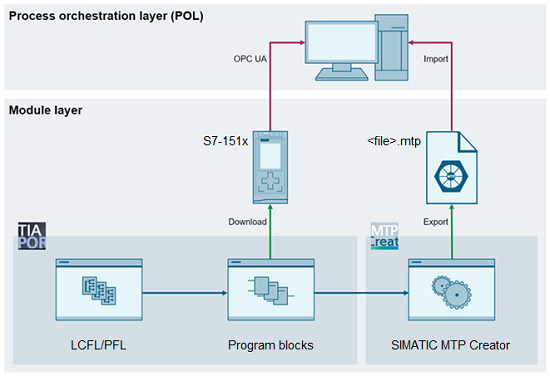

OEM / Module layer
The module or plant constructor supplies the plant operator with a pre-automated, independently executable, and tested module, which ensures faster commissioning and error-free production at the customer site.

System integrator / Process orchestration layer
MTP files with integrated process pictures are imported into the higher process control level, where the content of the machine/plant is created.

This facilitates uniform operation of the standard and modular automated process unit .
SIMATIC MTP Creator is a TIA Portal add-in which you can use to generate MTP files based on your TIA Portal engineering environment. MTP files can also be generated via a PowerShell script. This facilitates a time-controlled generation of the MTP file.

SIMATIC MTP Creator V3.1.0.1 SIMATIC MTP Creator V3.1.0.1

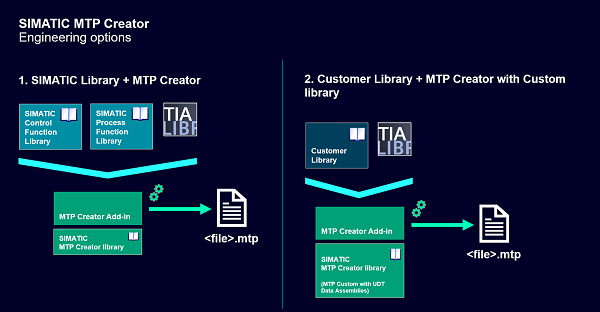

With this new version of the MTP Creator, you have two options for creating an MTP file:

Using the function blocks and HMI faceplates from the Siemens libraries SIMATIC Control Function Library (LCFL) and SIMATIC Process Function Library (PFL). The objects contained in the library are completely suitable for the MTP export, which means that no further configuration is necessary when they are used. Thanks to the use of these libraries, PEA conformity with the MTP standard is ensured. Use SIMATIC MTP Creator V3.1.0.1 for this (see Licensing and ordering data below)
Using your own dynamic visual objects and function blocks, which are not a part of the LCFL and PFL libraries. By means of the "MTP Creator Custom", which is a part of the product, you can export these elements of your own library to MTP Standard conformant elements. For this, use SIMATIC MTP Creator Customizing V3.1.0.1, which currently only supports VDI / VDE / NAMUR 2658 Part 2 and 3. If you wish to use your own library but need the support of VDI / VDE / NAMUR 2658 Part 4 (Services), then in addition to your own library, you can also use the SIMATIC Process Function Library (See below under Licensing and ordering data).

SIMATIC MTP Creator V3.1.0.1 SIMATIC MTP Creator V3.1.0.1

The MTP files created can later be imported by Siemens or other providers in different POL systems. This saves time in your POL system engineering and reduces potential sources of error.

SIMATIC MTP Creator V3.1.0.1 and SIMATIC MTP Creator Customizing V3.1.0.1 implement the following parts of the VDI/VDE/NAMUR 2658 directive1):
Part 1: General concept and interfaces (V1.1.0 and V2.0.0)
Part 2: Modeling of operating screens (V1.0.0)
Part 3: Library for data objects (V1.0.0)
Part 4: Modeling of module services (V1.0.0)
1) You can find more details of supported objects in the manual
The MTP Creator is supplied along with the MTP Creator Library. The MTP Creator Library comprises the following main parts:

Data block "PeaInformationLabel" and relevant type "typeMTPPeaInformationLabel"
Data block "ModuleTypePackageRevision" and relevant type "ModuleTypePackageRevision"
eClass-defined SVG graphics
MTP Creator - Custom: The "MTP Creator - Custom" contains user data types for interfaces and DataAssemblies, which are linked with the customer-specific visual objects or the function blocks so that the contents can be correctly exported. The interfaces define the scope of the data that are exchanged between POL and PEA automation system (you can find more details in the manual).

In addition, the add-in enables you to make configuration settings of the MTP export by means of the "ProjectConfig.yaml" file. This file contains the following areas:

The "ExportMode" area enables you to specify which contents are to be exported, with the help of the parts of the VDI/VDE/NAMUR 2658 directive.
The "HMIDevices" area enables you to specify which WinCC Unified devices and their pictures are to be exported in MTP compus (VDI/VDE/NAMUR 2658 Part 2).

Download
https://support.industry.siemens.com/cs/attachments/109826989/SIMATIC_MTP_Creator_V3_1_0_1.zip
