SIMATIC Modular Application Creator
https://support.industry.siemens.com/cs/document/109762852/

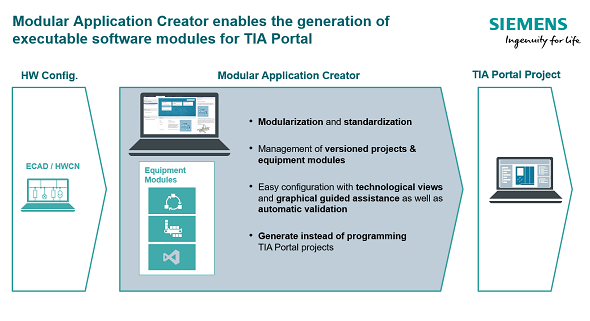

With the Modular Application Creator, you can create high-quality machine projects automatically based on predefined and tested equipment modules. With this procedure you avoid sources of error and save time during engineering and commissioning.
The Modular Application Creator enables the automatic generation of TIA Portal projects. Especially with complex machine configurations, such as multi-belt control or other multi-axis applications, this is very efficient compared to manually creating and assigning software blocks and parameters to the automation project directly in the TIA Portal.
The starting point is a TIA Portal project, with the hardware needed prepared. The software, which is then generated in the automation project, is defined in so called equipment modules (the corresponding download can be found under the entry ID 109762849 ). The modules offer a technological view of the application and can be used without any knowledge of TIA Portal programming. The modules are stored in a separate repository that is independent of the tool itself and has to be connected via the settings.
SIMATIC Modular Application Creator SIMATIC Modular Application Creator

SIMATIC Modular Application Creator SIMATIC Modular Application Creator

After starting the tool, the user can select a prepared TIA Portal project and confecÈ›ionate a project with it. In this process, the TIA Portal project is read out and the equipment modules available for the machine project are displayed. Then required equipment modules must then be assigned to a PLC in the project.

The parameterization of an equipment module itself is performed in a technological view that maps this application in its specific input options. Examples are axes names, setting parameters from mechanical design, etc. The user is supported by a validation of the inputs, which not only takes incorrect inputs into account but also cross-dependencies, in order to exclude sources of error here.
When the parameterization is completed, all required components including the parameter values and the interconnection to the drives are generated into the TIA Portal project at the push of a button. Then these parts of the TIA Portal project can be downloaded and the functionality can be tested.
To generate a TIA Portal project that runs in a machine, a corresponding license is required in each PLC into which a module is generated:
for standard modules like OMAC or Weihenstephan the order number is 6ES78230MA001BA0
for modules with extended functionality such as Intelligent Belt, order number is 6ES78230MA001DA0
In the background, the information of all used components and modules including their parameterization as well as the generated TIA Portal project is saved in a project directory, which can be read out again at any time using various filter mechanisms.

Installation instructions
Please download the Modular Application creator.zip and save it in a directory of your choice. After unzipping, start the ModularApplicationCreator.exe. A disclaimer will then appear when you start it for the first time. Please read this disclaimer carefully. If you have accepted the conditions, you are asked to connect the directory that was created previously, which contains the equipment modules and and already the needed system components. If this is successful, you can just start working with the Modular Application Creator. Details can also be found in the Getting Started document below on this page.
If you want to generate the resulting TIA Portal project, you need a TIA Portal version V16 and a StartDrive V16, installed on the same computer with activated Openness interfaces each . The tool automatically connects to the TIA Portal at the start of generation.
https://support.industry.siemens.com/cs/document/109773802/
https://support.industry.siemens.com/cs/attachments/109773802/TIAPortalOpenness_en-US.pdf

Downloads:
The Modular Application Creator Start Application:
https://support.industry.siemens.com/cs/attachments/109762852/109762852_Modular_Application_Creator_02.00.110.00_12.16.2019.zip
The Modular Application System components:
https://support.industry.siemens.com/cs/attachments/109762852/109762852_Modular_application_Creator_System_Components_02.00.110.00_12.16.2019.zip
mirror
https://ulozto.net/tamhle/UgptCCO2PB6i/
mirror
https://anonfiles.com/31a2q1z7p9/Release-Notes_Modular_Application_Creator_V2.0_EN-DE_pdf
https://anonfiles.com/59a3q4z3pc/Getting_Started_Modular_Application_Creator_EN_pdf
https://anonfiles.com/75acq1zfp4/109762852_Modular_application_Creator_System_Components_02.00.110.00_12.16.2019_zip
https://anonfiles.com/9ca2q4z7p1/109762852_Modular_application_Creator_System_Components_02.00.110.00_12.16.2019_1_zip
https://anonfiles.com/B9a7qcz5p5/109762852_Modular_Application_Creator_02.00.110.00_12.16.2019_zip
https://anonfiles.com/F8abq9zcpb/TIAPortalOpenness_en-US_pdf
https://anonfiles.com/d4b1q0z2p6/109762849_Modular_Application_Creator_Equipment_Modules_02.00.110.01_14.12.2020_zip

AnteSavilt · Member 2 Joined: 13 Feb 2018 Posts: 264 Location: Croatia

SIMATIC Modular Application Creator Equipment Modules
https://support.industry.siemens.com/cs/document/109762849/
With equipment modules, a TIA Portal machine project can be generated using the Modular Application Creator. The parameterization of an equipment module is made in a technological view. The user is supported by a validation of the entries, which not only considers incorrect entries but also cross-dependencies. This procedure reduces the sources of errors and the time required for engineering.

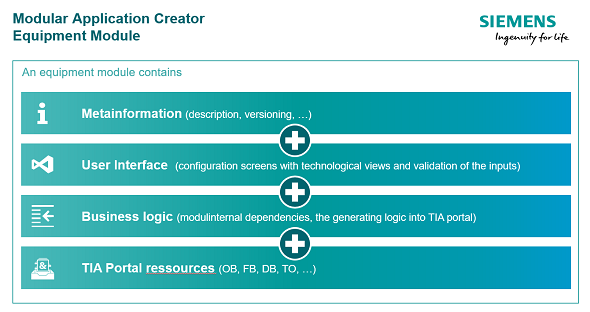

An equipment module is packaged in a Microsoft standard format which has been optimized for handling in the Modular Application Creator

It always contains the same coherent structure:

SIMATIC Modular Application Creator SIMATIC Modular Application Creator

Besides the required TIA Portal resources, all the commands for generating them into a TIA Portal project are included. Appropriately technologically oriented operating screens for configuration support the parameterizing of the module in relationship to the details of the machinery. And a sophisticated versioning allows managing the modules in the project (e.g. updating to newer versions) or support to find out which module was used with which version in specific projects.

Five equipment modules are available for the version V2.0 of the SIMATIC Modular Application Creator:

OMAC PackML Mode and State Manager:
Configurable software libraries for OMAC-compliant operating mode management in SIMATIC S7-1500.

Weihenstephan Standards:
Configurable software libraries defines tags for data evaluation and operating modes in SIMATIC S7-1500 representing the Weihenstephan Standards.

Intelligent Belt:
Configurable software blocks for the "Multi-belt control" application. This enables products arriving one after another to be received and made available together at an unloading position. The most important feature is that loading and unloading can be performed independently.

Print Standard:
The Print Standard software package comprises motion control functions and concepts for printing and post press machines. The standard is controlled via a standardized interface as well as an uniform operating mode management.

Project Template with Tech Demo module:
A preconfigured TIA Portal project template which contains a configurable equipment module for a "Flying saw/shears" application example that can be applied to the hardware of the S7-1500T demo case with SINAMICS S210.

Multi-Carrier-System
The Multi-Carrier-System LRailCtrl application for SIMATIC S7-1500T controllers can be configured quickly and user-friendly as an equipment module of the SIMATIC Modular Application Creator. The technology objects, program and library sources and all configuration settings required for commissioning the rail are generated. Project templates and further information about the Multi-Carrier-System are available at

https://anonfiles.com/Xecdqaz6p7/Release-Notes_Modular_Application_Creator_V2.0_EN-DE_pdf
https://anonfiles.com/Zcc5q7zepa/Getting_Started_Modular_Application_Creator_EN_pdf
mirror
https://ulozto.net/tamhle/UgptCCO2PB6i/
mirror
https://anonfiles.com/31a2q1z7p9/Release-Notes_Modular_Application_Creator_V2.0_EN-DE_pdf
https://anonfiles.com/59a3q4z3pc/Getting_Started_Modular_Application_Creator_EN_pdf
https://anonfiles.com/75acq1zfp4/109762852_Modular_application_Creator_System_Components_02.00.110.00_12.16.2019_zip
https://anonfiles.com/9ca2q4z7p1/109762852_Modular_application_Creator_System_Components_02.00.110.00_12.16.2019_1_zip
https://anonfiles.com/B9a7qcz5p5/109762852_Modular_Application_Creator_02.00.110.00_12.16.2019_zip
https://anonfiles.com/F8abq9zcpb/TIAPortalOpenness_en-US_pdf
https://anonfiles.com/d4b1q0z2p6/109762849_Modular_Application_Creator_Equipment_Modules_02.00.110.01_14.12.2020_zip

AnteSavilt · Member 2 Joined: 13 Feb 2018 Posts: 264 Location: Croatia

Modular production with "Module Type Package (MTP)" - Module design with TIA Portal
https://support.industry.siemens.com/cs/document/109783062/

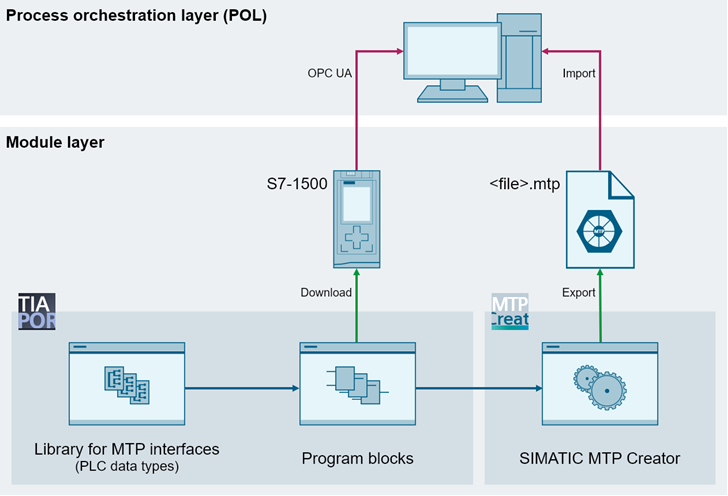

This functional description based on automation markup language (AML) is generated from the module automation engineering data.
It makes it possible for any higher-level automation system that “speaks” MTP to accurately control a specific module, whether it’s a tank or mixer.
OEM / Module layer
The module/plant builder supplies a pre-tested, automated and executable module to the plant operator which ensures a faster commissioning and error free start-up at customer site.
System integrator / Process orchestration layer
MTP packages with the integrated process pictures are imported and orchestrated into the overarching process control system.
Uniform operation of standard and modular automated process unit are possible.

SIMATIC Modular Application Creator SIMATIC Modular Application Creator

SIMATIC MTP Creator
The SIMATIC MTP Creator is a tool used to fÄƒcute MTP package files from an existing TIA Portal project.
The MTP package contains MTP relevant OPC UA tags from the TIA Portal project as well as HMI screen objects that are generated by this tool based on the MTP content of the project. These generated MTP packages can later be imported into different POL Systems from Siemens or other vendors.

Downloads:
https://anonfiles.com/n9n38b12p5/LibraryForMTP_V15.1_zip
https://anonfiles.com/p0n48d14p8/LibraryForMTP_V16_zip
https://anonfiles.com/53ne8a16p6/109783062_SIMATIC_MTP_Creator_V1.0_en_pdf
https://anonfiles.com/78n1891dp9/109783062_LibraryForMTP_V1.0_en_pdf
https://anonfiles.com/9cnd8913p2/109783062_SIMATIC_MTP_Creator_V1.0.0_zip
