 Posted: 02/11/2018 11:00 Post subject: Simatic Microbox PC 427B Recovery DVD |
 |
|
Hi Colleagues.
Can You anyone share a Restore/Recovery DVD for Simatic Microbox 427B (It contains Windows XP Embedded, drivers and etc.)
I have one dead w/o operating system after crash ad I need to restore it.
Thanks in advance.
Regards Martin |
|
| Back to top |
|
 |
A111
Junior
Joined: 18 Oct 2018
Posts: 6
|
| Posted: 02/11/2018 16:56 Post subject: |
|
|
This has winxp sp2 you can find downoad.
Download and boot up...
https://support.industry.siemens.com/cs/document/108608500/simatic-ipc427d- (microbox-pc)-ipc-477d-aktuelle-bios-version
update bios
SIMATIC IPC427D (MICROBOX PC) / IPC 477D - current BIOS version
https://support.industry.siemens.com/cs/document/108608500/simatic-ipc427d- (microbox-pc)-ipc-477d-aktuelle-bios-version?dti=0&pnid=16756&lc=de-WW
You find drivers on Siemens
or order on
http://www.automation-berlin.com/en/siemens-6ES7675-1CB20-0AA0.html |
|
| Back to top |
|
|
mseaukro
Junior
Joined: 01 Nov 2018
Posts: 6
Location: Rychnov nad Kneznou
|
| Posted: 02/11/2018 17:24 Post subject: |
|
|
Thanks a lot my Friend.
This is not my device, It is newer generation. I have a generation 427B, that is older - Celeron CPU atc. and have different BIOS SW.
For my Microbox PC 427B is existing recovery medium fitted to this device includes all necessary files, drivers and prebuilded Windows XP Embedded. This CD/DVD is delivered together wit a new 427B. I buyed it on ebay with corrupted compact flash medium and w/o recovery CD/DVD which I looking for. Siemens not supported, because it is old device. |
|
| Back to top |
|
|
Marshall34
Junior
Joined: 02 Nov 2018
Posts: 1
|
| Posted: 02/11/2018 20:23 Post subject: |
|
|
| what's the code of your pc box? |
|
| Back to top |
|
|
mseaukro
Junior
Joined: 01 Nov 2018
Posts: 6
Location: Rychnov nad Kneznou
|
| Posted: 03/11/2018 19:48 Post subject: |
|
|
Hello.
Code number is 6ES7 647--7AA20-0AA0 and name of CD is about "Siemens Restore-CD 1-1 07/2008 Microbox PC 427B"
Thank a lot for help. |
|
| Back to top |
|
|
GSutton
Junior
Joined: 30 Oct 2018
Posts: 4
|
| Posted: 03/11/2018 23:12 Post subject: |
|
|

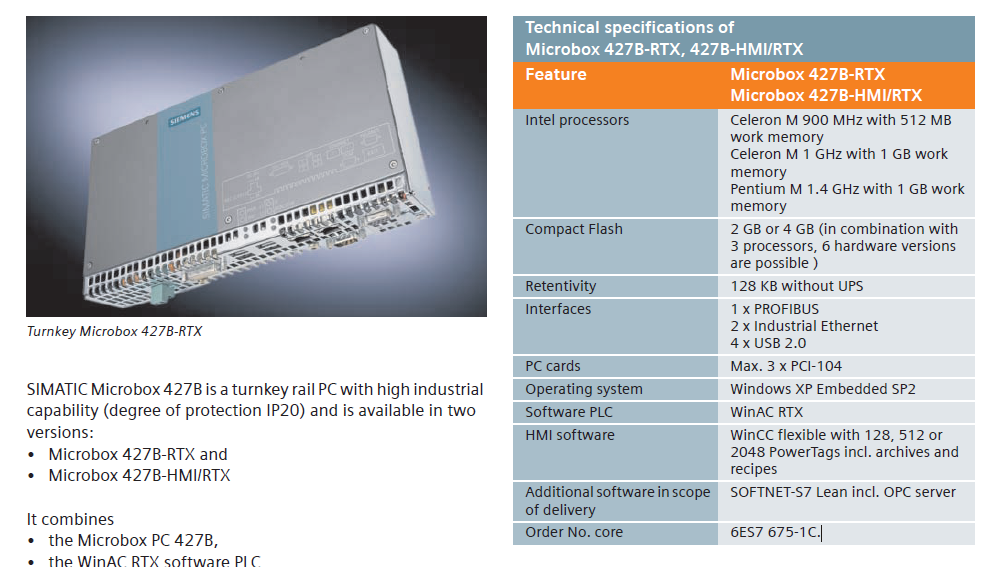

Your system is
Celeron M 900 MHz, without fieldbus
512 MB DDR2 SDRAM SODIMM
80 GB EIDE hard disk
Windows XP Embedded preinstalled 1
Together with ≥ 2 GB CompactFlash card or EIDE hard disk
Windows XP Embedded: Observe EWF Information
Under Windows XP Embedded a configurable write filter Enhanced Write Filter) is available. The Enhanced Write filter is disabled by default. Please observe the EWF rules during activation and use, since a data loss may otherwise occur.
https://support.industry.siemens.com/dl/files/677/50867677/att_893612/v1/EWFManager_V02000001_01060001.zip
Try to use this CD which is bootable and has WinPE included
Simatic_FIELD_PG_2005_P4_Recovery_CD_1_2_WXPPROISP2_ENG.iso 642.4 MB
| Quote: | | https://mega.nz/#!DmIznIJY!hIrUW2xNC3OpFHcC8NWuHkgQWzPIz48Lo4NyA-dlX6o |
How do you perform a Restore on a SIMATIC IPC using a USB stick or SIMATIC USB flash drive?
https://support.industry.siemens.com/cs/document/49651547/how-do-you-perform-a-restore-on-a-simatic-ipc-using-a-usb-stick-or-simatic-usb-flash-drive BIOS download for SIMATIC Microbox 427B but probably not need BIOS update otherwise need to ask from Siemens
https://support.industry.siemens.com/cs/document/25468664/bios-download-for-simatic-microbox-427b |
|
| Back to top |
|
|
mseaukro
Junior
Joined: 01 Nov 2018
Posts: 6
Location: Rychnov nad Kneznou
|
| Posted: 07/11/2018 02:32 Post subject: |
|
|
Thanks a lot for your time.
In post before I tried posted solution and I am stuck on hardware platform and the image cant install to 2GB CF Card. |
|
| Back to top |
|
|
GSutton
Junior
Joined: 30 Oct 2018
Posts: 4
|
| Posted: 20/10/2019 19:57 Post subject: FIELD PG 2005 P4 Recovery CD |
|
|
FIELD PG 2005 P4 Recovery CD
Try to use this CD which is bootable and has WinPE included and latest firmware
https://support.industry.siemens.com/cs/document/109763408/bios-downloads-for-simatic-ipcs-simatic-tablet-pcs-simatic-field-pgs-sinumerik-pcu-and-simotion-p320
Simatic_FIELD_PG_2005_P4_Recovery_CD_1_2_WXPPROISP2_ENG.iso 642.4 MB
| Code: | | https://mega.nz/#!DmIznIJY!hIrUW2xNC3OpFHcC8NWuHkgQWzPIz48Lo4NyA-dlX6o |
or
https://ulozto.net/tam/_SV3KtnSkpRQ4
or
https://letsupload.cc/W2DeN681n2/SIMATIC_IPC427C_HMIIPC477C_HMIIPC477CPRO_HMIIPC577C_V120105_zip
https://letsupload.cc/XaD1N281nc/ENG_106524_htm
https://letsupload.cc/Y7DdN987nb/109756568_Image_and_Partition_Creator_en_pdf
https://letsupload.cc/Z4D5N28cn9/embedded_bundles_ipc_manual_en_US_en-US_pdf
https://letsupload.cc/aeE9N28bnc/opic_ipc-427c_2010-10_en_pdf
https://letsupload.cc/d8E9Nf86n0/opi_ipc-427c_2010-10_en_pdf
https://letsupload.cc/ecEcN18en2/SIMATIC_IPC427D_IPC477D_V170116_zip
https://letsupload.cc/odHfNf81n7/Simatic_FIELD_PG_2005_P4_Recovery_CD_1_2_WXPPROISP2_ENG_iso
How do you perform a Restore on a SIMATIC IPC using a USB stick or SIMATIC USB flash drive?
https://support.industry.siemens.com/cs/document/49651547/how-do-you-perform-a-restore-on-a-simatic-ipc-using-a-usb-stick-or-simatic-usb-flash-drive
you can use
http://plc.myforum.ro/simatic-ipc-image-partition-creator-v341iso-vt7277.html |
|
