SIMATIC Machine Simulator Virtual commissioning of machines
This Getting Started helps you to become familiar with essential steps for performing virtual commissioning with the SIMATIC Machine Simulator based on a specific application example.
The application example in this Getting Started shows the following:
Introduction to virtual commissioning.

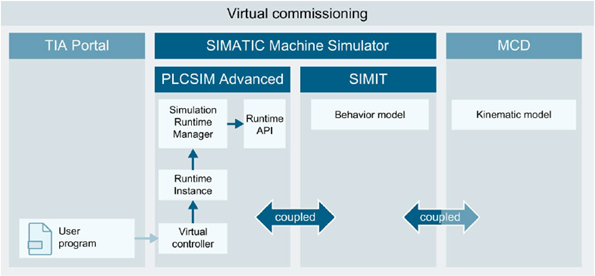

Illustration of coupling and interaction of different programs.
Sample projects for each program which can serve as templates for your own applications.
You gain insights into the functioning of the SIMATIC Machine Simulator and can create your own simulations according to your requirements.

SIMATIC Machine Simulator Virtual commissioning of machines SIMATIC Machine Simulator Virtual commissioning of machines

SIMATIC Machine Simulator Virtual commissioning of machines SIMATIC Machine Simulator Virtual commissioning of machines

Simulation with the SIMATIC Machine Simulator offers significant advantages: You can recognize in a very early development phase whether your machine is behaving the way you want it to. You realize virtual commissioning with the SIMATIC Machine Simulator. You can optimize the machine and its behavior in any number of simulation processes. You can check and optimize the following at an early stage:
Construction of your machine
– Before building or installing a prototype
– While the machine is still set up for a different task
Programming of your user program
Motion sequences of your machine
Interaction of mechanical components, electrical components and software in the machine
Furthermore, you can simulate error scenarios and optimize the behavior in the event of component defects. Commissioning of the real machine is significantly simple
V2.0
Requirements
