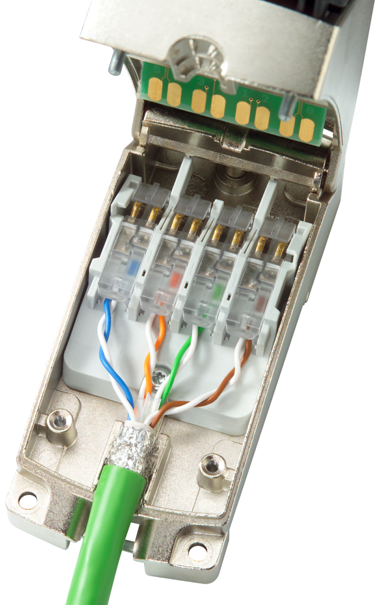

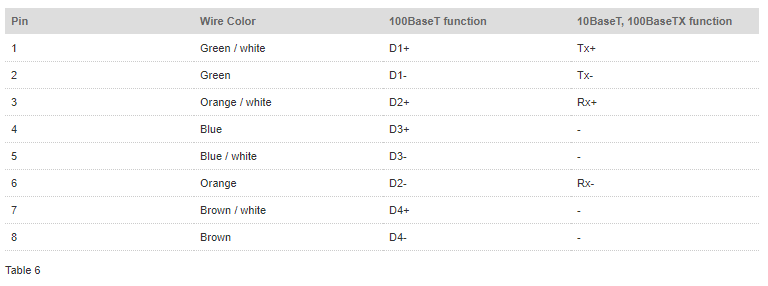

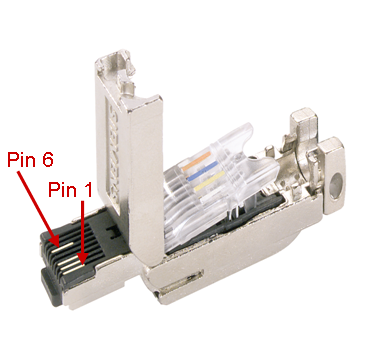

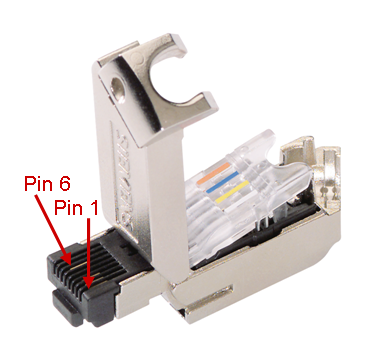

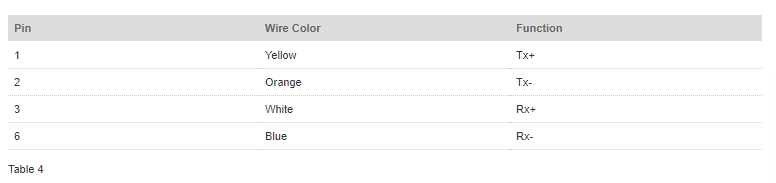

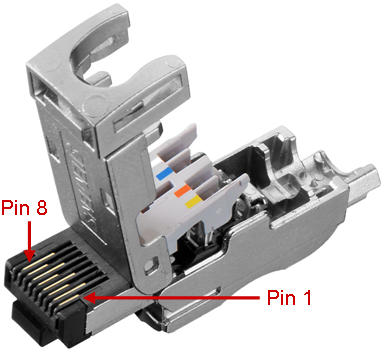

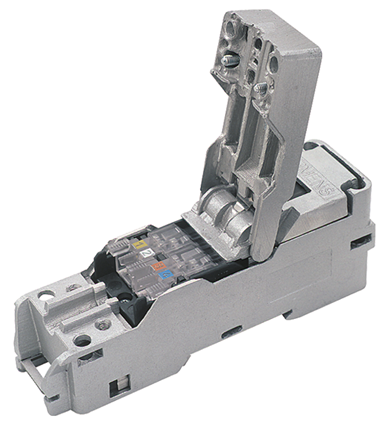

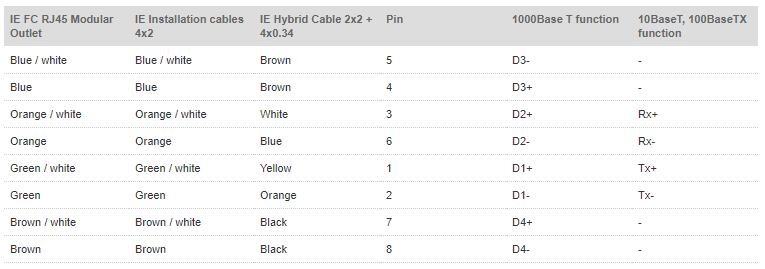

plc.myforum.ro PLCs users www.plc.myforum.ro!    FAQ   Search   Memberlist   Usergroups   Register   Profile   Log in to check your private messages   Log in  Simatic IE FC RJ45 plug pinout          plc.myforum.ro Forum Index -> Cables, Sensors,Transducers ... View previous topic :: View next topic   Author Message gamax Member Joined: 15 Jul 2016 Posts: 131 Posted: 24/03/2021 15:32    Post subject: Simatic IE FC RJ45 plug pinout How are the individual wires of an Industrial Ethernet FC installation cable assigned to the pins on the IE FC RJ45 plug? https://support.industry.siemens.com/cs/document/23067477/ This entry shows how the individual wires of an Industrial Ethernet FC installation cable are assigned to the pins on the following IE FC RJ45 plugs. IE FC RJ45 Plug 2x2 IE FC RJ45 Plug 4x2 IE FC Outlet RJ45 IE FC RJ45 Modular Outlet IE FC RJ45 Plug 2x2 Industrial Ethernet FC RJ45 Plugs 2x2 are for direct connections of up to 100m with IE FC installation cables 2x2 without patch technology. The four integrated cut-and-clamp contacts enable you to make simple and reliable connections of the IE FC installation cables 2x2 (100 Mbit/s). When the housing is opened, color markings on the atingere cover facilitate connection of the wires to the IDC pins. IE FC RJ45 Plug 180 2x2 Fig. 1 Article number 6GK1901-1BB10-2AA0 6GK1901-1BB10-2AB0 6GK1901-1BB10-2AE0 The installation instructions for the IE FC RJ45 Plug 180 are available in the following Entry ID: https://support.industry.siemens.com/cs/document/20691879/ Table 1 IE FC RJ45 Plug 90 2x2 IE FC RJ45 Plug 90 Fig. 2 Article number 6GK1901-1BB20-2AA0 6GK1901-1BB20-2AB0 6GK1901-1BB20-2AE0 The installation instructions for the IE FC RJ45 Plug 90 are available in the following Entry ID: https://support.industry.siemens.com/cs/document/20680671/ Table 2 IE FC RJ45 Plug 145 2x2 Fig. 3 Article number 6GK1901-1BB30-0AA0 6GK1901-1BB30-0AB0 6GK1901-1BB30-0AE0 The installation instructions for the IE FC RJ45 Plug 145 are available in the following Entry ID: https://support.industry.siemens.com/cs/document/36646622/ Table 3 The table below shows the assignment between the pins of an IE FC RJ45 Plug 2x2 and the four colored wires of an IE FC installation cable 2x2 for making uncrossed cables. It is also possible to make crossed cables by swapping the send and receive pairs in a connector. IE FC RJ45 Plug 4x2 Industrial Ethernet FC RJ45 Plugs 4x2 are for direct connections of up to 85m with the IE FC Standard Cable 4x2 (AWG24) and up to 55m with the IE FC Flexible Cable 4x2 (AWG24). The eight integrated cut-and-clamp contacts enable you to make simple and reliable connections of the IE FC installation cables 4x2 and 2x2. When the housing is opened, color markings on the contact cover facilitate connection of the wires to the IDC pins. IE FC RJ45 Plug 180 4x2 Fig. 4 Article number 6GK1901-1BB11-2AA0 6GK1901-1BB11-2AB0 6GK1901-1BB11-2AE0 The installation instructions for the IE FC RJ45 Plug 180 4x2 are available in the following Entry ID: https://support.industry.siemens.com/cs/document/36646477/ Table 5 The table below shows the assignment between the pins of the IE FC RJ45 Plug 4x2 and the eight colored wires of the IE FC installation cable 4x2 for making uncrossed cables. It is also possible to make crossed cables by swapping the send and receive pairs in a connector. IE FC Outlet RJ45 The Industrial Ethernet FC Outlet RJ45 serves as a transition from the rezistent IE FC installation cables 2x2 used in the industrial sector without patch technology to prefabricated TP Cord cables (10/100 Mbit/s) via an RJ45 socket. The four integrated cut-and-clamp contacts enable you to make simple and reliable connections of the IE FC installation cables 2x2 (100 Mbit/s). When the housing is opened, color markings on the contact cover facilitate connection of the wires to the IDC pins. IE FC Outlet RJ45 Fig. 5 Article number 6GK1901-1FC00-0AA0 The installation instructions for the IE FC Outlet RJ45 are available in the following Entry ID: https://support.industry.siemens.com/cs/document/39963678/ Table 7 The table below shows the assignment between the pins of an IE FC Outlet RJ45 and the four colored wires of an IE FC installation cable 2x2. IE FC RJ45 Modular Outlet The Industrial Ethernet FC Modular RJ45 Outlet basic module can be equipped with three different exchangeable inserts as required: IE FC RJ45 Modular Outlet Insert 2FE with 2xRJ45 sockets for 100 Mbit/s systems IE FC RJ45 Modular Outlet Insert 1GE with 1xRJ45 socket for 1000 Mbit/s systems IE FC RJ45 Modular Outlet Power Insert with 1x24V, 1xRJ45 socket for IWLAN system SCALANCE W The Industrial Ethernet FC Modular RJ45 Outlet is for cabling the following: IE FC installation cables 4x2 to be laid as standard type for the IE FC RJ45 Modular Outlet Insert 2FE and Insert 1GE. IE Hybrid Cable 2x2 + 4x0.34 for the IE FC RJ45 Modular Outlet with Power Insert. The eight integrated cut-and-clamp contacts enable you to make simple and reliable connections of the IE FC installation cables 4x2 and the IE Hybrid Cable 2x2 + 4x0.34. When the housing is opened, color markings on the contact cover facilitate connection of the wires to the IDC pins. IE FC R45 Modular Outlet Fig. 6 Article number 6GK1901-1BE00-0AA0 6GK1901-1BE00-0AA1 6GK1901-1BE00-0AA2 6GK1901-1BE00-0AA3 6GK1901-1BK00-0AA1 6GK1901-1BK00-0AA2 The installation instructions for the IE FC RJ45 Modular Outlet with Power Insert are available in the https://support.industry.siemens.com/cs/document/20695652/ Table 9 The table below shows the assignment between the pins of the IE FC RJ45 Modular Outlet and the eight colored wires of the IE FC installation cable 4x2 and the and the IE Hybrid Cable 2x2 + 4x0.34. Download [URL=https://veryfiles.com/7lzjy86u193d]A5E00343974_PI-ModOutl-Power_1204i.pdf - 297 KB[/URL] [URL=https://veryfiles.com/upuo856potrk]FC_Outlet_RJ45_090318.pdf - 530 KB[/URL] [URL=https://veryfiles.com/wxjxw9w680zq]RJ45-180_4x2_dt_en_140123.pdf - 206 KB[/URL] [URL=https://veryfiles.com/97sm7a0qmoaj]171110_A5E00647468_PI_RJ45-145_140123.pdf - 47.2 MB[/URL] [URL=https://veryfiles.com/s2m3fdk9b991]A5E00328643_PI_RJ45-90__100219.pdf - 917 KB[/URL] [URL=https://veryfiles.com/oj537thzkyjf]171110_PI_RJ45-180_de_en.pdf - 33.0 MB[/URL] or https://anonfiles.com/Q083tfmeu1/RJ45-180_4x2_dt_en_140123_pdf https://anonfiles.com/U487t5meu3/A5E00343974_PI-ModOutl-Power_1204i_pdf https://anonfiles.com/Y98ctcm3ua/FC_Outlet_RJ45_090318_pdf https://anonfiles.com/a39bt3mdu6/A5E00328643_PI_RJ45-90_100219_pdf https://anonfiles.com/Y7Adtfm6uc/171110_PI_RJ45-180_de_en_pdf https://anonfiles.com/01B9tbm4u9/171110_A5E00647468_PI_RJ45-145_140123_pdf Back to top Display posts from previous:  Oldest FirstNewest First         plc.myforum.ro Forum Index -> Cables, Sensors,Transducers ... All times are GMT + 2 Hours Page 1 of 1   Jump to: Select a forum PLC's Users International Forum----------------Board RulesPLC TutorialsSIMATIC Automation Systems -Reg.USimatic Automation SystemsLinksGE Fanuc Emerson Reg. UGE Fanuc Emerson ALLEN-BRADLEY(Rockwell Automation) Reg. UALLEN-BRADLEY(Rockwell Automation)OMRON Reg. UOMRONHONEYWELLSchneider_Electric Reg. USchneider ElectricOther PLCs Reg. UOther PLCsSIEMENS SIMATIC HMI- Reg. USIEMENS SIMATIC HMIOther HMI-Reg. UOther HMICNC & Robotics-Reg. UCNC & RoboticsProgramming Reg. UProgrammingAutoCAD Reg. UAutoCADRenewable EnergyBuilding Technology ManagementPLC BooksCables, Sensors,Transducers ...Drives & InvertersSiemens Hardware & SoftwareSafety Military & AerospaceUtilitiesFAQs & NewsJobsDisclaimer Romanian Users Forum----------------ROSIEMENS SIMATIC Automation SystemsROSIEMENS SIMATIC HMIROSimatic ROther PLCsROther HMIBooksROCADRUtilitieseLearningSimulatorsApplication Examples  You cannot post new topics in this forum You cannot reply to topics in this forum You cannot edit your posts in this forum You cannot delete your posts in this forum You cannot vote in polls in this forum Powered by phpBB © 2001, 2005 phpBB Group Fa-ti si tu propriul forum GRATUIT, pe www.myforum.ro
