 Posted: 24/03/2021 14:55 Post subject: Simatic IE FC M12 Plug PRO pinout |
 |
|
How are the individual wires of an Industrial Ethernet FC installation cable assigned to the pins on the IE FC M12 Plug PRO?
https://support.industry.siemens.com/cs/document/108839808/

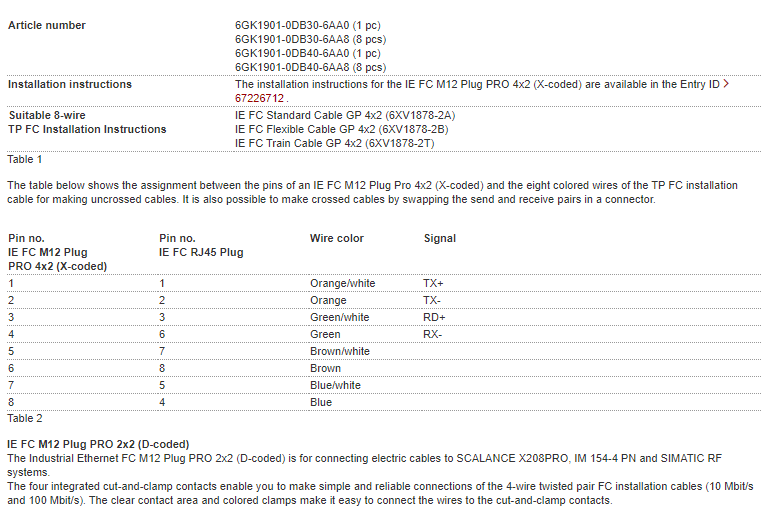

This entry shows how the individual wires of an Industrial Ethernet FC installation cable are assigned to the pins on the following M12 plugs:
IE FC M12 Plug PRO 4x2 (X-coded)
IE FC M12 Plug PRO 2x2 (D-coded)

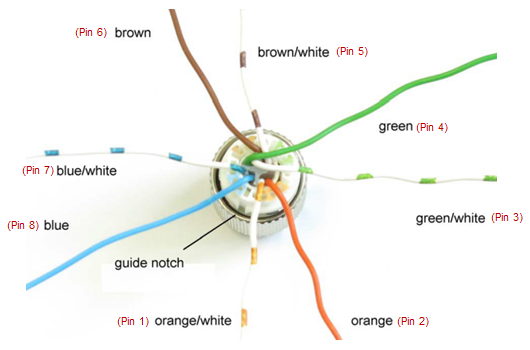

IE FC M12 Plug PRO 4x2 (X-coded)
The Industrial Ethernet FC M12 Plug PRO 4x2 (X-coded) is for connecting electric cables to the gigabit M12 interface of SCALANCE W.
The eight integrated cut-and-clamp contacts enable you to make simple and reliable connections of the 8-wire twisted pair FC installation cables (AWG24). The clear atingere area and colored clamps make it easy to connect the wires to the cut-and-clamp contacts.

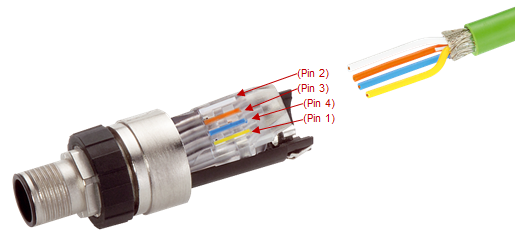

IE FC M12 Plug PRO 2x2 (D-coded)
The Industrial Ethernet FC M12 Plug PRO 2x2 (D-coded) is for connecting electric cables to SCALANCE X208PRO, IM 154-4 PN and SIMATIC RF systems.
The four integrated cut-and-clamp contacts enable you to make simple and reliable connections of the 4-wire twisted pair FC installation cables (10 Mbit/s and 100 Mbit/s). The clear contact area and colored clamps make it easy to connect the wires to the cut-and-clamp contacts.
 |
|
