SIMATIC Flying Splice
https://support.industry.siemens.com/cs/document/109780616/
The SIMATIC application Flying Splice is part of the Converting Toolbox and was developed with the objective to provide common functions which are necessary for any kind of converting machine.

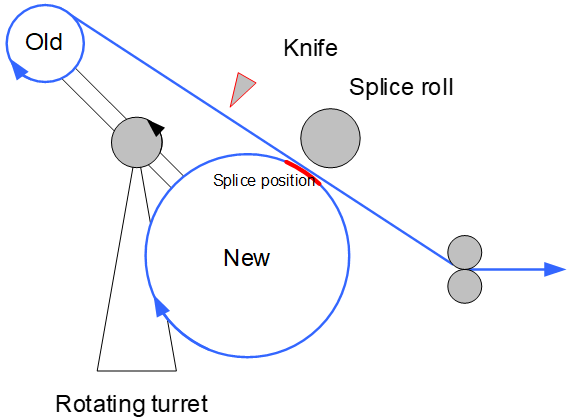

The objective of this application is to splice the material web from the old roll with the material web from the new roll while the winder is operating at its full velocity. The new roll is pressed onto the old material web using a splice roll / bumper roll and the old roll is cut using the knife. After this has been completed, the winding functionality is switched over to the new roll. A solution with a flying splice generally comprises two winders, sensors for the position actual value detection of the adhesive surface and a mechanical system to change the rolls.
SIMATIC Flying Splice SIMATIC Flying Splice

SIMATIC Flying Splice SIMATIC Flying Splice

https://support.industry.siemens.com/cs/attachments/109780616/20200624_Manual_SIMATIC_Splice.pdf
https://support.industry.siemens.com/cs/attachments/109780616/ExampleSplice_V1.0.0_2020-02-18.zap16.zip
https://support.industry.siemens.com/cs/attachments/109780616/LSplice_V1.0.0_2020-02-18.zal16.zip

Libraries and manuals of the component applications
https://support.industry.siemens.com/cs/document/58565043/simatic-winder-and-tension-control

Overview Converting applications
https://support.industry.siemens.com/cs/document/109744606/simotion-simatic-sinamics-converting-toolbox
Download
https://ulozto.net/tamhle/tXClffZXeQtJ

https://bayfiles.com/h953q8C2oa/ScriptDriveConfig_V1_4_1_2_zip
https://bayfiles.com/jc58qaCcoe/SIMITConvertingLib_V100_zip
https://bayfiles.com/l256qfCbo0/Converting_Library_V1.2.0_zip
https://bayfiles.com/n559qbCao7/scl_simatic-converting-toolbox_v1_2_0_zip
https://bayfiles.com/pe54qfCdo8/Changelog_SIMATIC_Converting_Toolbox_S7-300_S7-400_SIMATIC_Manager_en_pdf
https://bayfiles.com/r053q3Caof/SIMIT_Converting_ExampleProject_V100_zip
https://bayfiles.com/t654qfC2o4/Manual_SIMIT_converting_library_V100_pdf
https://bayfiles.com/595fq3C9o2/SIMATIC-Converting-Toolbox-V120_Demo_zip
https://bayfiles.com/H558qfCfoc/Manual_LConAMC_S7-1500T_V301_pdf
https://bayfiles.com/N455q0Cco8/Manual_LConSMC_S7-1500_S7-1500T_V301_pdf
https://bayfiles.com/Te58q9C4od/WinderAMC_V301_zip
https://bayfiles.com/V55fq1Cbo2/ScriptDriveConfig_V1_4_1_1_zip
https://bayfiles.com/Z25fq2Cfob/Manual_SIMATIC_Converting_Toolbox_S7-300_S7-400_SIMATIC_Manager_en_2016-11_pdf
https://bayfiles.com/b160qeCcob/ScriptDriveConfig_V1_4_1_zip
https://bayfiles.com/l861q8C9o0/S7-1200_S7-1500T_zip
https://bayfiles.com/p868qbCfo0/Manual_LCon_S7-1200_S7-1500_S7-1500T_V301_en_pdf
https://bayfiles.com/r762q9C3ob/LSplice_V1.0.0_2020-02-18.zal16_zip
https://bayfiles.com/5363qfCbo2/WinderSMC_V301_200121_zip
https://bayfiles.com/936eqcC4o9/20200624_Manual_SIMATIC_Splice_pdf
https://bayfiles.com/D769q5Cdo9/Manual_LCon_S7-300_S7-400_TIA_PortalV301_en_pdf
https://bayfiles.com/J26aq1Cdoa/ExampleSplice_V1.0.0_2020-02-18.zap16_zip
https://bayfiles.com/N663qcC5oe/23_01_2020_LCon_V301_zip

Draco Malfoy · Junior Joined: 06 Apr 2020 Posts: 2

Hello

All the Links above are brocken.

I need the Converting Library for SIMOTION, i.e. the LConLib or the Applikation "Winder for SIMOTION D".

Thanx in Advance
